| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Breakdown Voltage: | Min. 950V | Number Of Strands: | 84 |
|---|---|---|---|
| Jacket: | Real Silk | Theraml Grade: | 155 |
| Key Word: | Custom Natural Silk Serving Copper Litz Wire 0.071mm*84 | Conductor Material: | Copper |
| Product Name: | Custom Natural Silk Serving Copper Litz Wire 0.071mm*84 | Single Wire: | 0.071mm |
| Highlight: | 84 copper litz wire,0.071mm copper litz wire,Natural Silk Serving Copper Litz Wire |
||

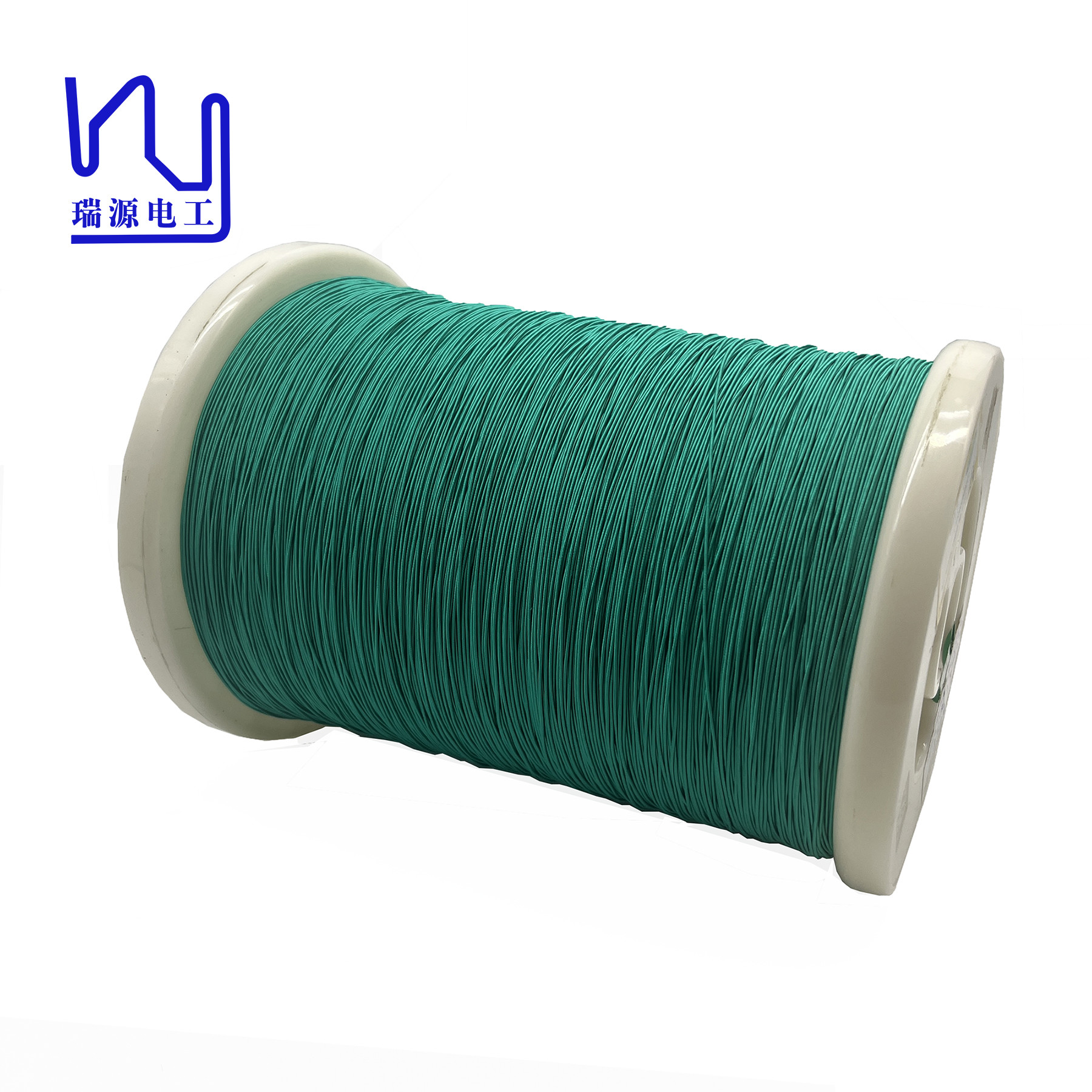

Custom natural silk serving copper litz wire 0.071mm*84
One of the main advantages of silk covered litz wire is its excellent electrical properties. Using ultra fine enameled copper wire, multi-stranded to ensure low resistance and excellent conductive properties. This reduces signal loss and improves signal integrity, making it ideal for high-fidelity audio applications.
Additionally, the natural silk covering provides excellent insulation, protecting the wires from external interference and ensuring reliable performance in demanding audio environments.
| Item | Technical requests | Sample 1 | Sample 2 |
| Single wire diameter mm | 0.077-0.084 | 0.078 | 0.084 |
| Conductor Diameter mm | 0.071±0.003 | 0.068 | 0.070 |
| O.D. mm | Max.0.97 | 0.80 | 0.87 |
| Pitch | 29±5 | √ | √ |
| Resistance Ω/m(20℃) | 0.05940 | 0.05337 | 0.05340 |
| Breakdown Voltage V | Min.950 | 3000 | 3300 |
| Pinhole | 40 faults/5m | 7 | 8 |
| Solerability | 390 ±5C° 6s | ok | ok |
| key word | Green color real silk covered litz wire 0.071mm*84 copper conductor For high-end Audio | |||
