| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Breakdown Voltage: | Min. 950V | Number Of Strands: | 84 |
|---|---|---|---|
| Jacket: | Real Silk | Theraml Grade: | 155 |
| Key Word: | Green Color Real Silk Covered Litz Wire 0.071mm*84 Copper Conductor For High-end Audio | Conductor Material: | Copper |
| Product Name: | Green Color Real Silk Covered Litz Wire 0.071mm*84 Copper Conductor For High-end Audio | Single Wire: | 0.071mm |
| Highlight: | Green color covered litz wire,0.071mm*84 covered litz wire,Green Real Silk Covered Litz Wire |
||

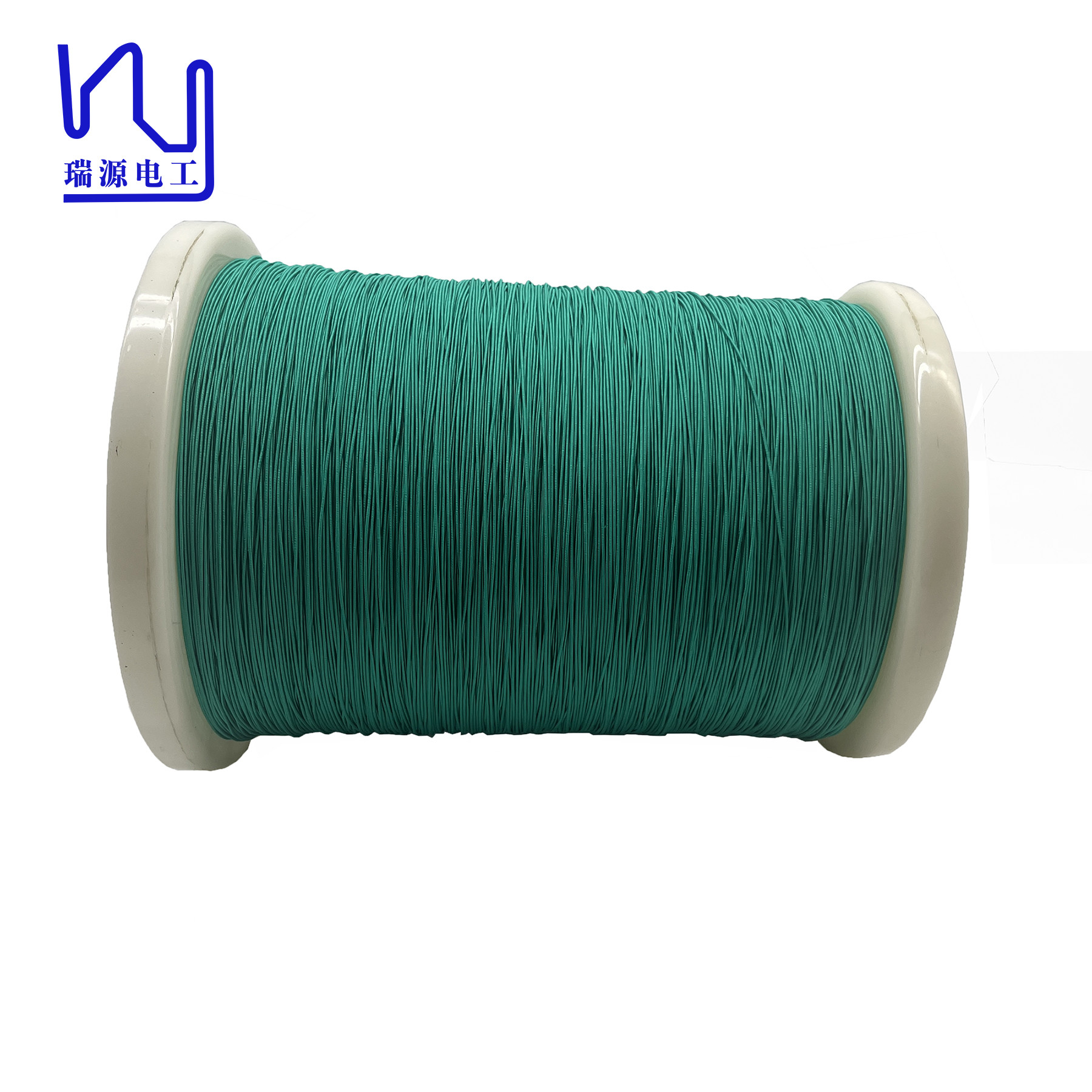

Green color real silk covered litz wire 0.071mm*84 copper conductor For high-end Audio
Silk covered litz wire is a special type of copper wire that is popular in the audio industry due to its unique properties and superior performance. Unlike traditional litz wire, which is typically covered with nylon or polyester yarn, silk covered litz wire has a luxurious outer layer made of natural silk. This innovative approach not only enhances the cable's aesthetics, but also provides a range of benefits that make it ideal for high-end audio products.
| Item | Technical requests | Sample 1 | Sample 2 |
| Single wire diameter mm | 0.077-0.084 | 0.078 | 0.084 |
| Conductor Diameter mm | 0.071±0.003 | 0.068 | 0.070 |
| O.D. mm | Max.0.97 | 0.80 | 0.87 |
| Pitch | 29±5 | √ | √ |
| Resistance Ω/m(20℃) | 0.05940 | 0.05337 | 0.05340 |
| Breakdown Voltage V | Min.950 | 3000 | 3300 |
| Pinhole | 40 faults/5m | 7 | 8 |
| Solerability | 390 ±5C° 6s | ok | ok |
| key word | Green color real silk covered litz wire 0.071mm*84 copper conductor For high-end Audio | |||
