| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Breakdown Voltage: | 2000V | Number Of Strands: | 105 |
|---|---|---|---|
| Jacket: | Nylon/polyester/real Silk | Theraml Grade: | 155 |
| Key Word: | 40AWG 0.08mmX105 Nylon Serving Litz Wire For HF Transformer | Conductor Material: | Copper |
| Product Name: | 40AWG 0.08mmX105 Nylon Serving Litz Wire For HF Transformer | Single Wire: | 0.08mm |
| Highlight: | 0.08mmX105 Nylon Serving Litz Wire,40AWG Nylon Serving Litz Wire,HF Transformer Nylon Serving Litz Wire |
||

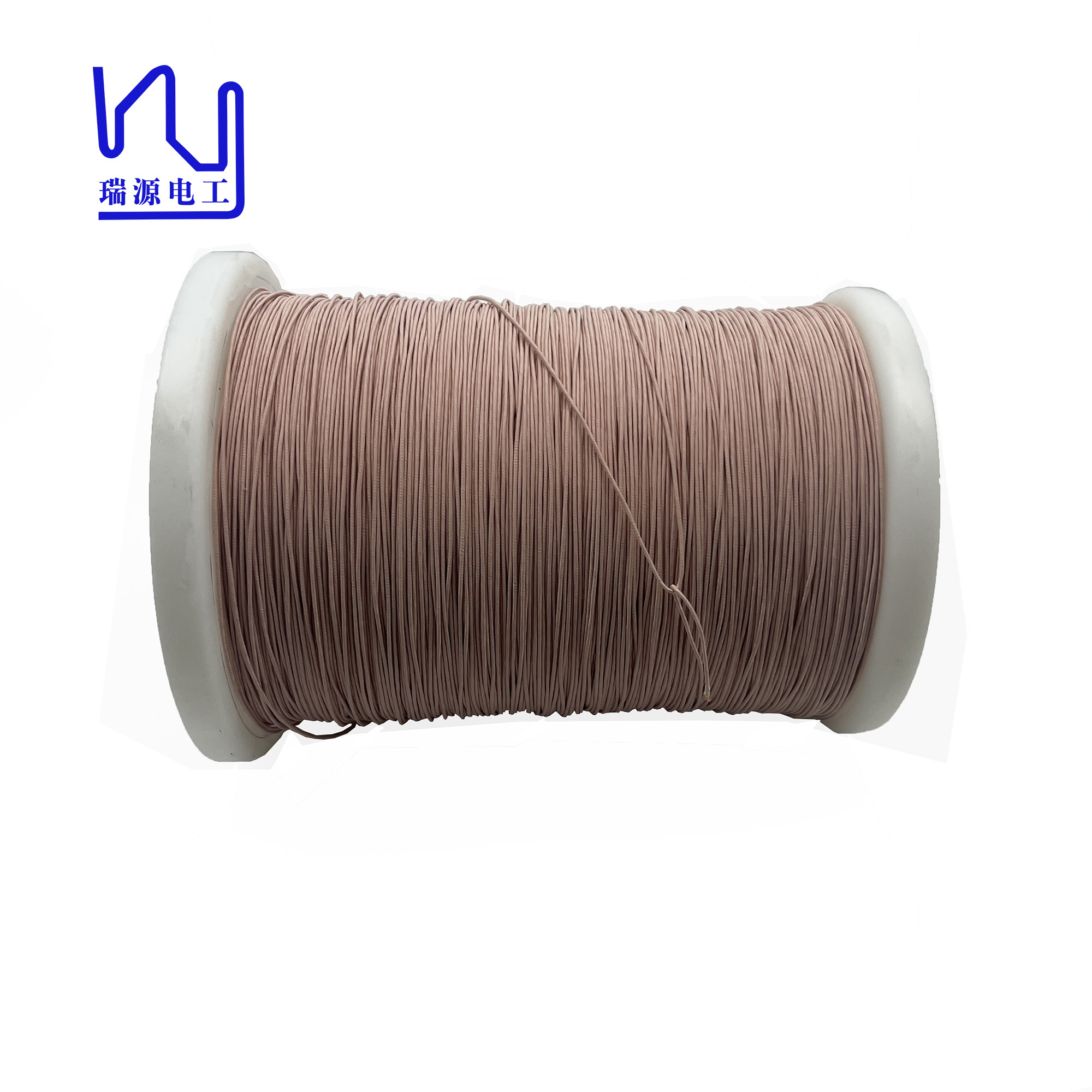

40AWG 0.08mmX105 Nylon Serving Litz Wire For HF Transformer
The use of nylon and polyester materials in the wire construction provides excellent insulation and protection. The silk covering further enhances the wire's durability and high temperature resistance, making it suitable for demanding applications in motors and transformers.
| Product name: |
40AWG 0.08mmX105 Nylon Serving Litz Wire For HF Transformer |
|||
| Item | Unit | Technical requests | Sample 1 | Sample 2 |
| Conductor Diameter | mm | 0.08±0.003 | 0.078 | 0.080 |
| Single wire diameter | mm | 0.091-0.120 | 0.098 | 0.100 |
| O.D. | mm | Max.1.39 | 1.09 | 1.21 |
| Resistance (20℃) | Ω/m | Max.0.03595 | 0.03308 | 0.03310 |
| Breakdown Voltage | V | Min.2000 | 5400 | 4600 |
| Pitch | mm | 29±5 | ok | ok |
| No. of strands | 105 | ok | ok | |
