| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Breakdown Voltage: | 2000V | Number Of Strands: | 105 |
|---|---|---|---|
| Jacket: | Nylon/polyester/real Silk | Theraml Grade: | 155 |
| Key Word: | Class 155 Litz Wire 0.08mm*105 Silk Covered Copper Conductor For Motor Windings | Conductor Material: | Copper |
| Product Name: | Class 155 Litz Wire 0.08mm*105 Silk Covered Copper Conductor For Motor Windings | Single Wire: | 0.08mm |
| Highlight: | 0.08mm*105 Class 155 Litz Wire,0.08mm Class 155 Litz Wire,Motor Windings Class 155 Litz Wire |
||

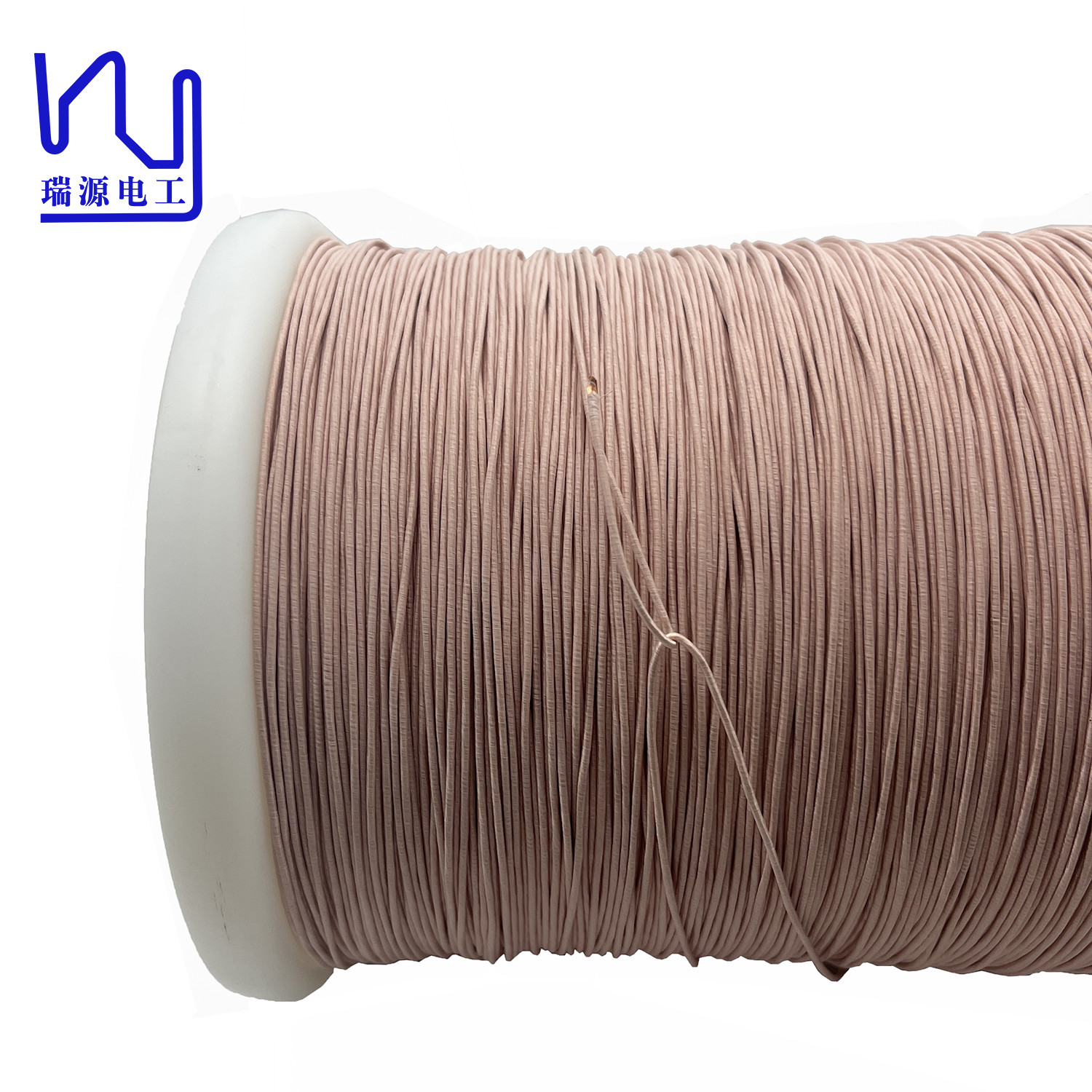

Class 155 Litz Wire 0.08mm*105 Silk Covered Copper Conductor For Motor Windings
Ruiyuan Company specializes in the customization of silk covered litz wire, offering a range of options to meet specific requirements.
The single wire diameter is 0.08mm, 105 strands, and the temperature resistance level is 155. In addition, higher grade 180 wire covered litz wire is available for applications requiring high temperature resistance.
| Product name: |
Class 155 Litz Wire 0.08mm*105 Silk Covered Copper Conductor For Motor Windings |
|||
| Item | Unit | Technical requests | Sample 1 | Sample 2 |
| Conductor Diameter | mm | 0.08±0.003 | 0.078 | 0.080 |
| Single wire diameter | mm | 0.091-0.120 | 0.098 | 0.100 |
| O.D. | mm | Max.1.39 | 1.09 | 1.21 |
| Resistance (20℃) | Ω/m | Max.0.03595 | 0.03308 | 0.03310 |
| Breakdown Voltage | V | Min.2000 | 5400 | 4600 |
| Pitch | mm | 29±5 | ok | ok |
| No. of strands | 105 | ok | ok | |
