| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Number Of Strands: | 60 | Conductor Material: | Copper |
|---|---|---|---|
| Theraml Grade: | 155 | Single Wire: | 0.05mm |
| Key Word: | Ustc Litz Wire With 1300V Breakdown Voltage 0.05mm *60 Copper Conductor Material | Jacket: | Nylon/polyester/real Silk |
| Product Name: | Ustc Litz Wire With 1300V Breakdown Voltage 0.05mm *60 Copper Conductor Material | Breakdown Voltage: | 1300V |
| Highlight: | 0.05mm Ustc Litz Wire,Copper Conductor Material Ustc Litz Wire,1300V Ustc Litz Wire |
||

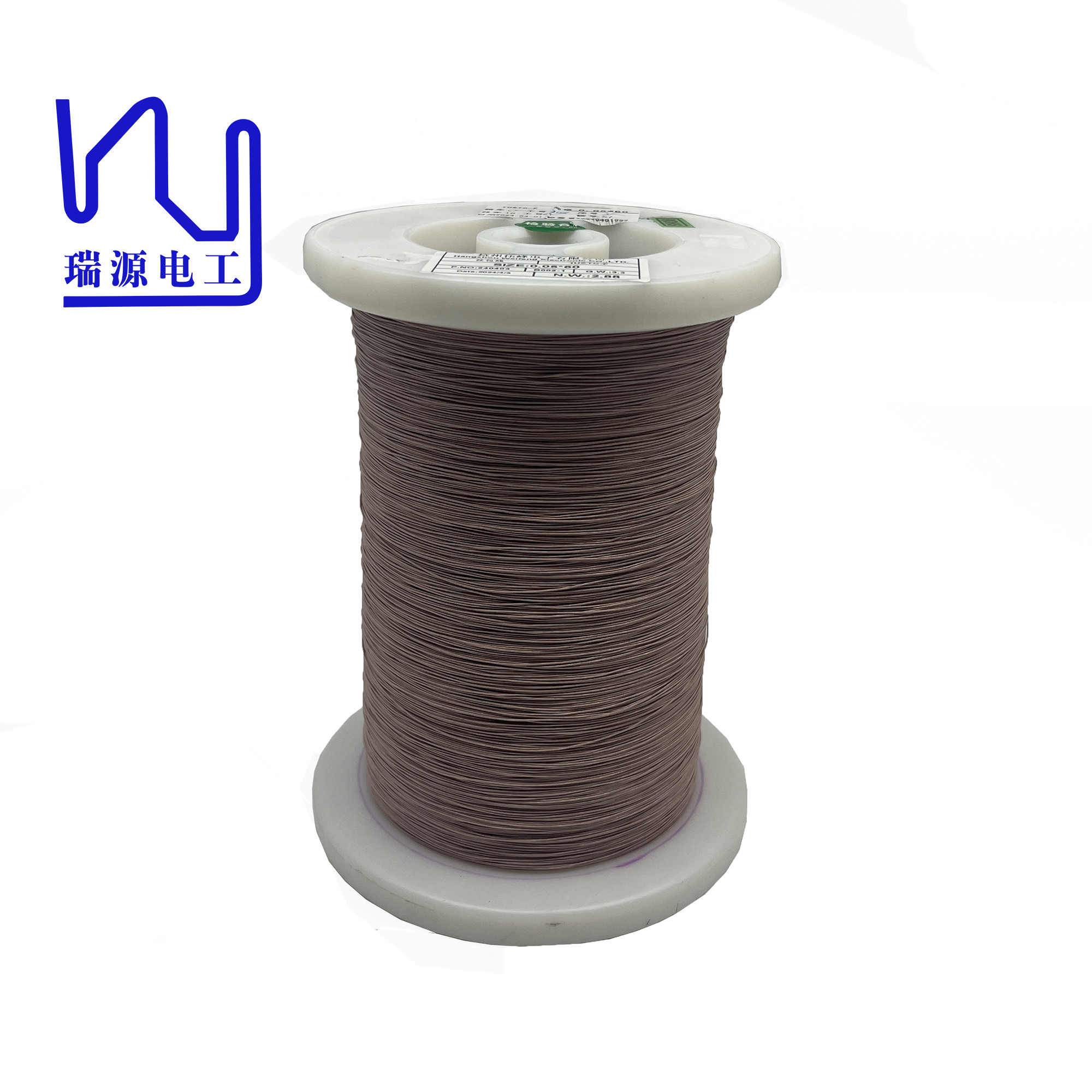

Ustc Litz Wire with 1300V Breakdown voltage 0.05mm *60 Copper Conductor Material
In the industrial sector, silk covered litz wire has proven to be a valuable asset due to its high frequency effect. The wire's design contains multiple individually insulated strands, which reduces the skin effect and ensures that current is evenly distributed throughout the wire. This property makes silk covered litz wire an excellent choice for applications requiring high-frequency signals, such as inductors, transformers and other electronic components used in industrial machinery and equipment.
|
Item |
Technical requests |
Test value 1 |
Test value 2 |
|
Conductor Diameter (mm) |
0.05±0.003 |
0.048 |
0.050 |
|
Single wire diameter (mm) |
0.060-0.086 |
0.063 |
0.065 |
|
O.D. (mm) |
Max. 0.69 |
0.57 |
0.60 |
|
Resistance Ω/m (20℃) |
Max. 0.1707 |
0.1503 |
0.1513 |
|
Breakdown Voltage V |
1300 |
3300 |
3200 |
|
Pitch mm |
27 ± 5 |
√ |
√ |
|
No. of strands |
60 |
√ |
√ |
