| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Product Name: | Voltage 1300V Ustc Litz Wire 60 Strands 0.05mm Silk Jacket Thermal Grade 155 | Jacket: | Nylon/polyester/real Silk |
|---|---|---|---|
| Number Of Strands: | 60 | Single Wire: | 0.05mm |
| Breakdown Voltage: | 1300V | Theraml Grade: | 155 |
| Key Word: | Voltage 1300V Ustc Litz Wire 60 Strands 0.05mm Silk Jacket Thermal Grade 155 | Conductor Material: | Copper |
| Highlight: | Thermal Grade 155 Ustc Litz Wire,0.05mm Ustc Litz Wire,60 Strands Ustc Litz Wire |
||

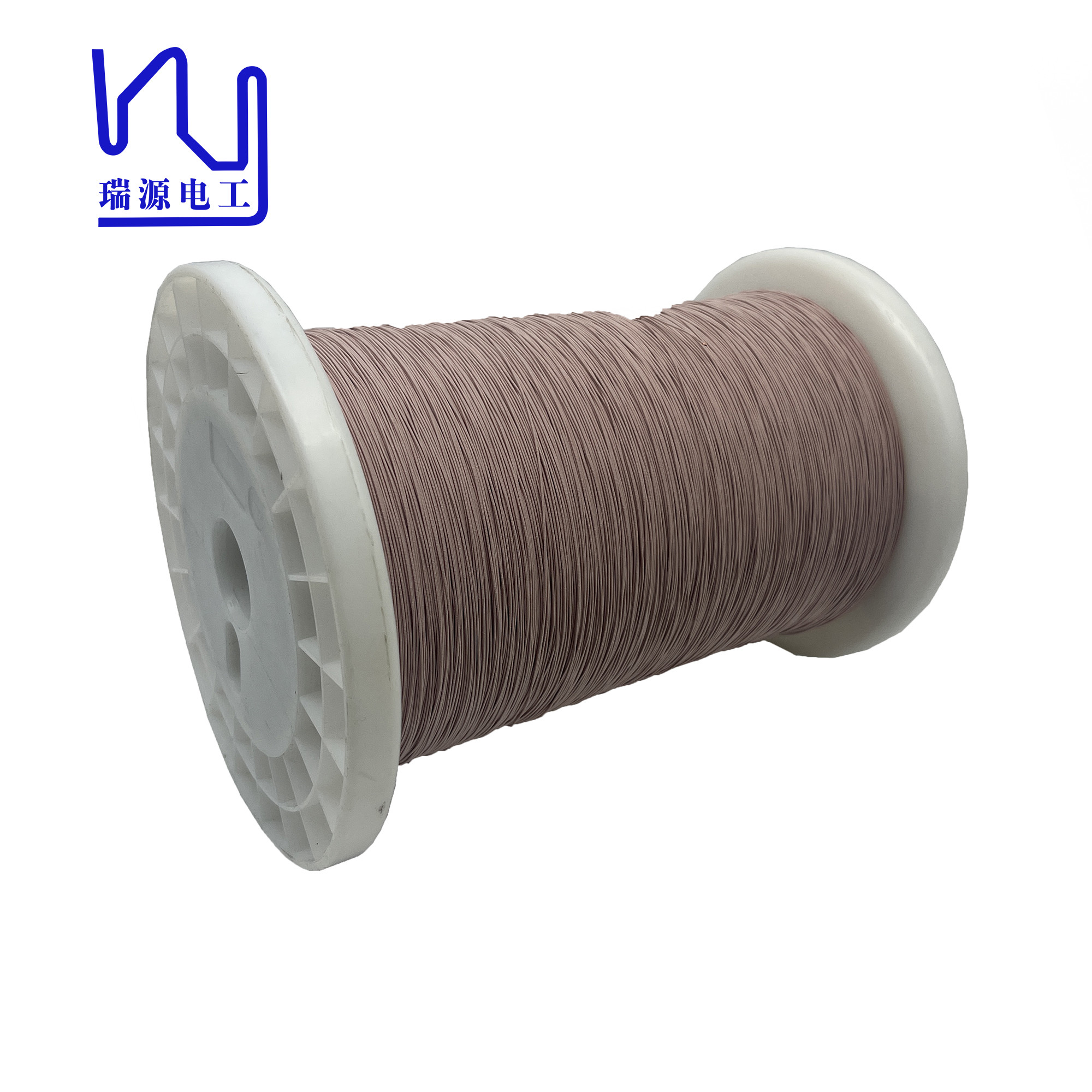

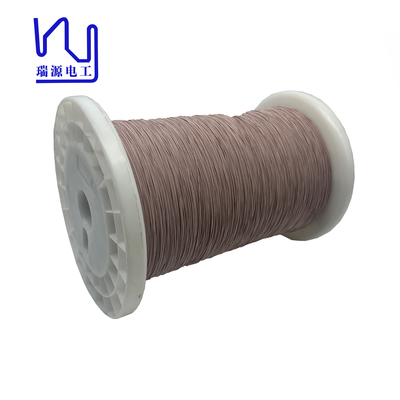

Voltage 1300V Ustc Litz Wire 60 Strands 0.05mm Silk Jacket Thermal Grade 155
For motors and transformers, silk covered litz wire offers unparalleled performance. The unique construction of this wire, typically composed of multiple strands of enameled wire, provides excellent electrical conductivity and minimizes skin effect, making it ideal for winding coils in motors and transformers.
|
Item |
Technical requests |
Test value 1 |
Test value 2 |
|
Conductor Diameter (mm) |
0.05±0.003 |
0.048 |
0.050 |
|
Single wire diameter (mm) |
0.060-0.086 |
0.063 |
0.065 |
|
O.D. (mm) |
Max. 0.69 |
0.57 |
0.60 |
|
Resistance Ω/m (20℃) |
Max. 0.1707 |
0.1503 |
0.1513 |
|
Breakdown Voltage V |
1300 |
3300 |
3200 |
|
Pitch mm |
27 ± 5 |
√ |
√ |
|
No. of strands |
60 |
√ |
√ |
