| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Key Word: | Efficiency Copper Litz Wire 60 Strands Nylon/Polyester/Real Silk Jacket 0.05mm Single Wire | Jacket: | Nylon/polyester/real Silk |
|---|---|---|---|
| Single Wire: | 0.05mm | Theraml Grade: | 155 |
| Product Name: | Efficiency Copper Litz Wire 60 Strands Nylon/Polyester/Real Silk Jacket 0.05mm Single Wire | Breakdown Voltage: | 1300V |
| Number Of Strands: | 60 | Conductor Material: | Copper |
| Highlight: | 0.05mm Efficiency copper litz Wire,60 Strands Efficiency copper litz Wire,Real Silk Jacket Copper Litz Wire |
||

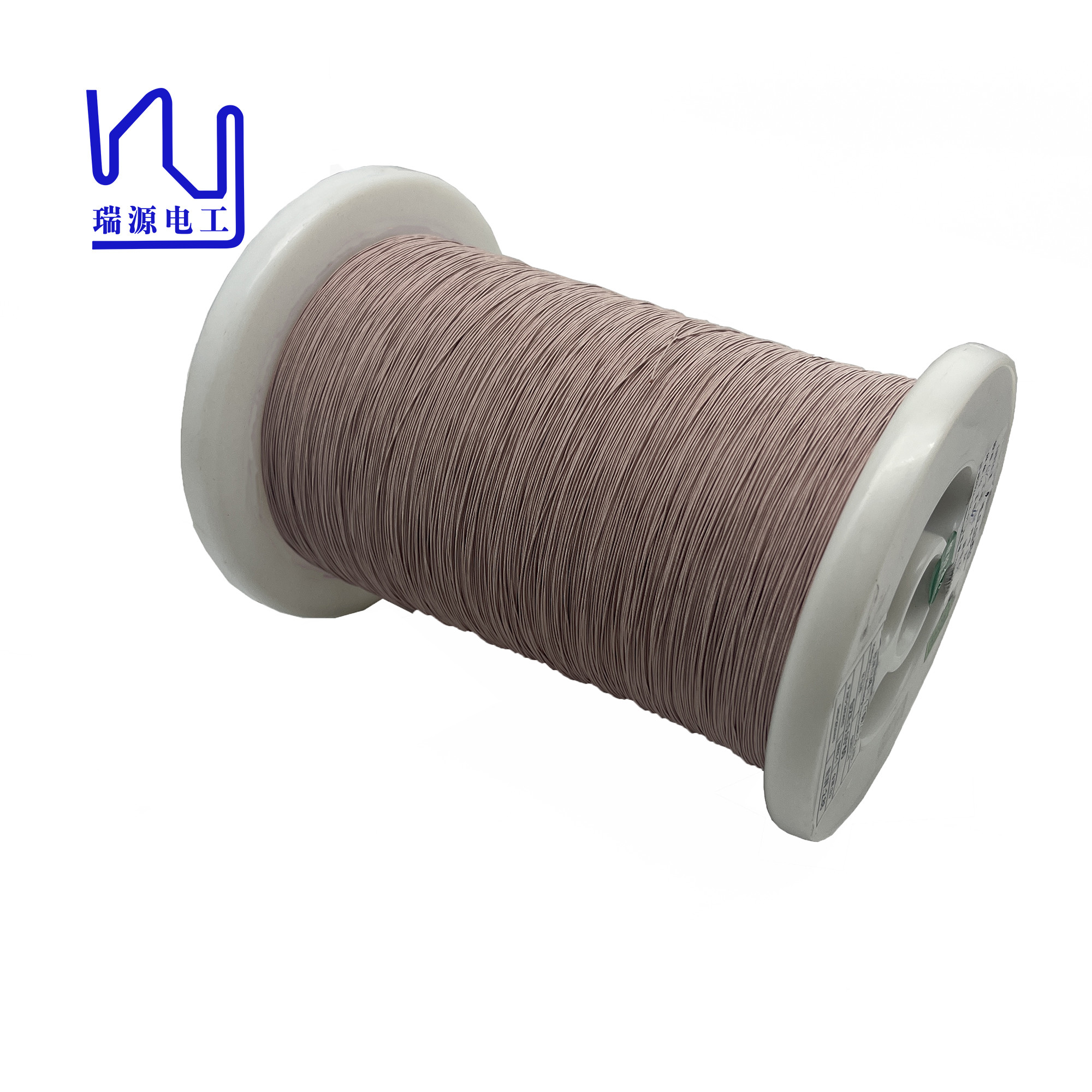

Efficiency copper litz wire 60 Strands Nylon/Polyester/Real Silk Jacket 0.05mm Single Wire
Using silk covered litz wire in these applications ensures even current distribution, reduces power losses and increases the overall efficiency of the motor or transformer. Additionally, the wire's ability to withstand high-frequency currents makes it a first choice for high-performance motors and transformers used in industrial and commercial environments.
|
Item |
Technical requests |
Test value 1 |
Test value 2 |
|
Conductor Diameter (mm) |
0.05±0.003 |
0.048 |
0.050 |
|
Single wire diameter (mm) |
0.060-0.086 |
0.063 |
0.065 |
|
O.D. (mm) |
Max. 0.69 |
0.57 |
0.60 |
|
Resistance Ω/m (20℃) |
Max. 0.1707 |
0.1503 |
0.1513 |
|
Breakdown Voltage V |
1300 |
3300 |
3200 |
|
Pitch mm |
27 ± 5 |
√ |
√ |
|
No. of strands |
60 |
√ |
√ |
