| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Conductor Material: | Copper | Jacket: | Nylon/polyester/real Silk |
|---|---|---|---|
| Theraml Grade: | 155 | Breakdown Voltage: | 1300V |
| Single Wire: | 0.05mm | Product Name: | Nylon Silk Covered Litz Wire Copper Litz Wire 0.05mm Single Wire 60 Strands Copper Conductor |
| Number Of Strands: | 60 | Key Word: | Nylon Silk Covered Litz Wire Copper Litz Wire 0.05mm Single Wire 60 Strands Copper Conductor |
| Highlight: | 60 Strands Covered Litz Wire,Copper Conductor Covered Litz Wire,0.05mm Covered Litz Wire |
||

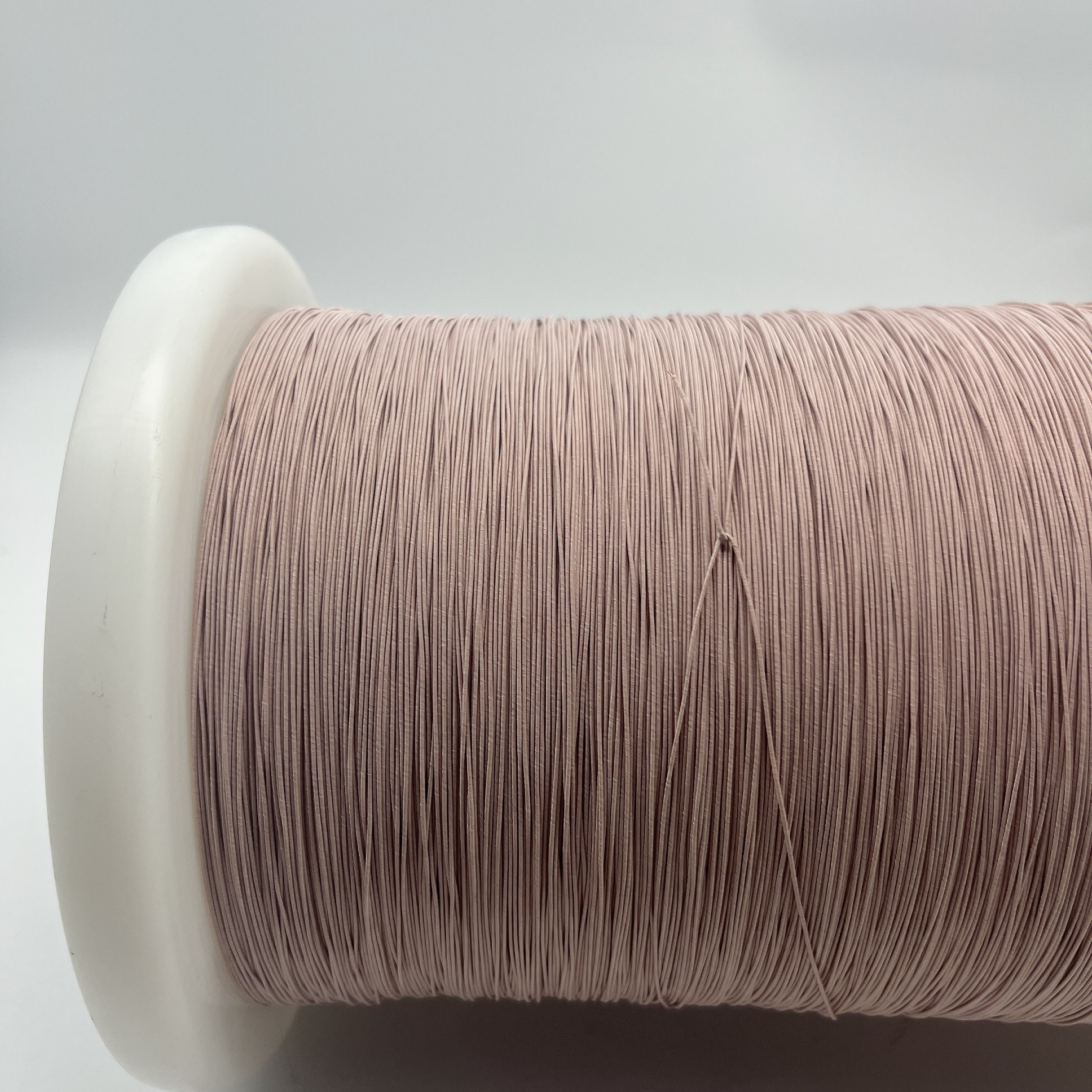

Nylon Silk Covered Litz Wire Copper Litz Wire 0.05mm Single Wire 60 Strands Copper Conductor
This custom silk covered litz wire features enameled strands and a polyester jacket to provide superior performance in high frequency applications. Using enameled copper wire with a thicker thickness as a single wire, combined with a diameter of 0.05mm and 60 strands, the wire can withstand voltage levels up to 1300V. Additionally, the cover materials can be customized to specific requirements, including options such as polyester, nylon, and real silk.
|
Item |
Technical requests |
Test value 1 |
Test value 2 |
|
Conductor Diameter (mm) |
0.05±0.003 |
0.048 |
0.050 |
|
Single wire diameter (mm) |
0.060-0.086 |
0.063 |
0.065 |
|
O.D. (mm) |
Max. 0.69 |
0.57 |
0.60 |
|
Resistance Ω/m (20℃) |
Max. 0.1707 |
0.1503 |
0.1513 |
|
Breakdown Voltage V |
1300 |
3300 |
3200 |
|
Pitch mm |
27 ± 5 |
√ |
√ |
|
No. of strands |
60 |
√ |
√ |
