| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.05mm | Number Of Strands: | 60 |
|---|---|---|---|
| Theraml Grade: | 155 | Breakdown Voltage: | 1300V |
| Key Word: | Copper Litz Wire 60 Strands 0.05mm Nylon/Polyester Jacket 155 Grade | Jacket: | Nylon/polyester/real Silk |
| Product Name: | Copper Litz Wire 60 Strands 0.05mm Nylon/Polyester Jacket 155 Grade | Conductor Material: | Copper |
| Highlight: | Polyester Jacket Copper Litz Wire,155 Grade Copper Litz Wire,0.05mm Copper Litz Wire |
||

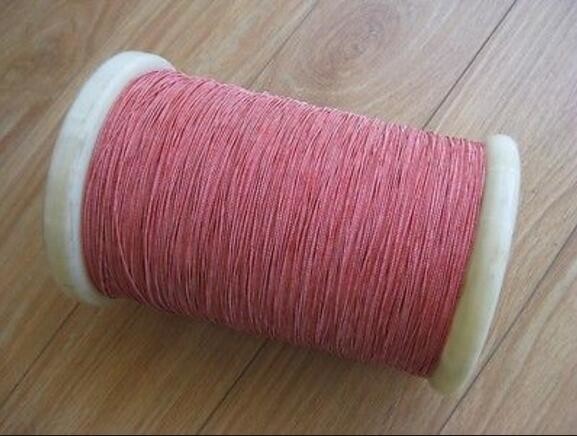

Copper Litz Wire 60 Strands 0.05mm Nylon/Polyester Jacket 155 Grade
Silk covered litz wire is a valuable asset in industrial areas, motor and transformer applications, and wireless charging systems. Its ability to minimize skin effect and handle high-frequency currents with minimal power loss makes it an important component of high-performance electronic systems. With its customizable features and superior performance, silk covered litz wire will continue to make significant contributions to various industrial and technological advancements.
|
Item |
Technical requests |
Test value 1 |
Test value 2 |
|
Conductor Diameter (mm) |
0.05±0.003 |
0.048 |
0.050 |
|
Single wire diameter (mm) |
0.060-0.086 |
0.063 |
0.065 |
|
O.D. (mm) |
Max. 0.69 |
0.57 |
0.60 |
|
Resistance Ω/m (20℃) |
Max. 0.1707 |
0.1503 |
0.1513 |
|
Breakdown Voltage V |
1300 |
3300 |
3200 |
|
Pitch mm |
27 ± 5 |
√ |
√ |
|
No. of strands |
60 |
√ |
√ |
