| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Breakdown Voltage: | 1300V | Number Of Strands: | 60 |
|---|---|---|---|
| Jacket: | Nylon/polyester/real Silk | Theraml Grade: | 155 |
| Key Word: | Copper Ustc Litz Wire 0.05mm Single Wire 1300V For Wireless Charger | Conductor Material: | Copper |
| Product Name: | Copper Ustc Litz Wire 0.05mm Single Wire 1300V For Wireless Charger | Single Wire: | 0.05mm |
| Highlight: | Wireless charger Ustc Litz Wire,0.05mm Ustc Litz Wire,1300V Ustc Litz Wire |
||

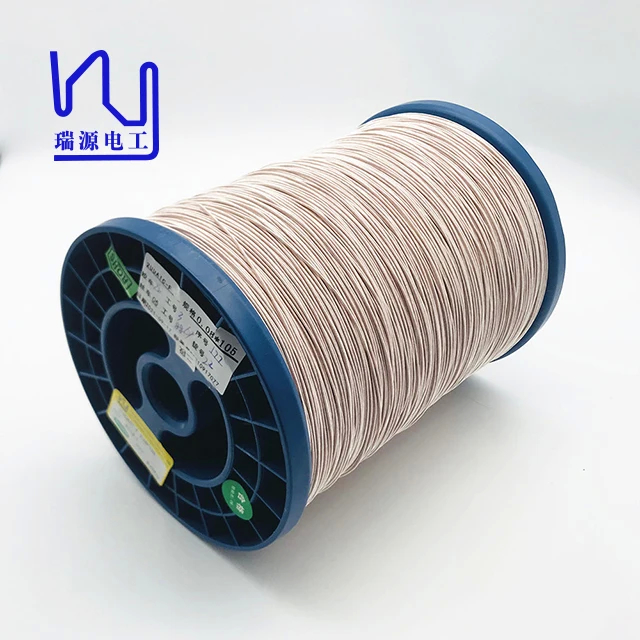

Copper Ustc Litz Wire 0.05mm Single Wire 1300V For Wireless charger
Using enameled copper wire with a thicker thickness as a single wire, combined with a diameter of 0.05mm and 60 strands, the wire can withstand voltage levels up to 1300V. Additionally, the cover materials can be customized to specific requirements, including options such as polyester, nylon, and real silk.
Silk covered litz wire is a valuable asset in industrial areas, motor and transformer applications, and wireless charging systems. Its ability to minimize skin effect and handle high-frequency currents with minimal power loss makes it an important component of high-performance electronic systems.
|
Item |
Technical requests |
Test value 1 |
Test value 2 |
|
Conductor Diameter (mm) |
0.05±0.003 |
0.048 |
0.050 |
|
Single wire diameter (mm) |
0.060-0.086 |
0.063 |
0.065 |
|
O.D. (mm) |
Max. 0.69 |
0.57 |
0.60 |
|
Resistance Ω/m (20℃) |
Max. 0.1707 |
0.1503 |
0.1513 |
|
Breakdown Voltage V |
1300 |
3300 |
3200 |
|
Pitch mm |
27 ± 5 |
√ |
√ |
|
No. of strands |
60 |
√ |
√ |
