| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Key Word: | 155 Thermal Grade 0.05mm * 60 Silk Covered Litz Wire With Nylon/Polyester/Real Silk Jacket | Single Wire: | 0.05mm |
|---|---|---|---|
| Breakdown Voltage: | 1300V | Theraml Grade: | 155 |
| Jacket: | Nylon/polyester/real Silk | Conductor Material: | Copper |
| Product Name: | 155 Thermal Grade 0.05mm * 60 Silk Covered Litz Wire With Nylon/Polyester/Real Silk Jacket | Number Of Strands: | 60 |
| Highlight: | Polyester Jacket Copper Litz Wire,1300V Copper Litz Wire,155 Thermal Grade Copper Litz Wire |
||

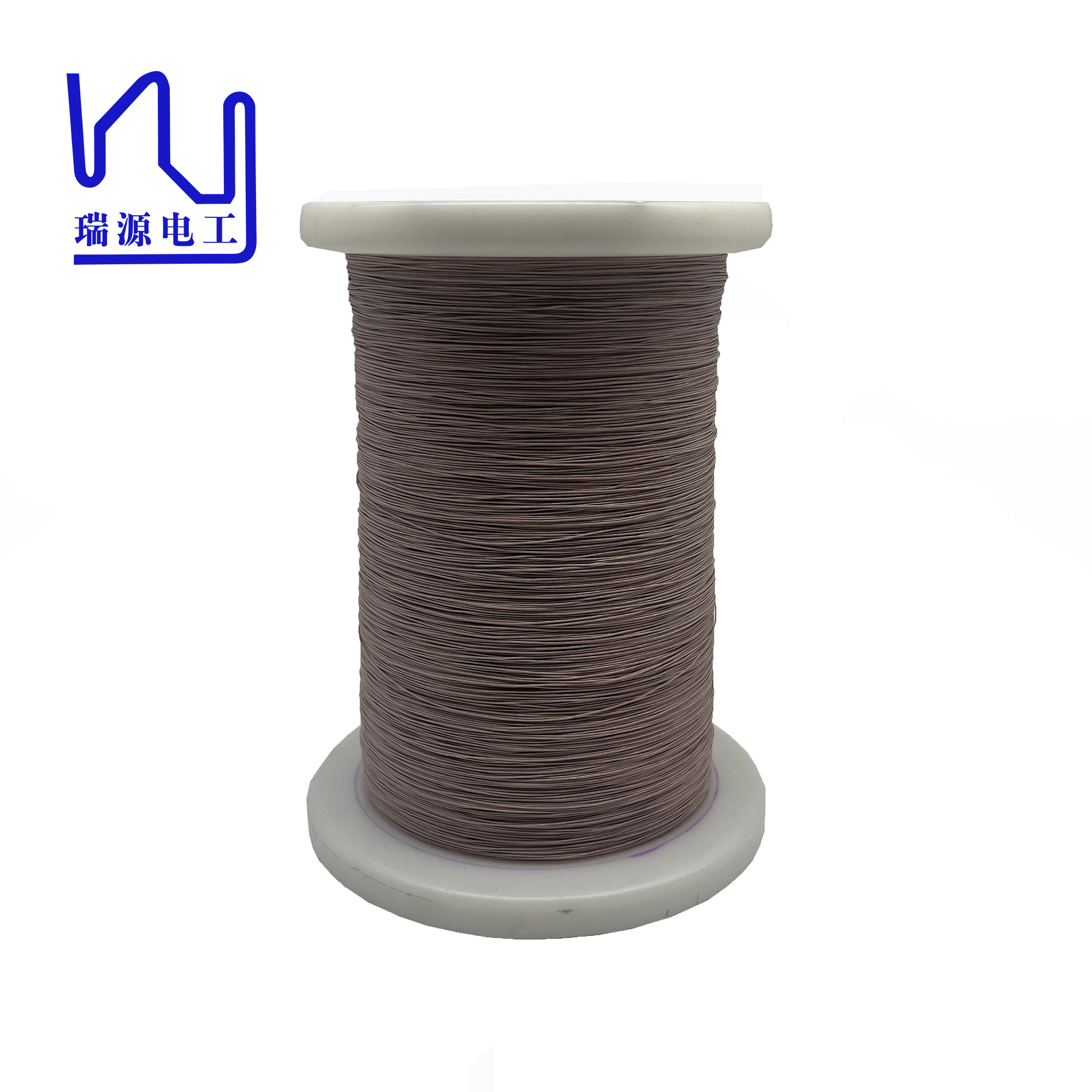

155 Thermal Grade 0.05mm * 60 Silk Covered Litz Wire with Nylon/Polyester/Real Silk Jacket
Silk covered litz wire is a special type of litz wire that has gained widespread attention in various industrial applications. This unique litz wire is designed to provide superior performance in high frequency environments, making it ideal for a variety of industrial needs. One of the main advantages of silk covered litz wire is its ability to minimize the skin effect, which is critical for applications involving high-frequency signals.
|
Item |
Technical requests |
Test value 1 |
Test value 2 |
|
Conductor Diameter (mm) |
0.05±0.003 |
0.048 |
0.050 |
|
Single wire diameter (mm) |
0.060-0.086 |
0.063 |
0.065 |
|
O.D. (mm) |
Max. 0.69 |
0.57 |
0.60 |
|
Resistance Ω/m (20℃) |
Max. 0.1707 |
0.1503 |
0.1513 |
|
Breakdown Voltage V |
1300 |
3300 |
3200 |
|
Pitch mm |
27 ± 5 |
√ |
√ |
|
No. of strands |
60 |
√ |
√ |
