| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Key Word: | Silk Jacketed Copper Litz Wire 460 Strands 0.1mm Copper Conductor 155.C Temperature Rated | Rated Temperature: | 155 |
|---|---|---|---|
| Jacket: | Dacron/Nylon/natural Silk | Number Of Strands: | 460 |
| Insulation: | UEW | Conductor Material: | Copper |
| Single Wire: | 0.1mm | Breakdown Voltage: | 2700V |
| Highlight: | 155.C Copper litz wire,0.1mm Copper litz wire,460 Strands Copper litz wire |
||

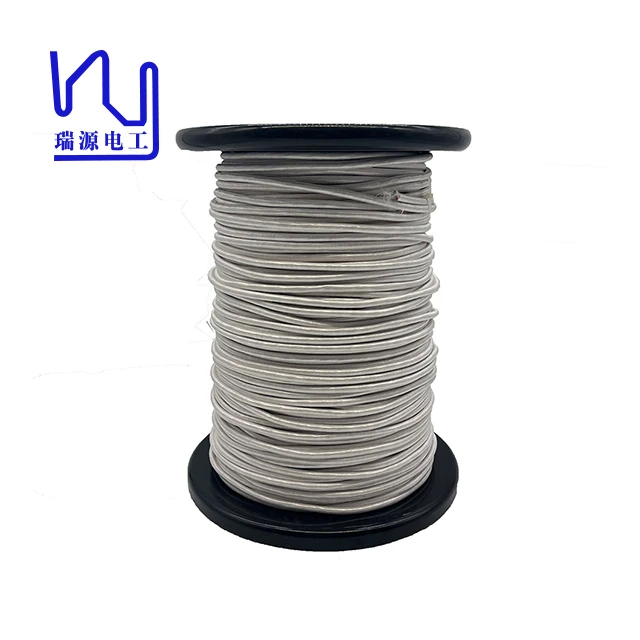

Silk Jacketed copper litz wire 460 Strands 0.1mm Copper Conductor 155.C Temperature Rated
The Ruiyuan USTC litz wire is a premium grade, silk covered litz wire, designed to meet the rigorous requirements of applications demanding high-quality electrical conductors. Manufactured with precision in China, this model boasts a breakdown voltage of 2700V and an intricate construction of 460 strands of 0.1mm single copper wire, offering superior performance for a wide range of products and scenarios.
With certifications including UL, ISO9001, ISO14001, RoHS, and Reach, the USTC litz wire adheres to the highest standards of quality and safety. The minimum order quantity is set at 10kg, ensuring that both small and large-scale projects can be accommodated. This copper litz wire comes packaged in sturdy cartons, guaranteeing that the product arrives in perfect condition, ready for use. With a swift delivery time of only 7 days and flexible payment terms via TT or Paypal, Ruiyuan ensures that your project timelines are met with efficiency.
| Item | Unit | Technical requests | Reality Value |
| Conductor Diameter | mm | 0.1±0.003 | 0.098-0.10 |
| Single wire diameter | mm | 0.110-0.125 | 0.110-0.114 |
| Width | mm | 4 | 3.74-3.96 |
| Thickness | mm | 2 | 2.06-2.26 |
| Resistance (20℃) | Ω/m | Max.0.005176 | 0.004795 |
| Breakdown Voltage | V | Min.500 | 2700 |
| No. of strands | 460 | 460 |
