| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.1mm | Insulation: | UEW |
|---|---|---|---|
| Key Word: | USTC Rectangular Copper Litz Wire Silk Covered Litz Wire Profiled | Conductor Material: | Copper |
| Number Of Strands: | 460 | Jacket: | Dacron/Nylon/natural Silk |
| Product Name: | USTC Rectangular Copper Litz Wire Silk Covered Litz Wire Profiled | Breakdown Voltage: | 2700V |
| Highlight: | 0.1mm USTC Copper Litz Wire,2700v USTC Copper Litz Wire,Silk Jacket USTC Copper Litz Wire |
||

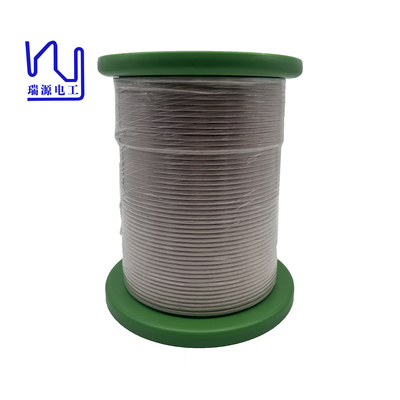

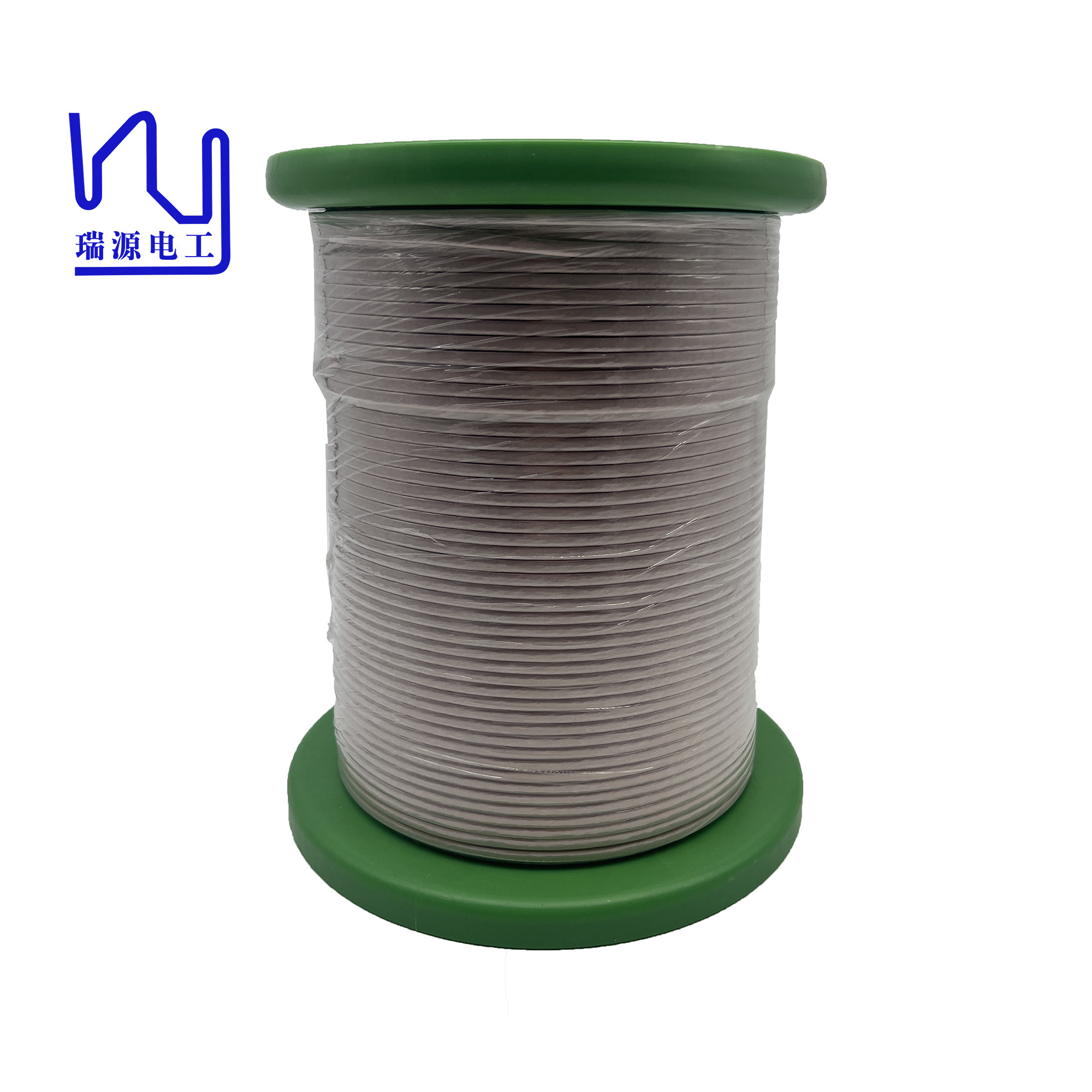

USTC Rectangular Copper Litz Wire Silk covered litz wire profiled
Flat silk covered litz wire stands out as a specialized wire with unique properties that makes it ideal for various industrial applications, especially motor windings. Its construction uses rectangular Litz wire, plus a silk covering and nylon gauze insulation to ensure high performance, efficiency and reliability.
|
Item |
Unit |
Technical requests |
Reality Value |
|
|
|||
|
Conductor Diameter |
mm |
0.1±0.003 |
0.098-0.10 |
|
Single wire diameter |
mm |
0.110-0.125 |
0.110-0.114 |
|
Width |
mm |
4 |
3.74-3.96 |
|
Thickness |
mm |
2 |
2.06-2.26 |
|
Resistance (20℃) |
Ω/m |
Max.0.005176 |
0.004795 |
|
Breakdown Voltage |
V |
Min.500 |
2700 |
|
No. of strands |
|
460 |
460 |
