| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Jacket: | Dacron/Nylon/natural Silk | Single Wire: | 0.1mm |
|---|---|---|---|
| Breakdown Voltage: | 2700V | Conductor Material: | Copper |
| Number Of Strands: | 460 | Insulation: | UEW |
| Product Name: | 0.1mmx460 Nylon Served Litz Wire Flat Litz Wire | Rated Temperature: | 155 |
| Highlight: | 2700v Breakdown Voltage served litz wire,460 Strands served litz wire,Copper Insulated Nylon Served Litz Wire |
||

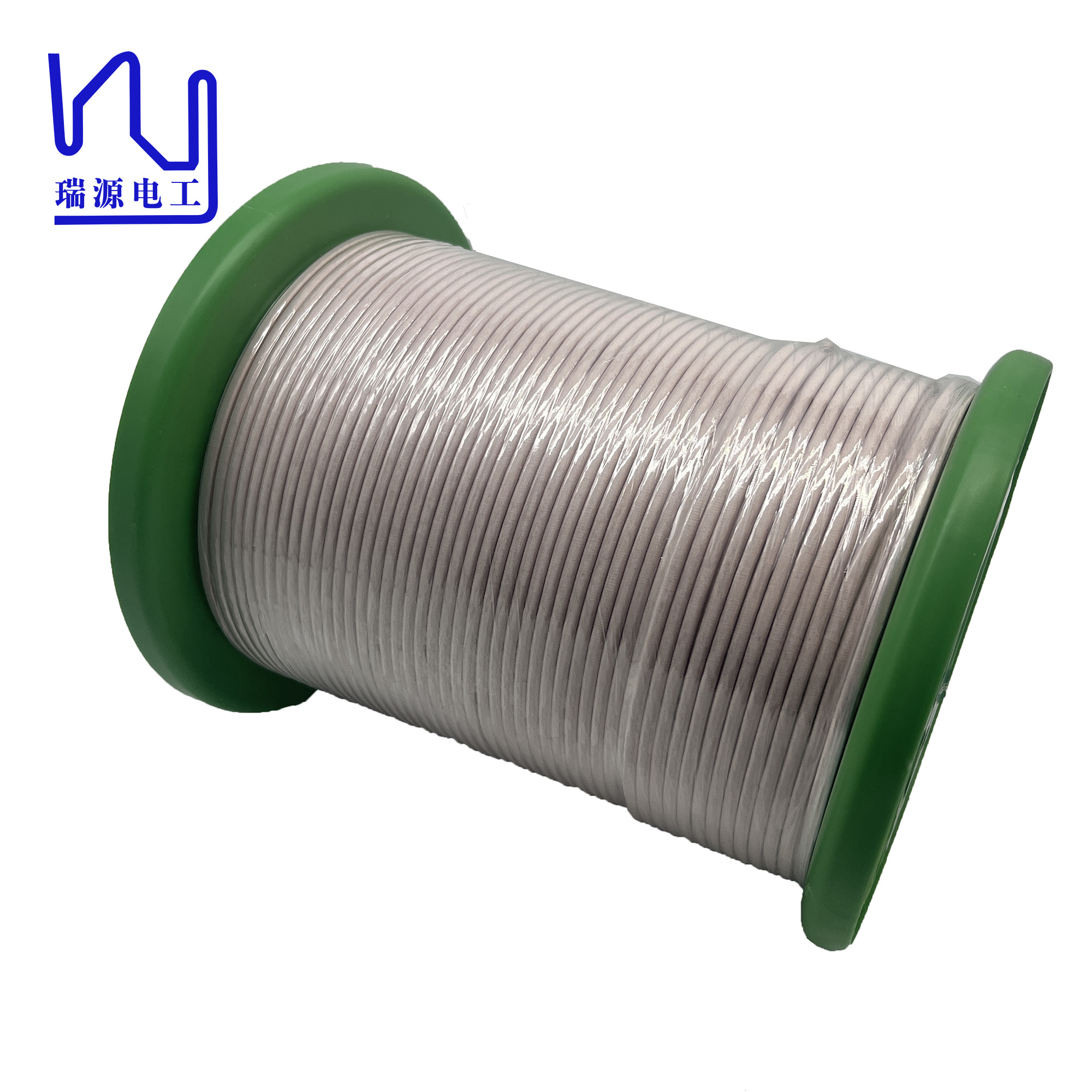

0.1mmx460 Nylon Served Litz Wire Flat Litz Wire
Flat silk covered litz wire has a variety of applications, one of its main uses is motor windings. The unique structure and properties of this wire make it ideal for use in motor windings, where high efficiency and reliability are critical.
Flat silk covered litz wire reduces power loss and increases efficiency, helping to improve the overall performance of the motor, making it the first choice for industrial and commercial motor applications.
|
Item |
Unit |
Technical requests |
Reality Value |
|
|
|||
|
Conductor Diameter |
mm |
0.1±0.003 |
0.098-0.10 |
|
Single wire diameter |
mm |
0.110-0.125 |
0.110-0.114 |
|
Width |
mm |
4 |
3.74-3.96 |
|
Thickness |
mm |
2 |
2.06-2.26 |
|
Resistance (20℃) |
Ω/m |
Max.0.005176 |
0.004795 |
|
Breakdown Voltage |
V |
Min.500 |
2700 |
|
No. of strands |
|
460 |
460 |
