| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 7 days |
| Payment Terms: | TT/Paypal |
| Supply Ability: | 100kg/week |
| Key Word: | 0.1mm Single Wire Ustc Litz Wire Ideal For Frequency And Speed Applications | Number Of Strands: | 460 |
|---|---|---|---|
| Conductor Material: | Copper | Rated Temperature: | 155 |
| Insulation: | UEW | Jacket: | Dacron/Nylon/natural Silk |
| Single Wire: | 0.1mm | Breakdown Voltage: | 2700V |
| Highlight: | UEW Insulation Ustc Litz Wire,0.1mm Ustc Litz Wire,Silk Jacket Ustc Litz Wire |
||

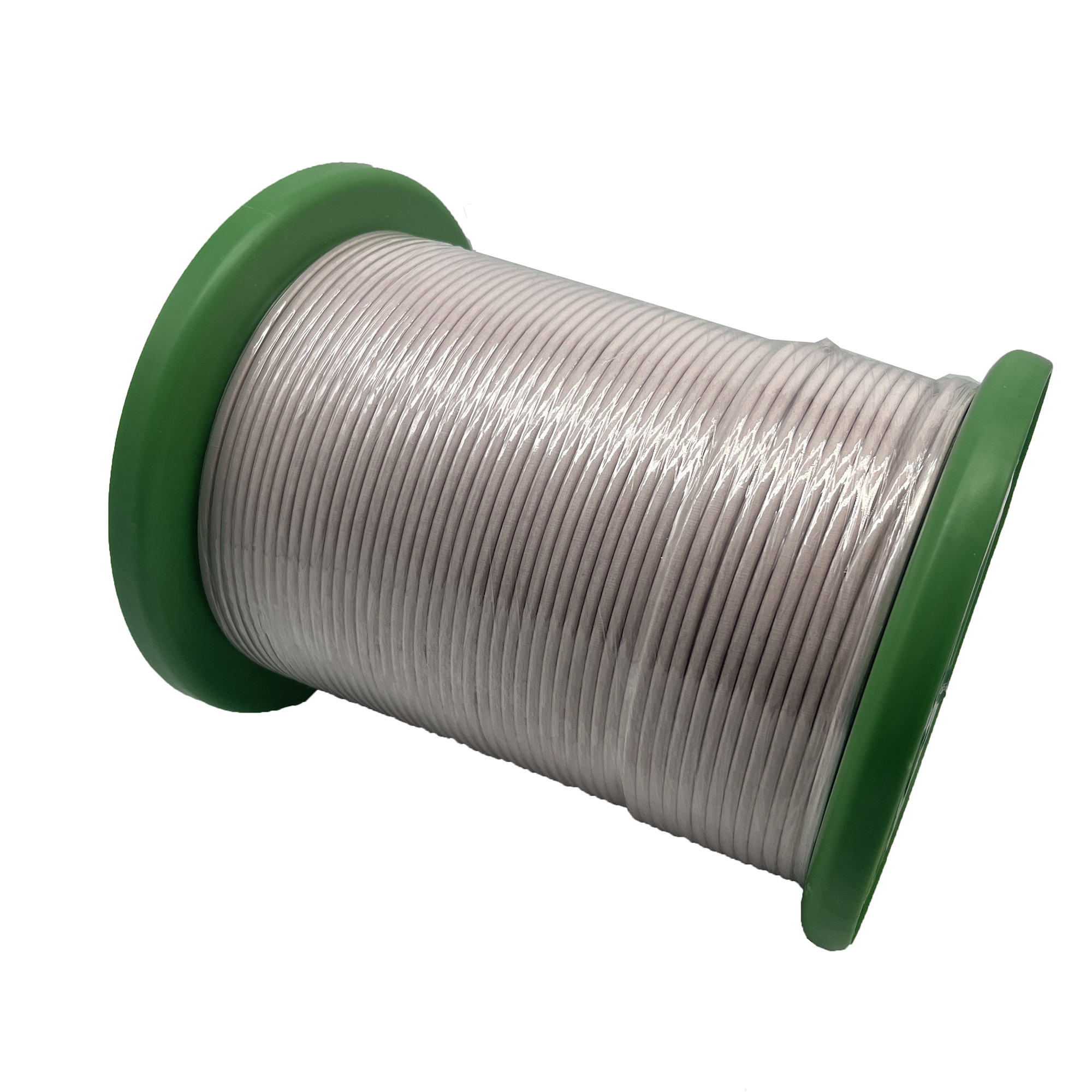

0.1mm Single Wire Ustc Litz Wire Ideal for Frequency and Speed Applications
One of the main features of silk covered litz wire is its multi-strand structure. This design reduces skin and proximity effects common in high frequency applications. The use of rectangular Litz wire in the construction of flat wire covered wire further enhances its performance by minimizing power losses and increasing efficiency.
|
Item |
Unit |
Technical requests |
Reality Value |
|
|
|||
|
Conductor Diameter |
mm |
0.1±0.003 |
0.098-0.10 |
|
Single wire diameter |
mm |
0.110-0.125 |
0.110-0.114 |
|
Width |
mm |
4 |
3.74-3.96 |
|
Thickness |
mm |
2 |
2.06-2.26 |
|
Resistance (20℃) |
Ω/m |
Max.0.005176 |
0.004795 |
|
Breakdown Voltage |
V |
Min.500 |
2700 |
|
No. of strands |
|
460 |
460 |
