| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF 0.1mm*20 litz wire |
| Minimum Order Quantity: | 10kg |
| Packaging Details: | Carton |
| Delivery Time: | 10 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100kg/week |
| Single Wire: | 0.1mm | Number Of Strands: | 20 |
|---|---|---|---|
| Conductor Material: | Copper | Rated Temperature: | 155 |
| Breakdown Voltage: | 3300V | Jacket: | Dacron/Nylon/natural Silk |
| Insulation: | UEW | Single Wire Diameter: | 0.1mm |
| Highlight: | 155C Voltage USTC Litz Wire,3300V Voltage USTC Litz Wire,Silk Jacket Voltage USTC Litz Wire |
||

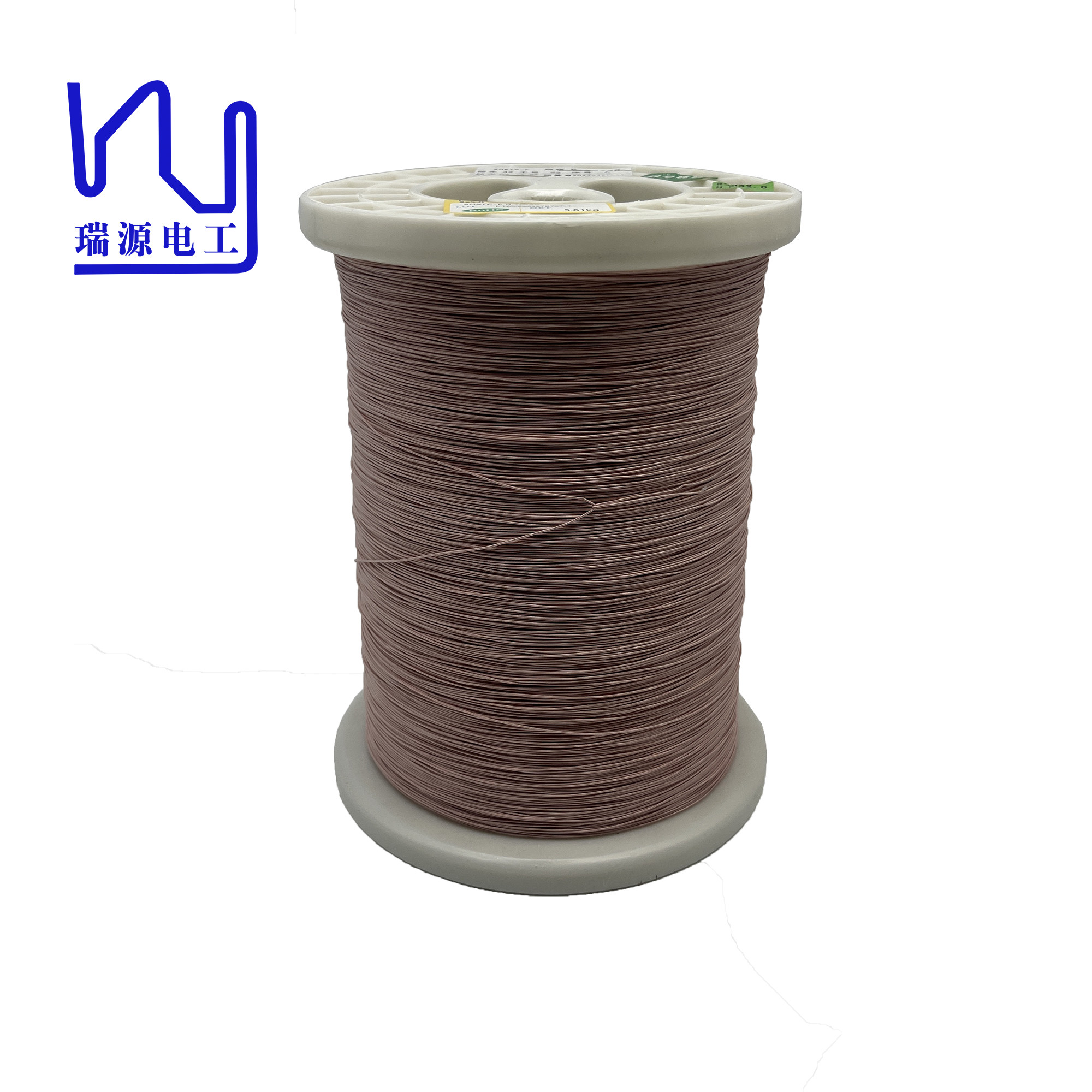

ProVoltage USTC Litz Wire Copper Conductor 3300V Breakdown 155C Rated Dacron/Nylon/Silk Jacket 20 Strands
The application of nylon litz wire extends to the electric vehicle industry, where it is used in electric motors, power electronics and charging systems. The wire's ability to reduce power losses and increase efficiency is particularly valuable for electric vehicles, where energy conservation and performance optimization are critical. The mechanical elasticity provided by nylon ensures the wire's durability under the demanding conditions of electric vehicle operation, contributing to the overall reliability and safety of the vehicle's electrical system.
| Item | Single wire dia. mm | Conductor dia. mm | O.D. mm |
Resistance Ω/m20℃ |
Dielectric strength V | Pinch mm |
Solder ablility 390± 5℃ 9s |
| Tech requirement | 0.107-0.125 | 0.10 | 0.69 | 0.1191 | 1100 | 27 | Smooth,no shed |
| ± | 0.003 | Max. | Max. | Min. | 3 | ||
| 1 | 0.110-0.114 | 0.098-0.10 | 0.52-0.59 | 0.1084 | 3300 | √ | √ |
