| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | USTCF 0.1mm*20 litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 10 workding days |
| Payment Terms: | T/T |
| Supply Ability: | 100kg/week |
| Jacket: | Dacron/Nylon/natural Silk | Breakdown Voltage: | 3300V |
|---|---|---|---|
| Insulation: | UEW | Number Of Strands: | 20 |
| Conductor Material: | Copper | Single Wire: | 0.1mm |
| Rated Temperature: | 155 | ||
| Highlight: | 0.1mm Ustc Litz Wire,20 Strands Ustc Litz Wire,UEW Insulation Ustc Litz Wire |
||

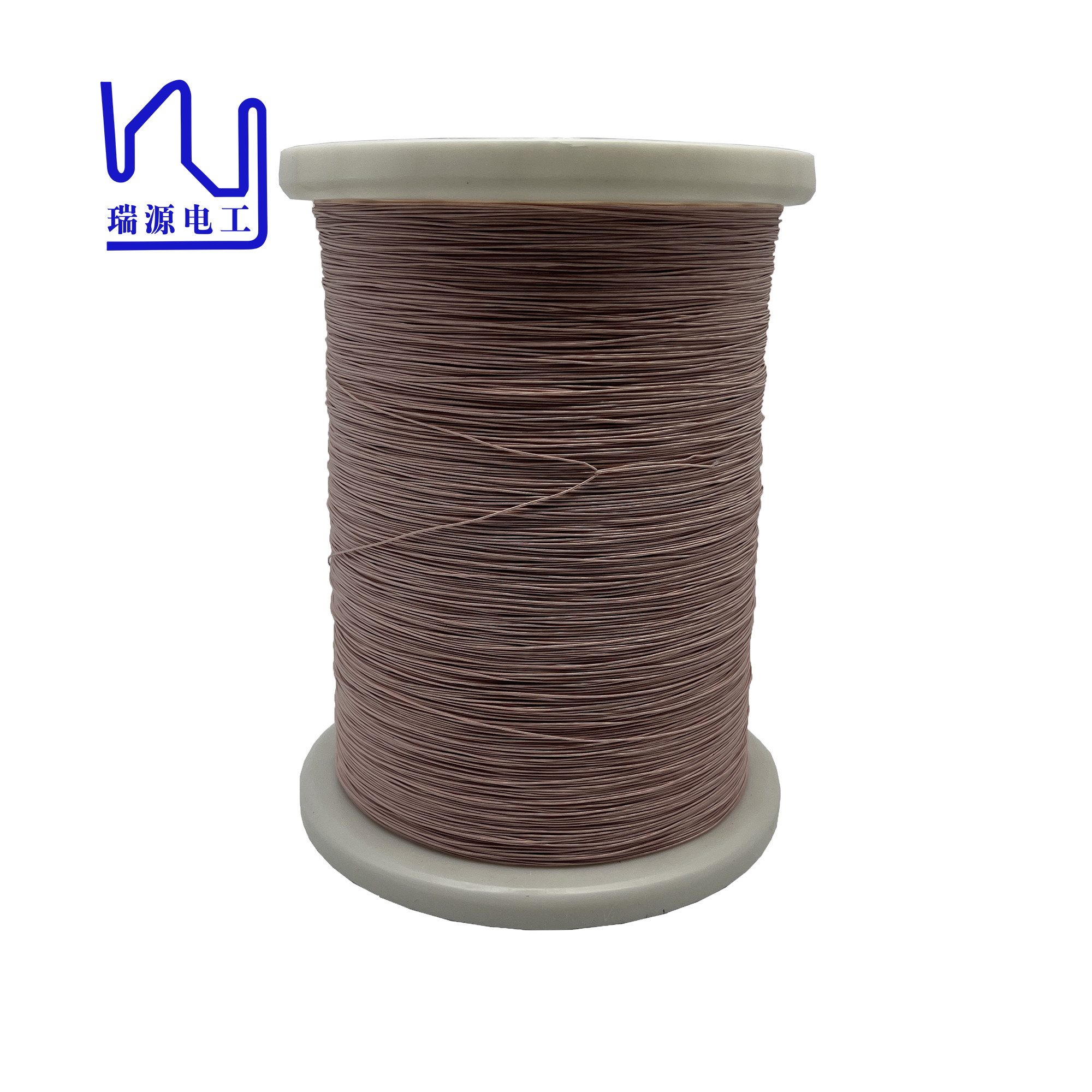

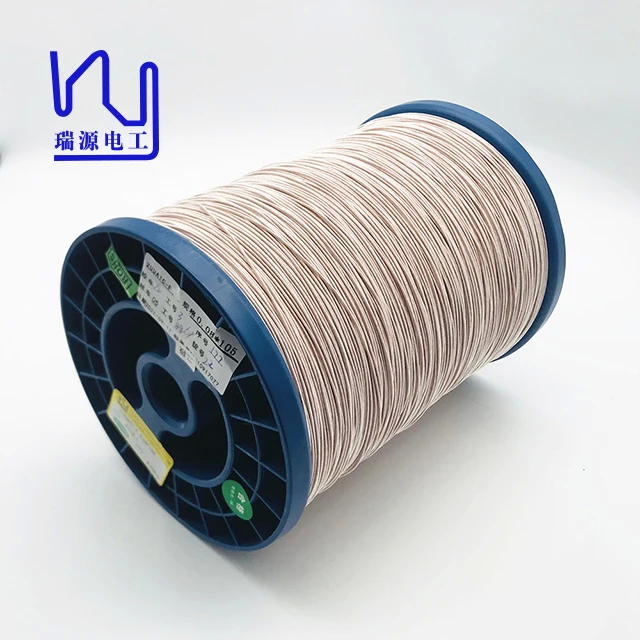

UEW Insulation Ustc Litz Wire for Applications 20 Strands 0.1mm Single Wire Diameter
In the industrial field, nylon litz wire is widely used in transformers, inductors and other electrical components that require high-frequency operation. Its ability to reduce power losses and increase efficiency makes it an important component in power electronics, renewable energy systems and industrial machinery. The mechanical robustness provided by nylon ensures reliable performance even under harsh industrial conditions, making it the first choice for critical applications.
|
product name:Durable Performance Nylon Served Litz Wire 0.1mm Single Wire Diameter 20 Strands key word:Durable Performance Nylon Served Litz Wire 0.1mm Single Wire Diameter 20 Strands |
|||||||
| Item | Single wire dia. mm | Conductor dia. mm | O.D. mm |
Resistance Ω/m20℃ |
Dielectric strength V | Pinch mm |
Solder ablility 390± 5℃ 9s |
| Tech requirement | 0.107-0.125 | 0.10 | 0.69 | 0.1191 | 1100 | 27 | Smooth,no shed |
| ± | 0.003 | Max. | Max. | Min. | 3 | ||
| 1 | 0.110-0.114 | 0.098-0.10 | 0.52-0.59 | 0.1084 | 3300 | √ | √ |
