| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.1mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100kg/week |
| Product Name: | 2USTCF 0.1mm*20 Silk Covered Litz Wire Nylon Serving For Windings | Insulation: | Polyurethane |
|---|---|---|---|
| Size: | 0.1mm | Quantity: | 10kg/roll |
| Key Word: | 2USTCF 0.1mm*20 Silk Covered Litz Wire Nylon Serving For Windings | NO. Of Strands: | 20 |
| Cover: | Nylon/polyester/natural Silk | ||
| Highlight: | 2USTCF Silk Covered Litz Wire,0.1mm*20 Silk Covered Litz Wire,Nylon Serving Silk Covered Litz Wire |
||

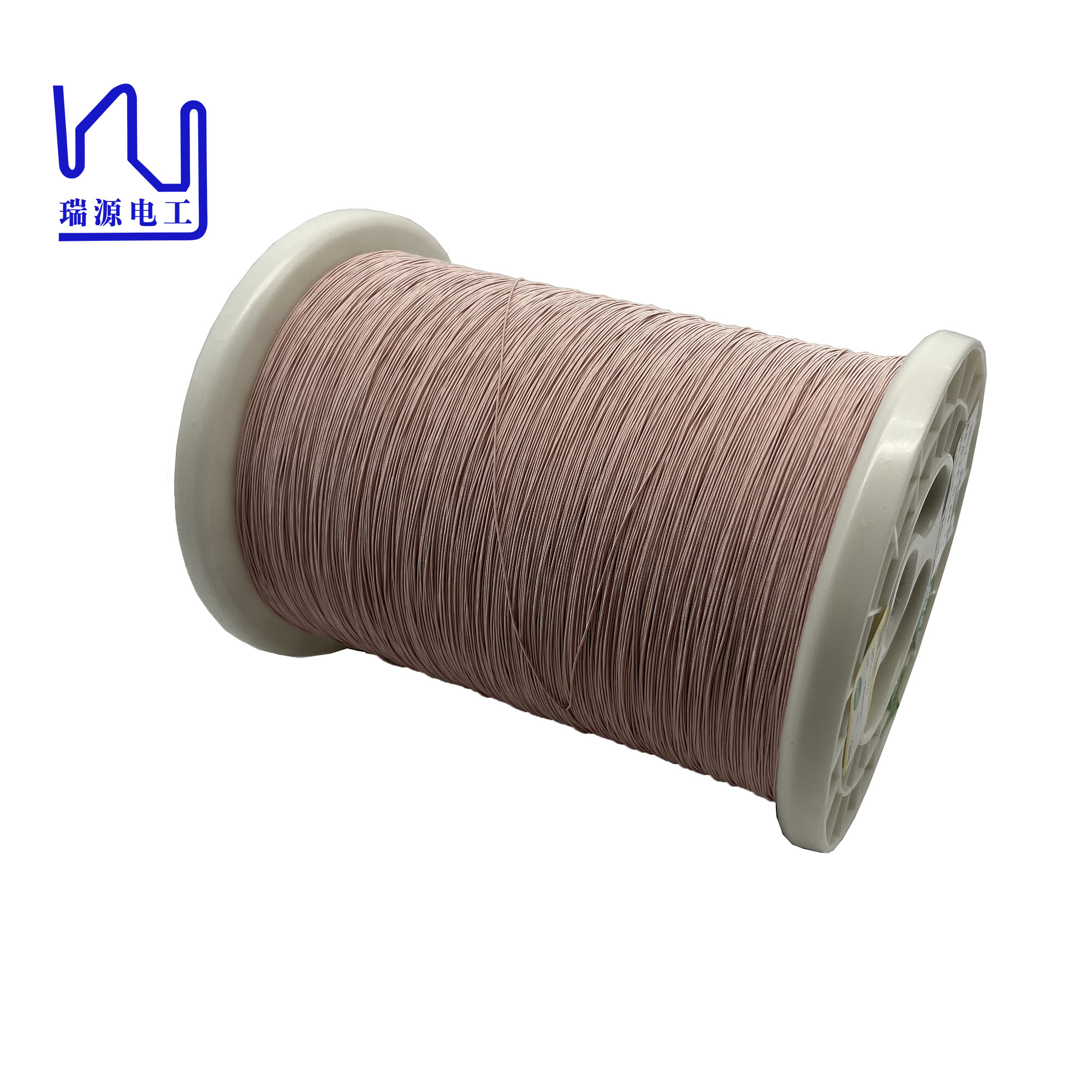

2USTCF 0.1mm*20 Silk Covered litz wire Nylon Serving for Windings
Nylon litz wire is a special type of litz wire that has many advantages and is widely used in various industrial fields, electronic products and electric vehicles.
Ruiyuan Company is a leading supplier of fully custom litz wire (including wire-covered litz wire, wrapped litz wire and stranded wire), offering low-volume customization and a choice of copper and silver conductors. This is silk-covered litz wire, which has a single wire diameter of 0.1 mm and consists of 20 strands of wire wrapped with nylon yarn, silk yarn or polyester yarn to meet specific requirements.
| Item | Single wire dia. mm | Conductor dia. mm | O.D. mm |
Resistance Ω/m20℃ |
Dielectric strength V | Pinch mm |
Solder ablility 390± 5℃ 9s |
| Tech requirement | 0.107-0.125 | 0.10 | 0.69 | 0.1191 | 1100 | 27 | Smooth,no shed |
| ± | 0.003 | Max. | Max. | Min. | 3 | ||
| 1 | 0.110-0.114 | 0.098-0.10 | 0.52-0.59 | 0.1084 | 3300 | √ | √ |
