| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Customized Stranded Wire 0.07mm X 200 Copper Litz Wire For High Frequency Transformer | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.07mm | Conductor: | Copper |
| Insulation: | Enamel | Rated Temperature: | 155 |
| Key Word: | Customized Stranded Wire 0.07mm X 200 Copper Litz Wire For High Frequency Transformer | No. Of Strands: | 200 |
| Highlight: | Stranded Wire 0.07mm X 200,Customized Stranded Copper Litz Wire,High Frequency Transformer Copper Litz Wire |
||

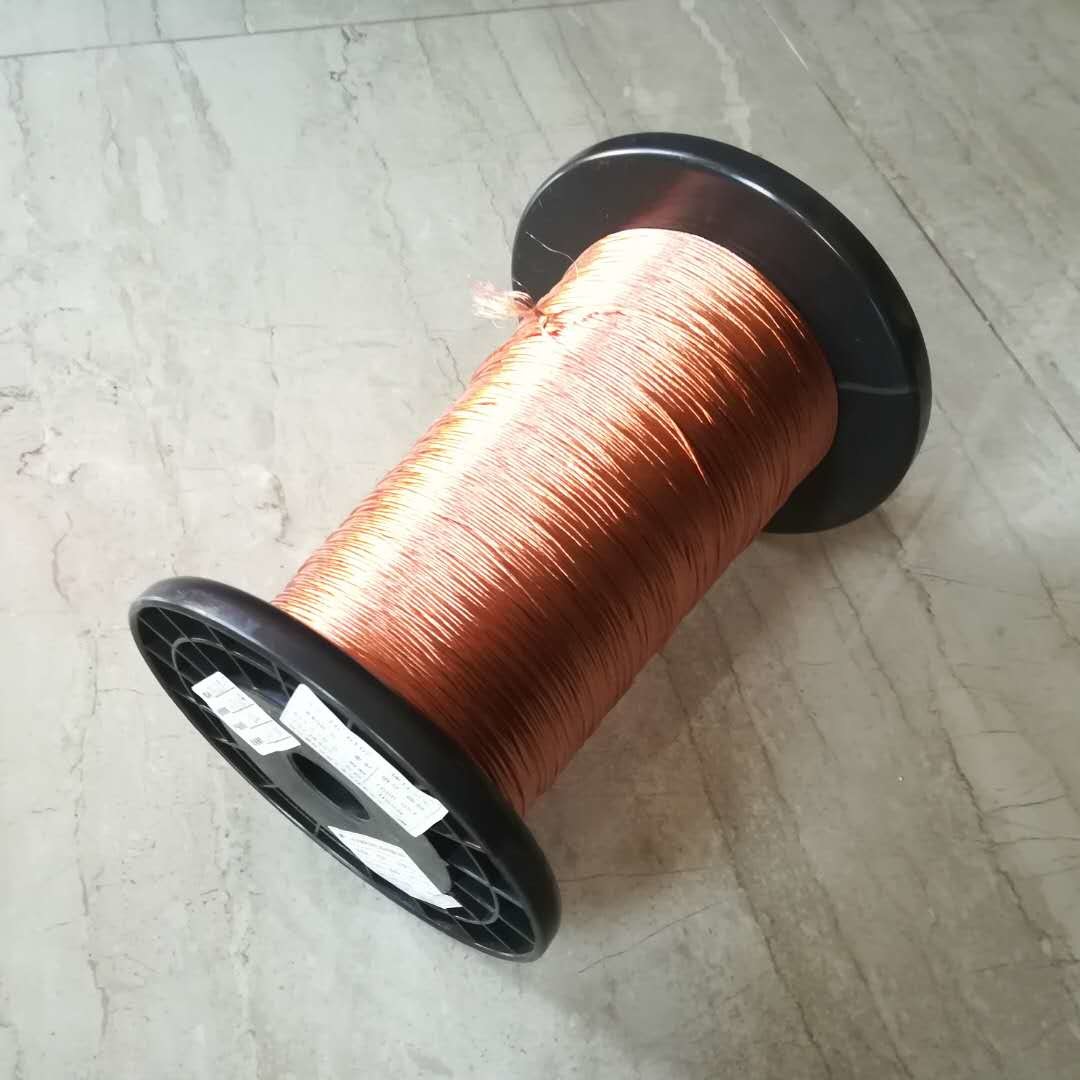

Customized Stranded Wire 0.07mm X 200 Copper Litz Wire For High Frequency Transformer
Litz wire is a wire stranded with rom enameled insulated copper or aluminum wires and is commonly used in high-frequency circuits and transformers. It is designed to reduce the skin effect and negative effects caused by alternating current in conductors. Because at high frequencies, alternating current will tend to be transmitted through the surface of the conductor, which will cause the cross-sectional area of the current inside the conductor to become smaller, thereby increasing the resistance and energy loss of the conductor.
The small insulated coil of Litz wire can effectively reduce the skin effect, reduce resistance, and improve conductor efficiency and performance. Litz wire is commonly used in high-frequency transformers, RF inductors, antennas, electromagnetic shielding, and other applications where high-frequency losses need to be reduced.
