| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 120 Strands 0.4mm Film Winding Copper Taped Litz Wire For Transformer | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.4mm | Cover Material: | PI |
| Conductor: | Copper | Rated Temperature: | 180 |
| Key Word: | 120 Strands 0.4mm Film Winding Copper Taped Litz Wire For Transformer | No. Of Strands: | 120 |
| Highlight: | 120 strand enamel winding wire,0.4mm enamel winding wire,enameled copper winding wire for transformer |
||

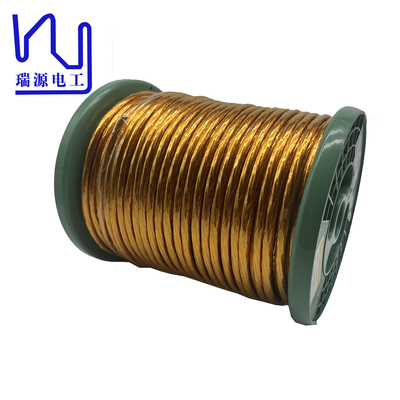

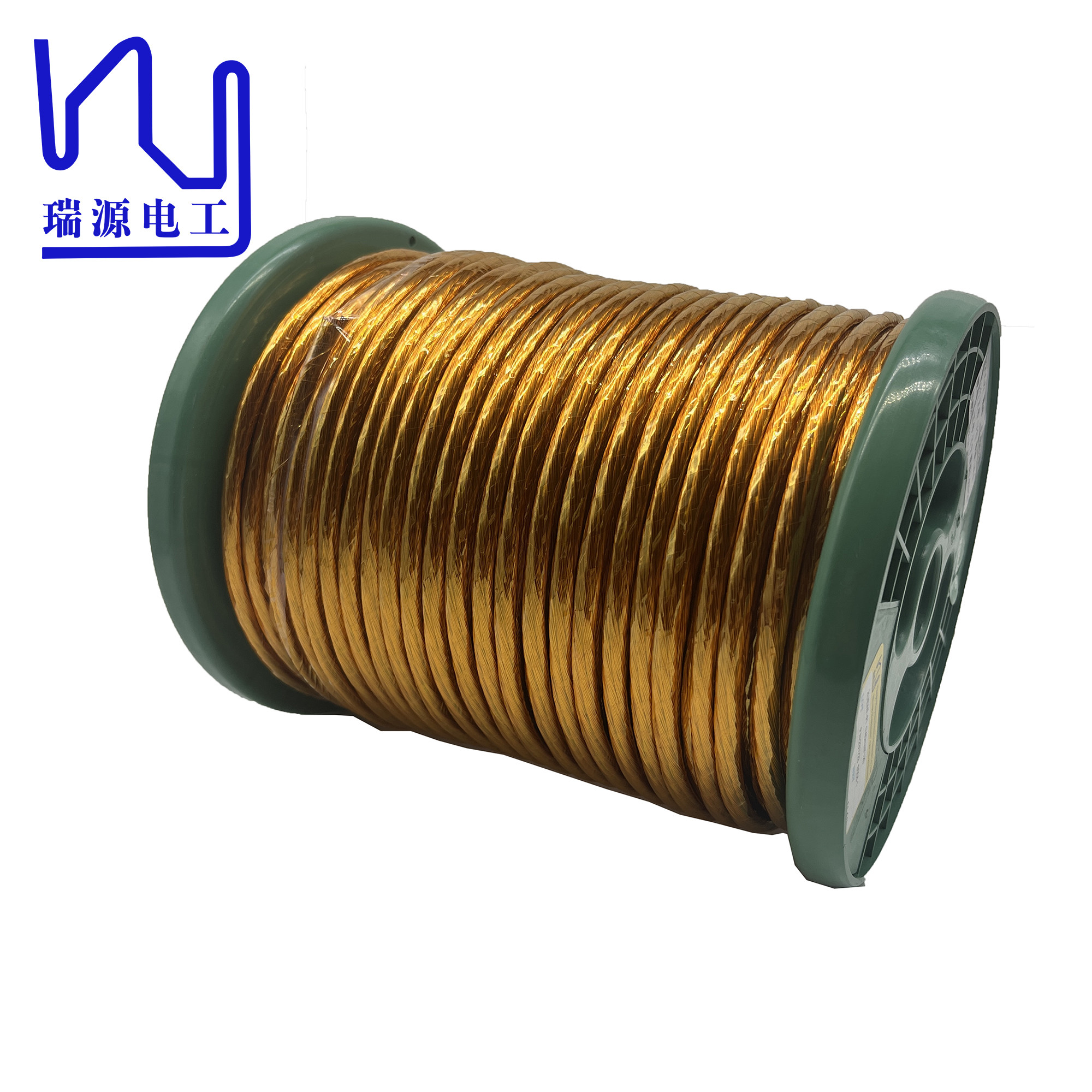

120 Strands 0.4mm Film Winding Copper Taped Litz Wire for Transformer
Taped litz wire is stranded from multiple strands of insulated wire and then covered with a layer of insulating tape for insulation protection. This design helps reduce eddy current losses in alternating current and improves the electrical performance of the conductor. Taped litz wire is commonly used in high frequency transformers and other electronic equipment.
|
Key word:120 Strands 0.4mm Film Winding Copper Taped Litz Wire for Transformer |
||||||||
|
Item |
Conductor diameter mm |
Single wire diameter mm |
O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Pitch mm |
No. Of strands |
Tape/overlap% |
|
Tech requirement |
0.4 |
0.422-0.439 |
6.87 |
0.001181 |
6000 |
130 |
120 |
50 |
|
± |
0.005 |
|
Max |
Max. |
Min |
20 |
|
Min |
|
1 |
0.396-0.40 |
0.424-0.432 |
6.04-6.64 |
0.001116 |
13000 |
130 |
120 |
55 |
