| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Electrical Vehicle Use 2UEW-F-PI 0.4mm High Breakdown Voltage Mylar Taped Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.4mm | Cover Material: | PI |
| Conductor: | Copper | Rated Temperature: | 180 |
| Key Word: | Electrical Vehicle Use 2UEW-F-PI 0.4mm High Breakdown Voltage Mylar Taped Litz Wire | No. Of Strands: | 120 |
| Highlight: | Electrical Vehicle Copper Litz Wire,Copper Litz Wire 0.4mm,Electrical Vehicle insulated copper winding wire |
||

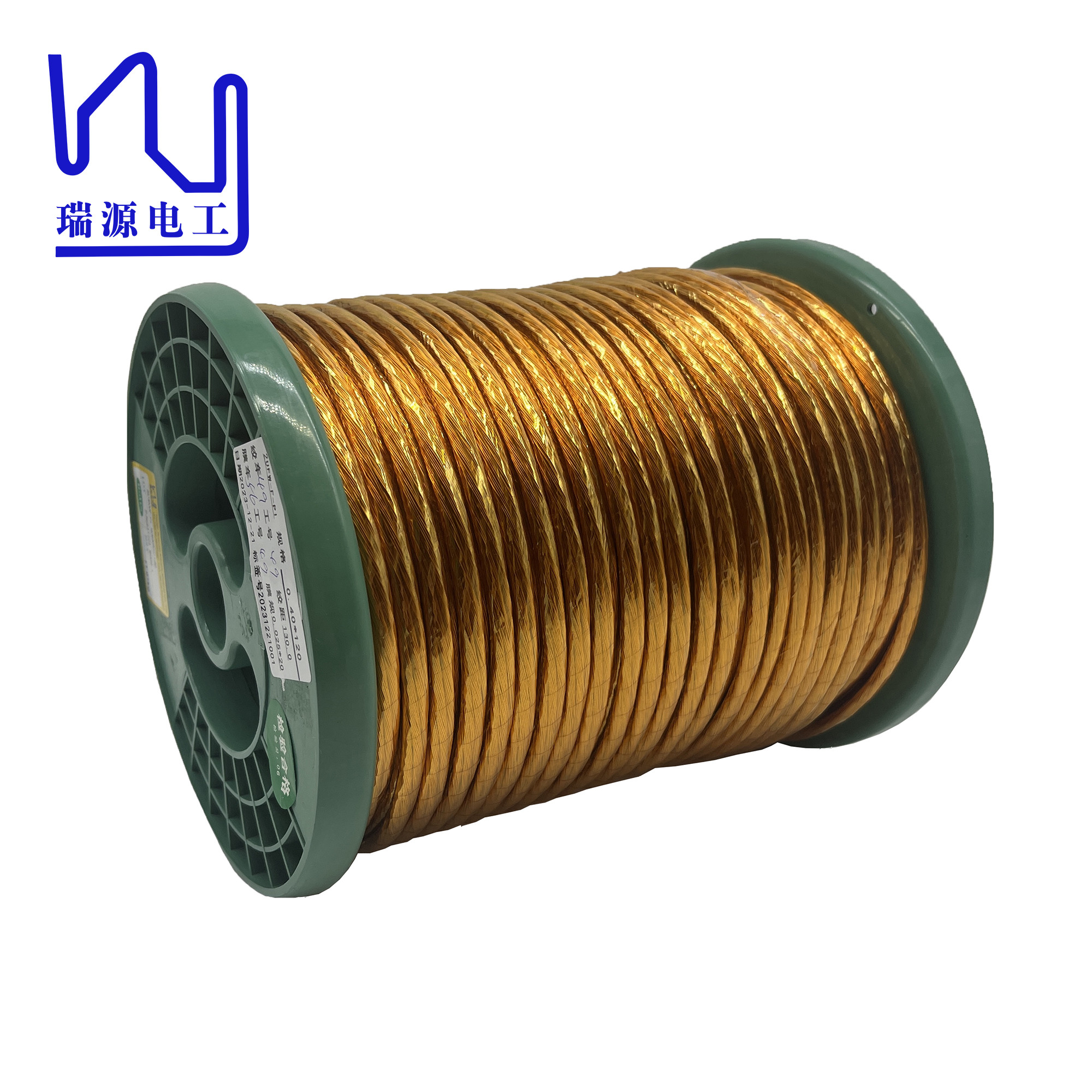

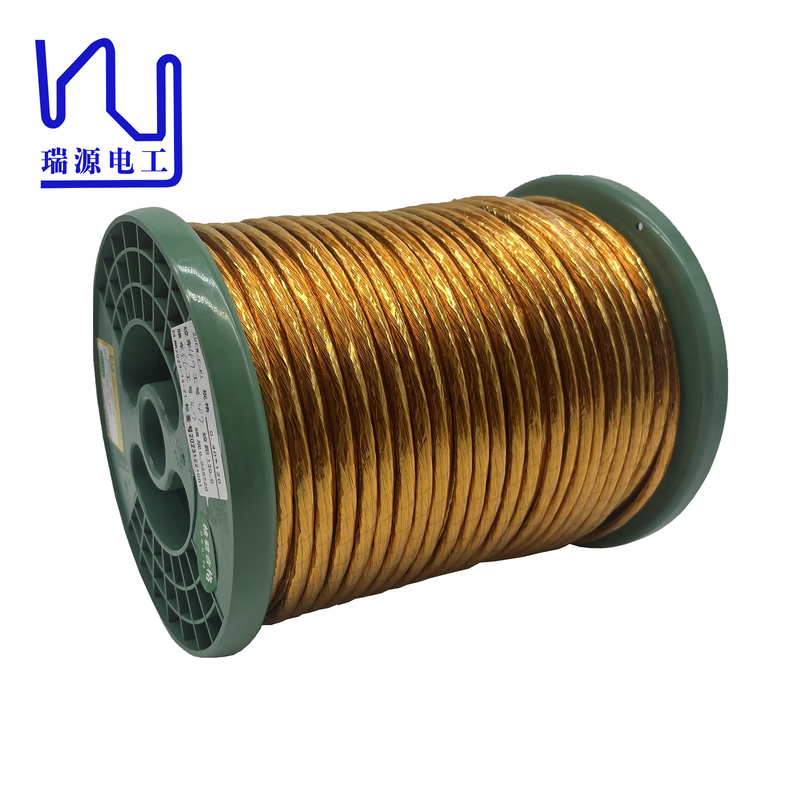

Electrical Vehicle Use 2UEW-F-PI 0.4mm High Breakdown Voltage Mylar Taped Litz Wire
In both manufacturing and design, the versatility of taped litz wire allows for customization to specific requirements, ensuring it meets the unique needs of different applications. Its ability to handle high power and high frequency signals, coupled with its excellent insulation properties, makes wrapped Litz wire ideal for industries where efficiency and reliability are critical.
|
Key word:Electrical Vehicle Use 2UEW-F-PI 0.4mm High Breakdown Voltage Mylar Taped Litz Wire |
||||||||
| Item |
Conductor diameter mm |
Single wire diameter mm |
O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Pitch mm |
No. Of strands |
Tape/overlap% |
|
Tech requirement |
0.4 | 0.422-0.439 | 6.87 | 0.001181 | 6000 | 130 | 120 | 50 |
| ± | 0.005 | Max | Max. | Min | 20 | Min | ||
| 1 | 0.396-0.40 | 0.424-0.432 | 6.04-6.64 | 0.001116 | 13000 | 130 | 120 | 55 |
