| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.4mm X 120 Strands High Voltage PI Film Enameled Copper Taped Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.4mm | Cover Material: | PI |
| Conductor: | Copper | Rated Temperature: | 180 |
| Key Word: | 0.4mm X 120 Strands High Voltage PI Film Enameled Copper Taped Litz Wire | No. Of Strands: | 120 |
| Highlight: | 0.4mm super enameled copper winding wire,hv super enameled copper winding wire,120 Strand enameled copper winding wire |
||

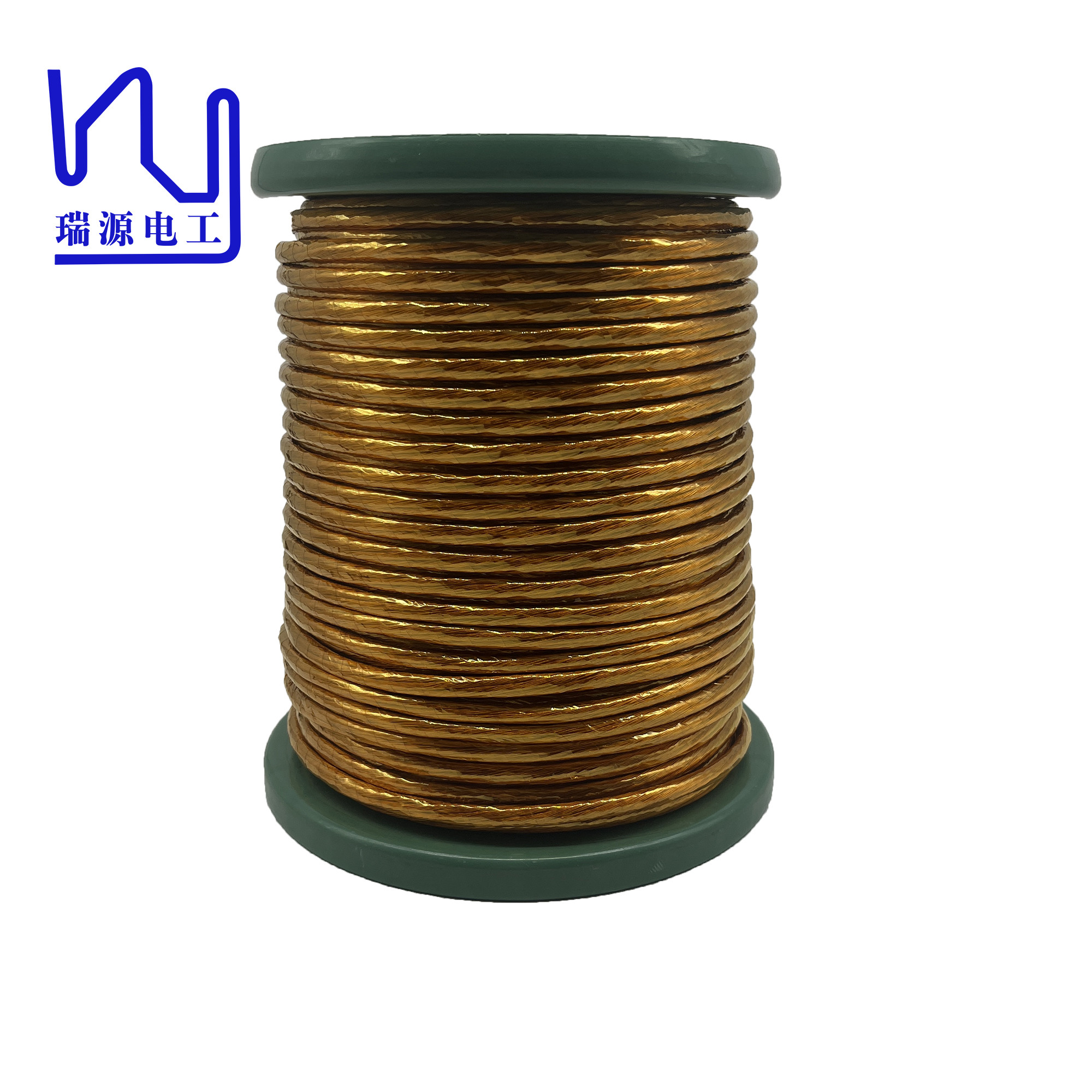

0.4mm x 120 Strands High Voltage PI Film Enameled Copper Taped Litz Wire
IUsing polyimide film as the insulating material provides excellent heat resistance and electrical insulation, making taped litz wire suitable for harsh environments where high temperatures and electrical isolation are critical. This not only ensures the safety and reliability of electrical equipment, but also extends the service life of components using wires.
|
Key word:0.4mm x 120 Strands High Voltage PI Film Enameled Copper Taped Litz Wire |
||||||||
| Item |
Conductor diameter mm |
Single wire diameter mm |
O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Pitch mm |
No. Of strands |
Tape/overlap% |
|
Tech requirement |
0.4 | 0.422-0.439 | 6.87 | 0.001181 | 6000 | 130 | 120 | 50 |
| ± | 0.005 | Max | Max. | Min | 20 | Min | ||
| 1 | 0.396-0.40 | 0.424-0.432 | 6.04-6.64 | 0.001116 | 13000 | 130 | 120 | 55 |
