| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Mylar Litz Wire 0.4mm *120 PI Taped Litz Wire For High Voltage Transformer | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.4mm | Cover Material: | PI |
| Conductor: | Copper | Rated Temperature: | 180 |
| Key Word: | Mylar Litz Wire 0.4mm *120 PI Taped Litz Wire For High Voltage Transformer | No. Of Strands: | 120 |
| Highlight: | 0.4 mm mylar litz wire,high voltage transformer mylar litz wire |
||

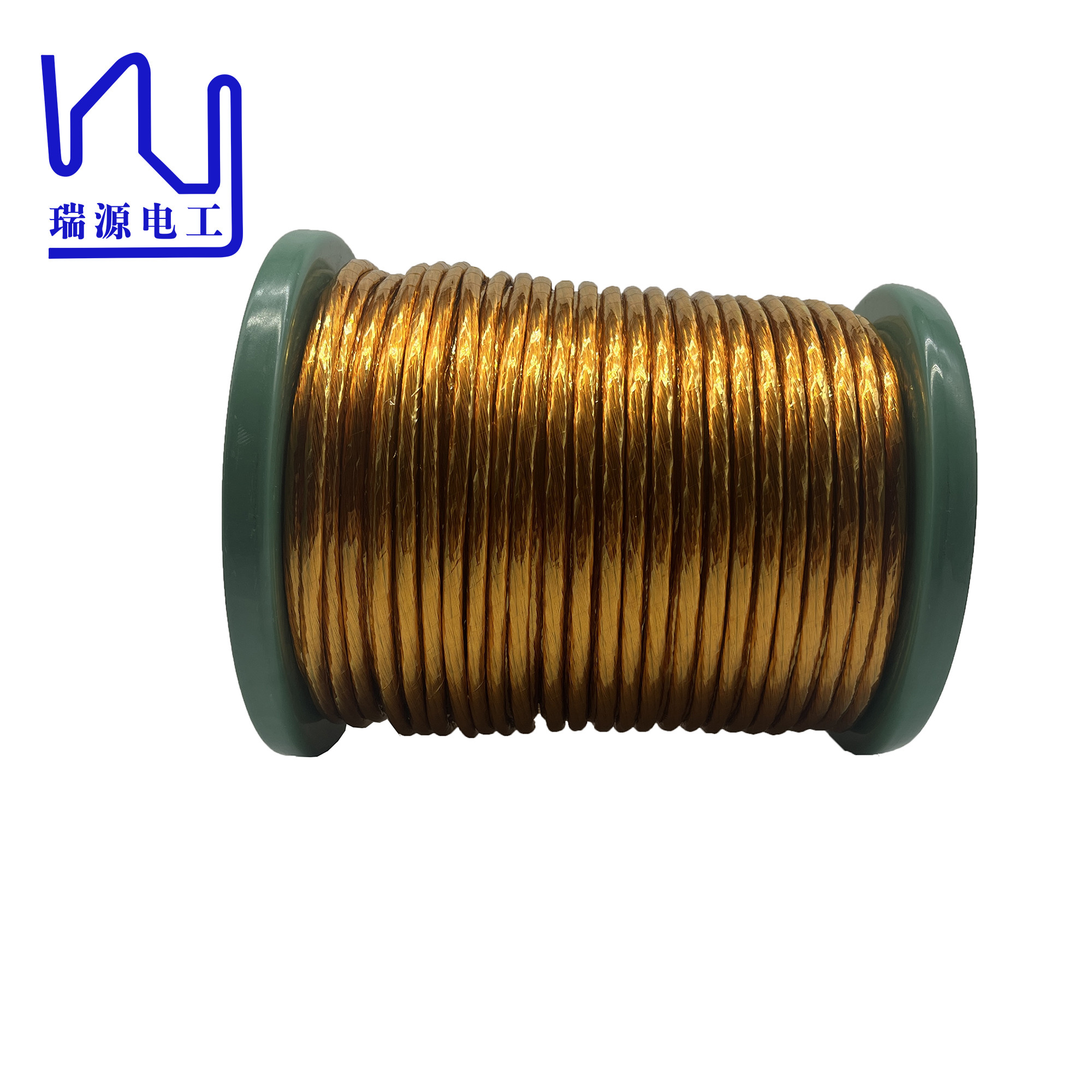

Mylar Litz Wire 0.4mm *120 PI Taped Litz Wire For High Voltage Transformer
One of the main advantages of taped Litz wire is its high frequency performance, which is due to the twisting of multiple wires. By twisting the individual strands together, the skin effect that causes increased resistance at high frequencies can be reduced. This property makes taped Litz wire an efficient conductor for high frequency applications, ensuring minimal power losses and improved performance in such systems.
| Key word:Mylar Litz Wire 0.4mm *120 PI Taped Litz Wire For High Voltage Transformer | ||||||||
| Item |
Conductor diameter mm |
Single wire diameter mm |
O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Pitch mm |
No. Of strands |
Tape/overlap% |
|
Tech requirement |
0.4 | 0.422-0.439 | 6.87 | 0.001181 | 6000 | 130 | 120 | 50 |
| ± | 0.005 | Max | Max. | Min | 20 | Min | ||
| 1 | 0.396-0.40 | 0.424-0.432 | 6.04-6.64 | 0.001116 | 13000 | 130 | 120 | 55 |
