| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | High Frequency 0.4mm*120 Taped Litz Wire Copper Conductor For Motor/Transformer | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.4mm | Conductor: | Copper |
| Insulation: | PI Film | Rated Temperature: | 180 |
| Key Word: | High Frequency 0.4mm*120 Taped Litz Wire Copper Conductor For Motor/Transformer | No. Of Strands: | 120 |
| Highlight: | 0.4mm high frequency litz wire,copper conductor high frequency litz wire,litz wire frequency high 0.4mm |
||

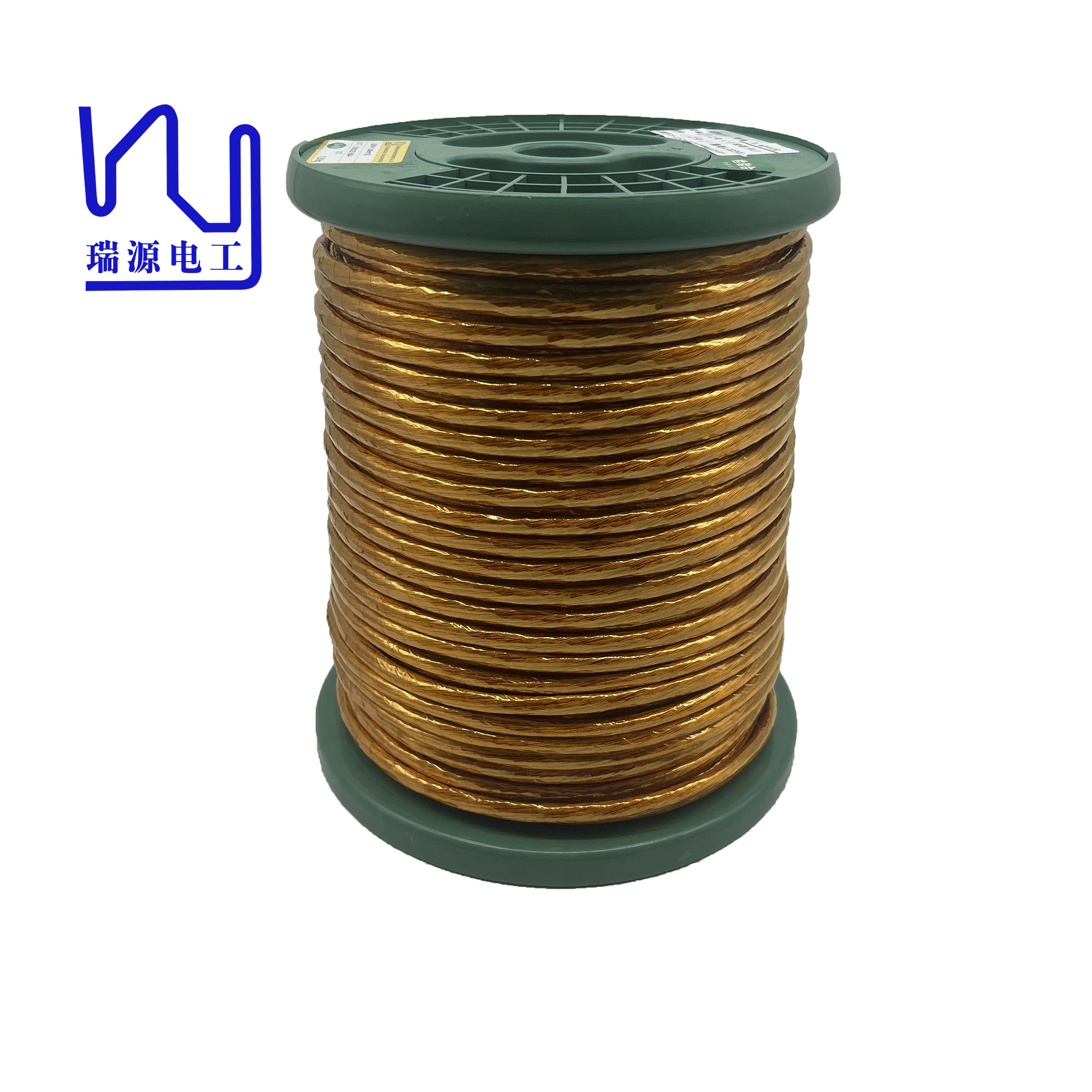

High Frequency 0.4mm*120 Taped Litz Wire Copper Conductor For Motor/Transformer
This taped litz wire has a single wire diameter of 0.4 mm, consists of 120 strands twisted together, and is wrapped with a polyimide film. Polyimide film is considered one of the best insulation materials currently, with high temperature resistance and excellent insulation properties. The numerous advantages of using taped litz wire make it a popular choice for magnetic applications in industries such as high frequency transformers, high power transformer manufacturing, and medical equipment, inverters, high frequency inductors and transformers, and wireless chargers
|
Item
|
Conductor diameter mm |
Single wire diameter mm |
O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Pitch (mm) |
No. Of strands |
Tape/overlap% |
|
Tech requirement |
0.4 |
0.422-0.439 |
6.87 |
0.001181 |
6000 |
130 |
120 |
50 |
|
± |
0.005
|
|
Max |
Max. |
Min |
20 |
|
Min |
|
1 |
0.396-0.40 |
0.424-0.432 |
6.04-6.64 |
0.001116 |
13000 |
130 |
120 |
55 |
