| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 10 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom Silk Covered Litz Wire Enameled Copper Litz Wire For Transformer | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.06mm/38AWG | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom Silk Covered Litz Wire Enameled Copper Litz Wire For Transformer |
| No. Of Strands: | 165 | ||
| Highlight: | custom ustc litz wire,enameled copper ustc litz wire,silk covered copper litz wire |
||

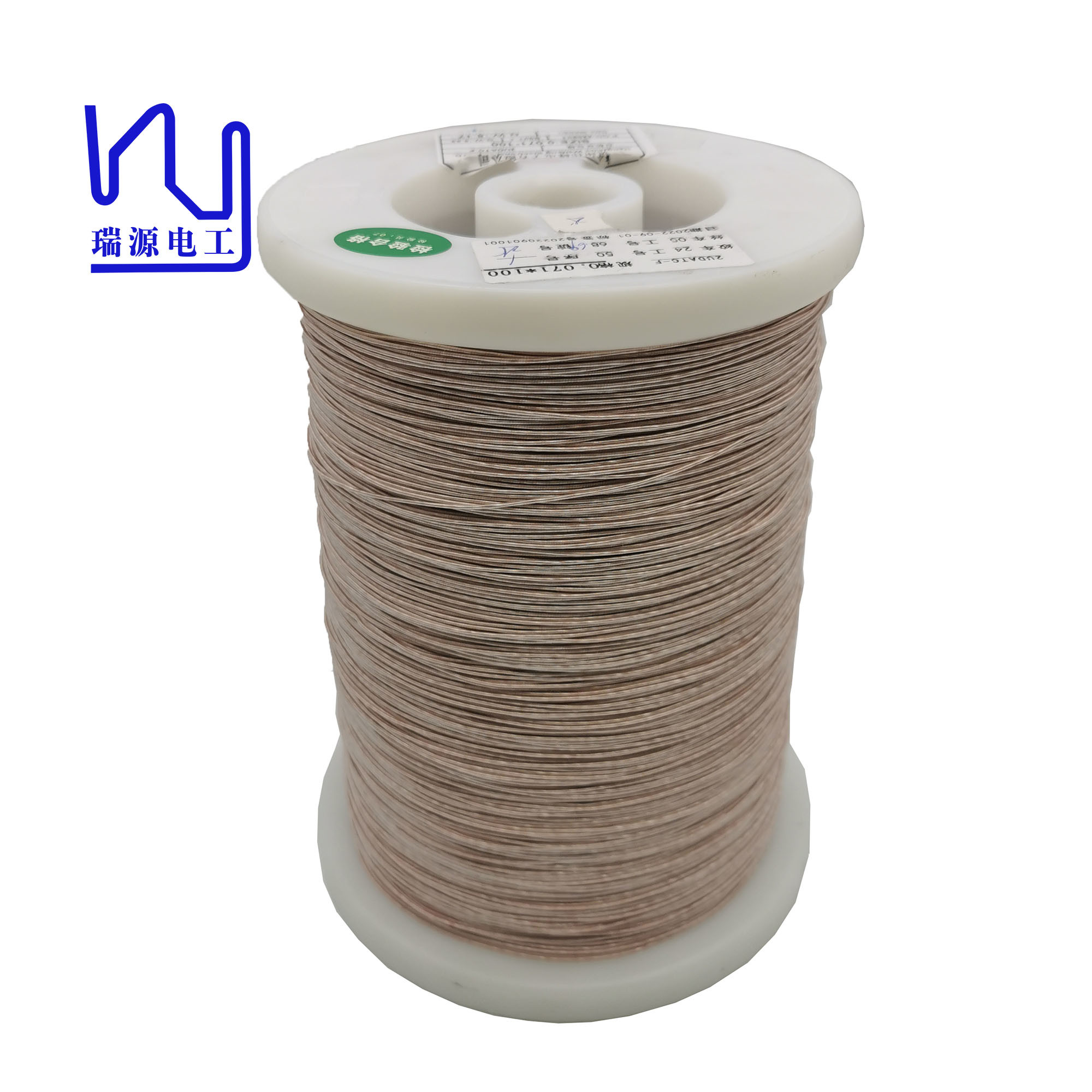

Custom Silk Covered Litz Wire Enameled Copper Litz Wire For Transformer
Our commitment to customization allows us to tailor nylon litz wire to our customers' exact specifications, ensuring it meets the specific requirements of their application. Whether enhanced flexibility, specific temperature tolerance or precise strand configuration is required, we have the ability to provide customized solutions to meet the unique needs of signal transmission in different industries.
|
Item |
Single wire diametermm |
Conductor diameter mm |
O.D.mm |
Resistance Ω/m |
Dielectric strength V |
Pitch(mm) |
|
Tech requirement |
0.072-0.098 |
0.06 |
1.32 |
0.04222 |
1600 |
26 faults/6m |
|
± |
|
0.003 |
Max. |
Max. |
Min. |
Max. |
|
sample 1 |
0.073 |
0.058 |
1.06 |
0.0378 |
2900 |
8 |
|
sample 2 |
0.076 |
0.06 |
1.13 |
0.0377 |
3100 |
6 |
