| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 10 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 165*0.06mm High Frequency Stranded Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.06mm/38AWG | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 165*0.06mm High Frequency Stranded Copper Litz Wire |
| No. Of Strands: | 165 | ||
| Highlight: | 0.06mm copper litz cable,multi stranded copper litz cable,0.06mm ustc litz wire |
||

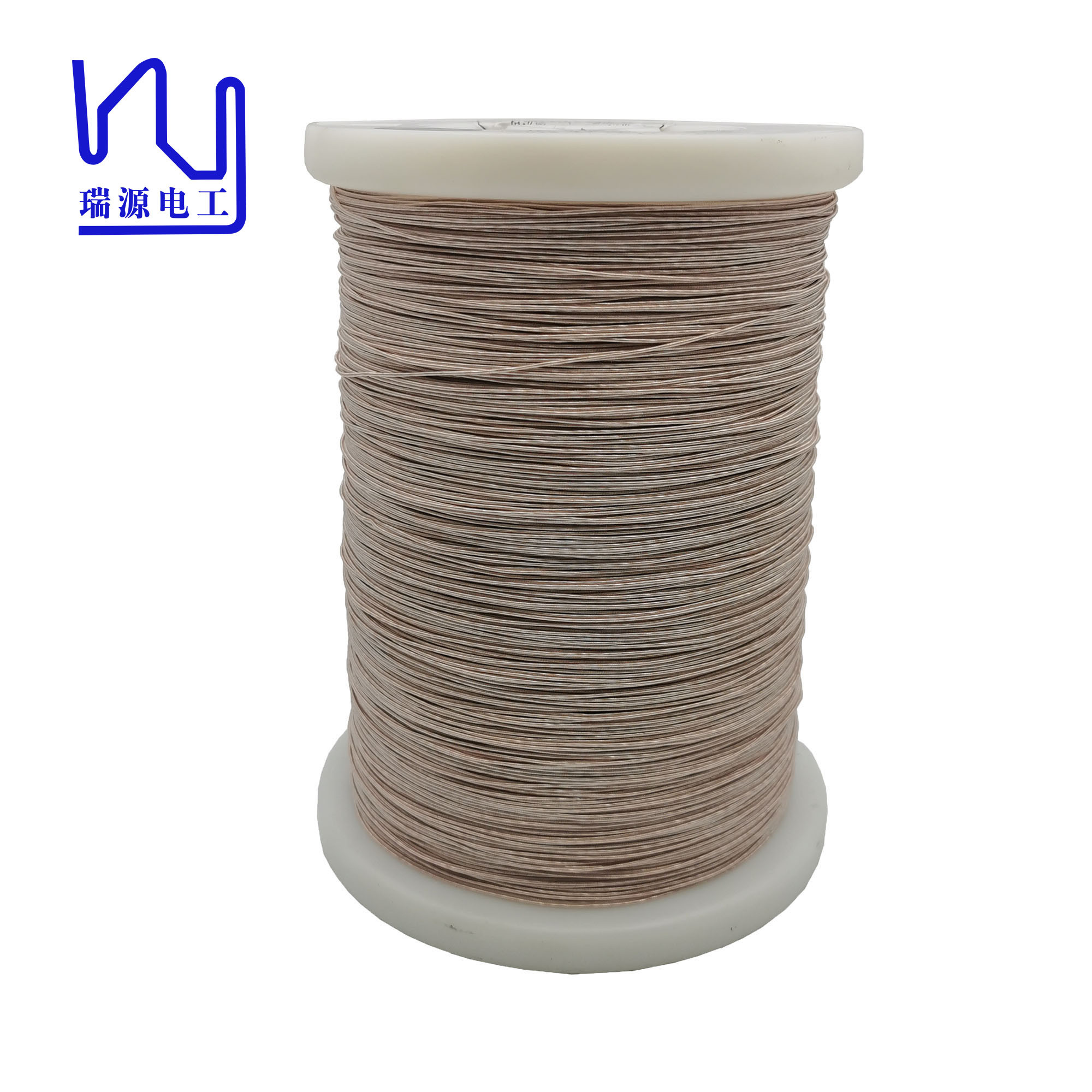

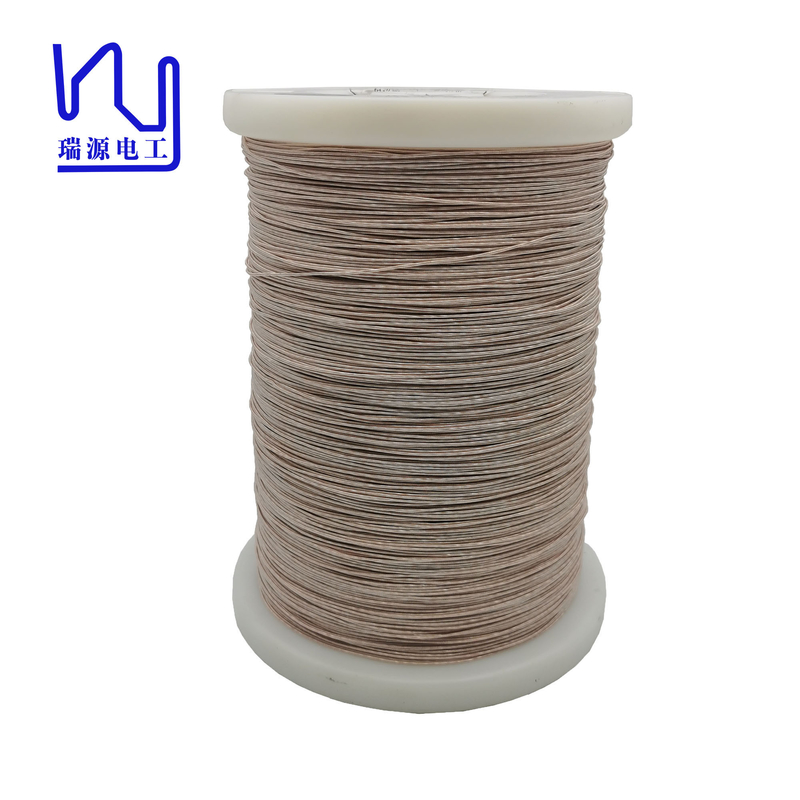

165*0.06mm High Frequency Stranded Copper Litz Wire
Telecommunications and data transmission systems benefit significantly from the use of nylon litz wire. Its ability to maintain signal integrity and minimize electromagnetic interference enables seamless data flow across various communications networks. In aerospace and avionics equipment where reliability and performance are critical, this wire ensures consistent signal quality even under harsh environmental conditions. Additionally, in medical equipment where accuracy and reliability are critical, nylon Litz wire's ability to accurately transmit signals is critical for diagnostic and therapeutic equipment.
|
Item |
Single wire diametermm |
Conductor diameter mm |
O.D.mm |
Resistance Ω/m |
Dielectric strength V |
Pitch(mm) |
|
Tech requirement |
0.072-0.098 |
0.06 |
1.32 |
0.04222 |
1600 |
26 faults/6m |
|
± |
|
0.003 |
Max. |
Max. |
Min. |
Max. |
|
sample 1 |
0.073 |
0.058 |
1.06 |
0.0378 |
2900 |
8 |
|
sample 2 |
0.076 |
0.06 |
1.13 |
0.0377 |
3100 |
6 |
