| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 10 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTC/UDTC-F/H 0.06mm Multi-strands Nylon Serving Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.06mm/38AWG | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC/UDTC-F/H 0.06mm Multi-strands Nylon Serving Copper Litz Wire |
| No. Of Strands: | 165 | ||
| Highlight: | 0.06mm litz copper cable,USTC litz copper cable,copper litz wire 0.06mm |
||

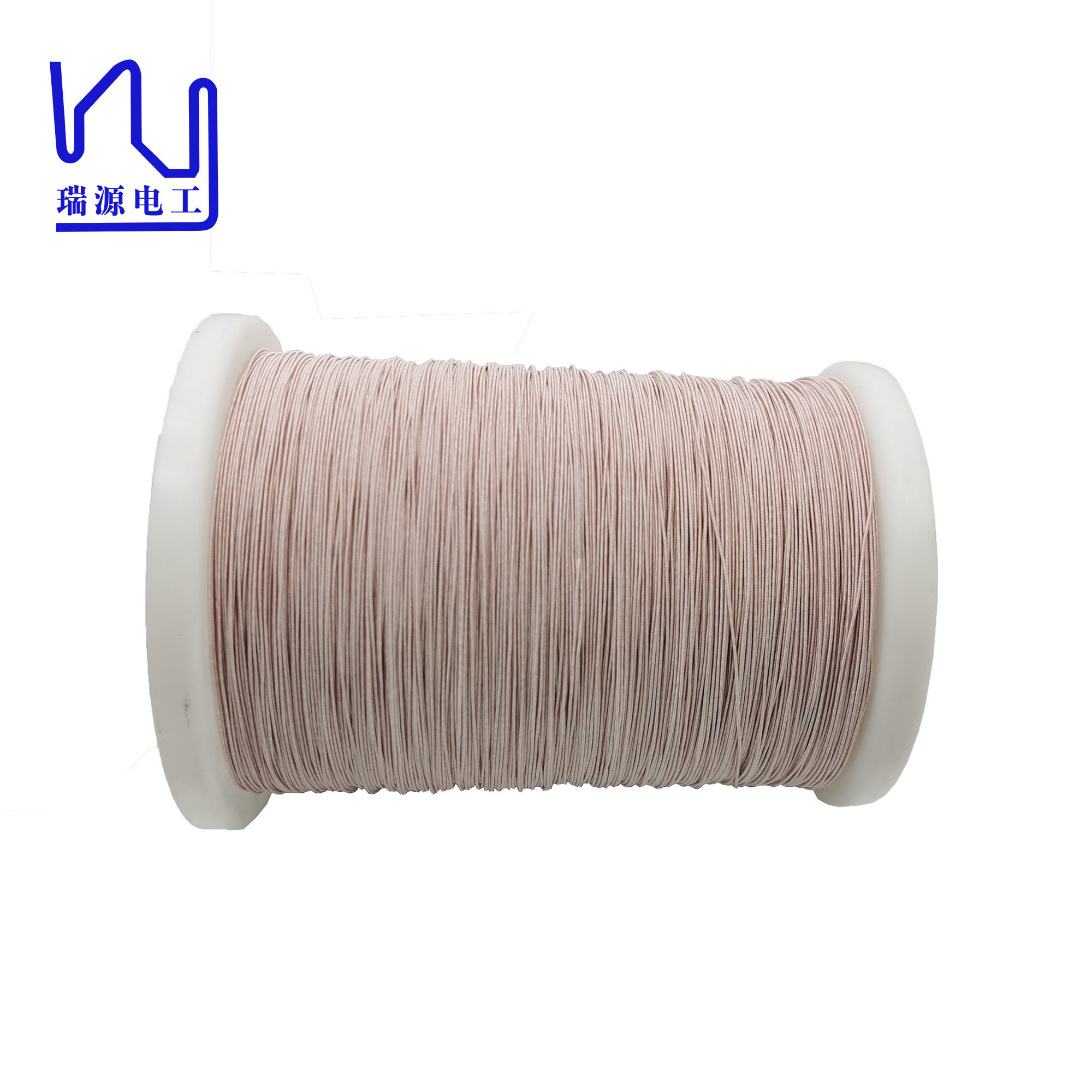

USTC/UDTC-F/H 0.06mm Multi-strands Nylon Serving Copper Litz Wire
In the field of signal transmission, nylon Litz wire is indispensable because it can minimize the skin effect and proximity effect, ensuring efficient and high-quality transmission of electrical signals. Its unique design features multiple individually insulated strands to reduce AC resistance, allowing for seamless transmission of high-frequency signals with minimal energy loss. This makes it ideal for applications such as telecommunications, aerospace, medical equipment and high-frequency equipment.
|
Item |
Single wire diametermm |
Conductor diameter mm |
O.D.mm |
Resistance Ω/m |
Dielectric strength V |
Pitch(mm) |
|
Tech requirement |
0.072-0.098 |
0.06 |
1.32 |
0.04222 |
1600 |
26 faults/6m |
|
± |
|
0.003 |
Max. |
Max. |
Min. |
Max. |
|
sample 1 |
0.073 |
0.058 |
1.06 |
0.0378 |
2900 |
8 |
|
sample 2 |
0.076 |
0.06 |
1.13 |
0.0377 |
3100 |
6 |
