| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 10 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 1USTC155 0.06mm*165 Nylon Served Litz Wire Copper Stranded Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.06mm/38AWG | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 1USTC155 0.06mm*165 Nylon Served Litz Wire Copper Stranded Wire |
| No. Of Strands: | 165 | ||
| Highlight: | 1ustc155 copper stranded wire,0.06mm copper stranded wire,165 stranded ustc litz wire |
||

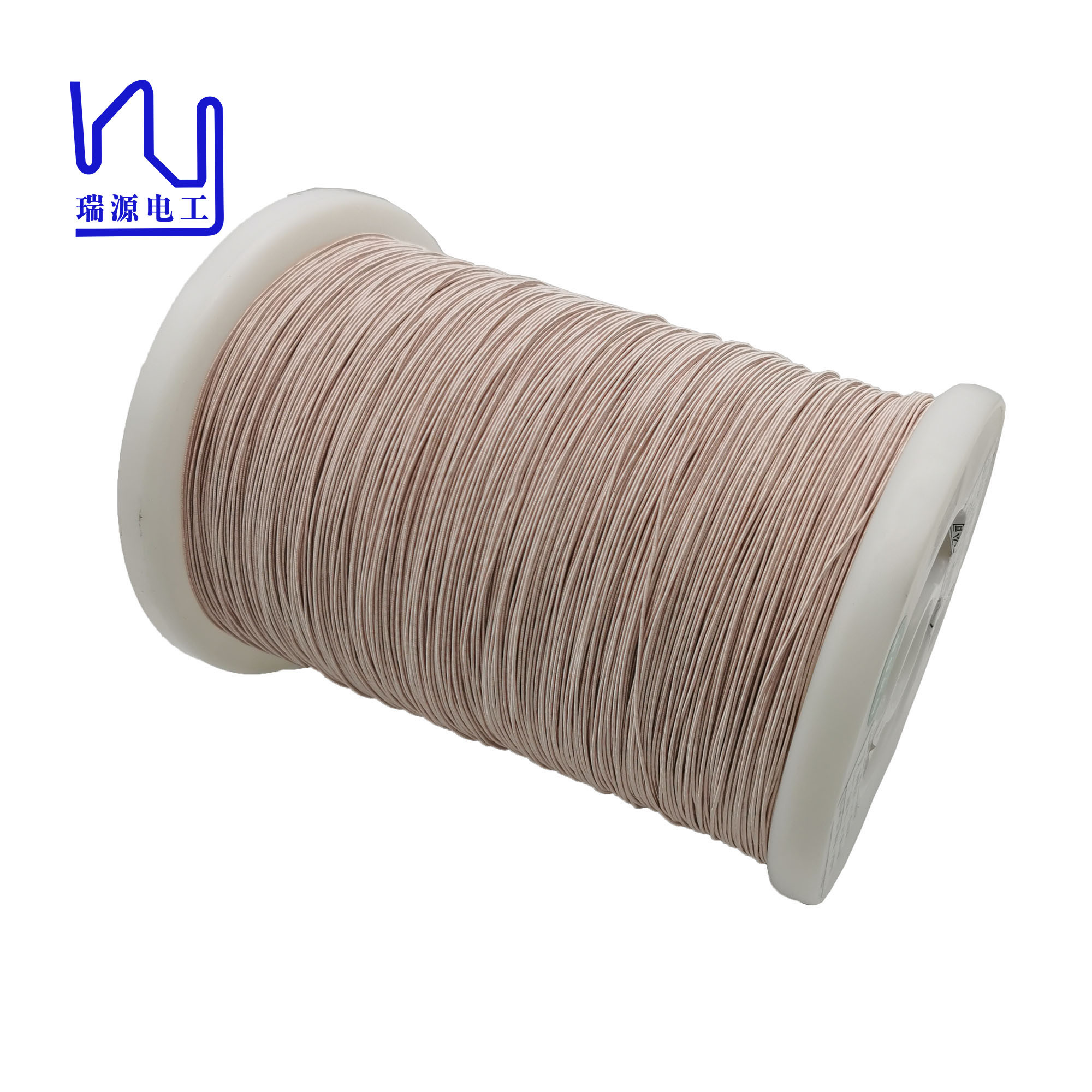

1USTC155 0.06mm*165 Nylon Served Litz Wire Copper Stranded Wire
The nylon served litz wire is custom-made to meet the customer's specific needs, using a 0.071mm diameter pure copper conductor, consisting of 84 strands, and wrapped with nylon yarn. Available in 155- and 180-degree temperature-resistant options, providing reliability in varying operating conditions. We can use enameled single wire with a minimum thickness of 0.025mm to make silk covered wire.
|
Item |
Single wire diametermm |
Conductor diameter mm |
O.D.mm |
Resistance Ω/m |
Dielectric strength V |
Pitch(mm) |
|
Tech requirement |
0.072-0.098 |
0.06 |
1.32 |
0.04222 |
1600 |
26 faults/6m |
|
± |
|
0.003 |
Max. |
Max. |
Min. |
Max. |
|
sample 1 |
0.073 |
0.058 |
1.06 |
0.0378 |
2900 |
8 |
|
sample 2 |
0.076 |
0.06 |
1.13 |
0.0377 |
3100 |
6 |
