| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 10 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | UL High-quality 0.1*16 2USTC-H Nylon Served Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm/38AWG | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | UL High-quality 0.1*16 2USTC-H Nylon Served Litz Wire |
| No. Of Strands: | 16 | ||
| Highlight: | 0.1mm compact stranded copper wire,ustc compact stranded copper wire,0.1mm ustc litz wire |
||

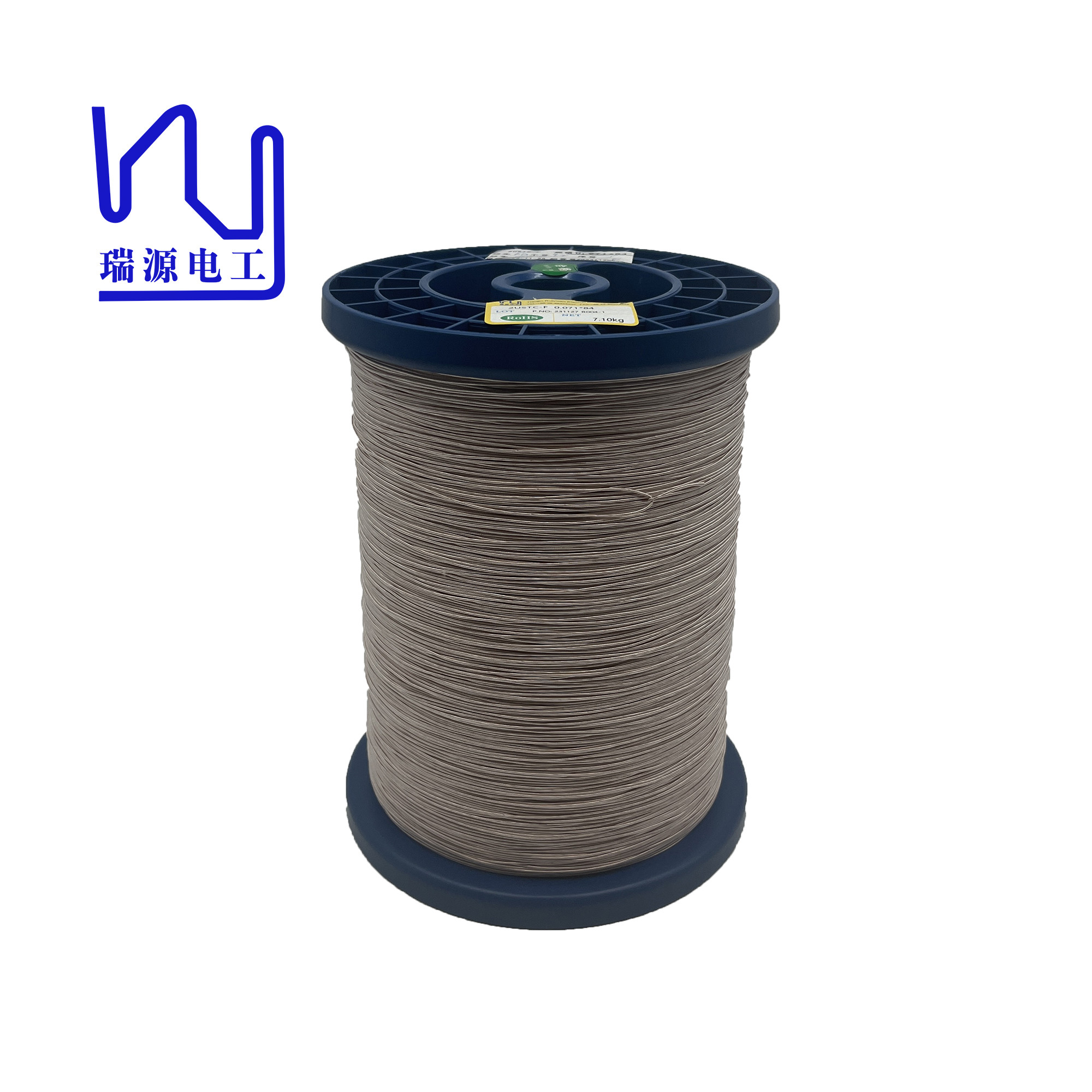

UL High-quality 0.1*16 2USTC-H Nylon Served Litz Wire
Nylon serving copper litz wire has important application value in electric vehicle charging piles. As a high-quality conductive material, nylon serving copper litz wire can provide excellent conductivity and stable current transmission performance, thereby ensuring an efficient charging process for electric vehicle charging systems. It is designed with multiple strands of fine copper wires twisted together, giving it good flexibility and durability, and can withstand long-term use without breaking or aging. The nylon coating can provide additional mechanical protection and wear resistance, effectively extending the service life of the charging pile cable. In electric vehicle charging piles, nylon serving copper litz wire is used to connect power transmission lines and charging plugs. Its efficient current transmission and stable signal transmission capabilities can ensure the safety and reliability of the charging process. In addition, its high temperature resistance and corrosion resistance allow it to work normally in harsh environmental conditions, meeting the high performance and reliability requirements of electric vehicle charging piles. Therefore, the application of nylon serving copper litz wire in electric vehicle charging piles can help improve charging efficiency, extend equipment service life, and enhance system stability and safety.
|
Test report: USTC-F 0.1mm*16 |
||
|
Item |
Technical standard |
Test result |
|
Appearance |
Smooth, no No slags |
Good |
|
Conductor diameter (mm) |
0.100±.0003 |
0.100 |
|
Outer conductor diameter(mm) |
0.110-0.125 |
0.114 |
|
No. Of strands |
16 |
16 |
|
Stranding direction |
S |
Good |
|
Pinhole |
6m faults≤ strands*2 |
1 |
|
Conductor resistance |
≤153.28 Ω/km(20℃) |
136 |
|
Breakdown voltage |
≥ 1.1KV |
3.7 |
|
Solderability 390±5℃ |
Smooth, no pinhole, no slags |
Good |
