| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 10 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom USTC UDTC 0.71mm 0.08mm High Frequency Nylon Serving Litz Wire Copper Conductor | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm/38AWG | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom USTC UDTC 0.71mm 0.08mm High Frequency Nylon Serving Litz Wire Copper Conductor |
| No. Of Strands: | 16 | ||
| Highlight: | 0.71mm ustc litz wire,udtc ustc litz wire,0.08mm copper litz wire |
||

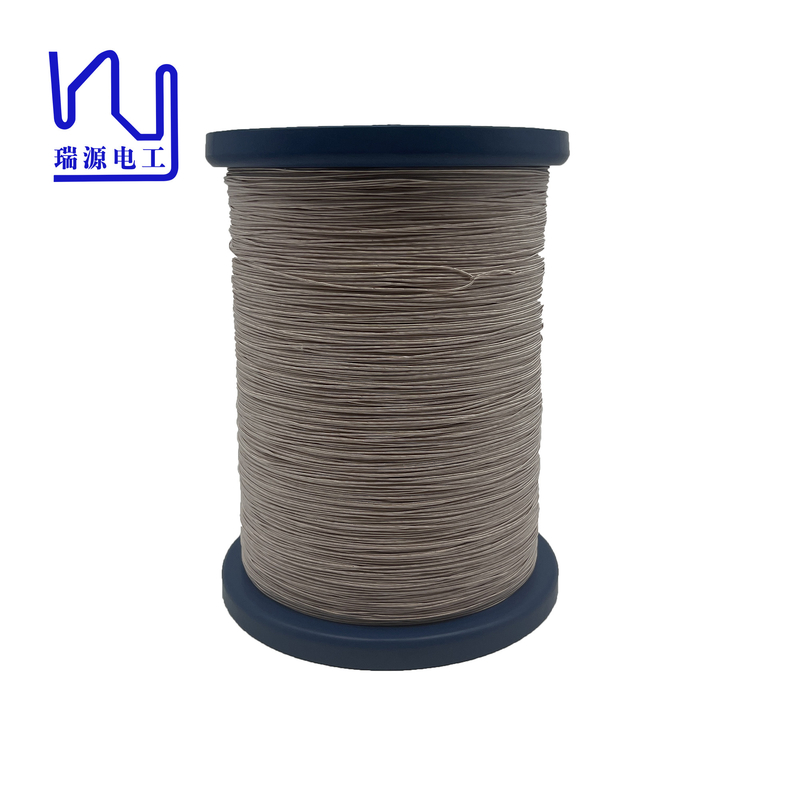

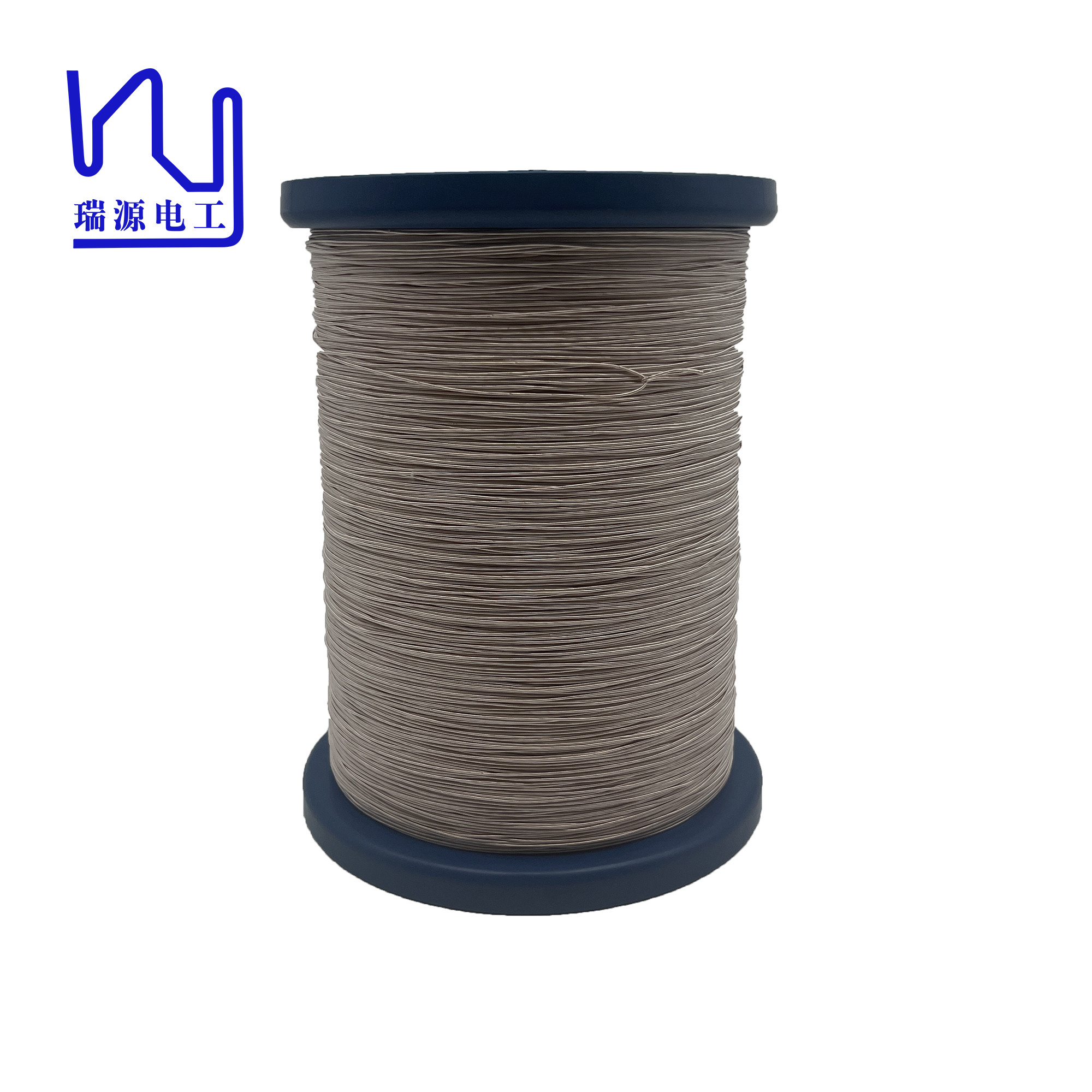

Custom USTC UDTC 0.71mm 0.08mm High Frequency Nylon Serving Litz Wire Copper Conductor
Nylon serving copper litz wire has a wide range of applications in the field of communication systems. It adopts a design made of multiple strands of fine copper wires twisted together, and its insulation layer is covered with nylon material, which can effectively protect the copper wires and reduce the level of electromagnetic interference. This design allows the material to be used to create high-performance transmission lines in communication systems. Due to the twisted structure of the copper wire and the protection of the nylon coating, this material has low resistance and loss, and can reduce interference and loss during signal transmission, thus ensuring the stability and reliability of the communication system. Therefore, nylon serving copper litz wire is widely used in the manufacturing of transmission lines, connecting wires and cables in communication systems, playing an important role in improving the performance and transmission quality of communication systems.
|
Test report: USTC-F 0.1mm*16 |
||
|
Item |
Technical standard |
Test result |
|
Appearance |
Smooth, no No slags |
Good |
|
Conductor diameter (mm) |
0.100±.0003 |
0.100 |
|
Outer conductor diameter(mm) |
0.110-0.125 |
0.114 |
|
No. Of strands |
16 |
16 |
|
Stranding direction |
S |
Good |
|
Pinhole |
6m faults≤ strands*2 |
1 |
|
Conductor resistance |
≤153.28 Ω/km(20℃) |
136 |
|
Breakdown voltage |
≥ 1.1KV |
3.7 |
|
Solderability 390±5℃ |
Smooth, no pinhole, no slags |
Good |
