| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 10 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom USTC 0.1*16 Strands Silk Covered Litz Wire For Motor Winding 10kg | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm/38AWG | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom USTC 0.1*16 Strands Silk Covered Litz Wire For Motor Winding 10kg |
| No. Of Strands: | 16 | ||
| Highlight: | ustc litz wire 38AWG,ustc litz wire motor winding,copper litz wire 38AWG |
||

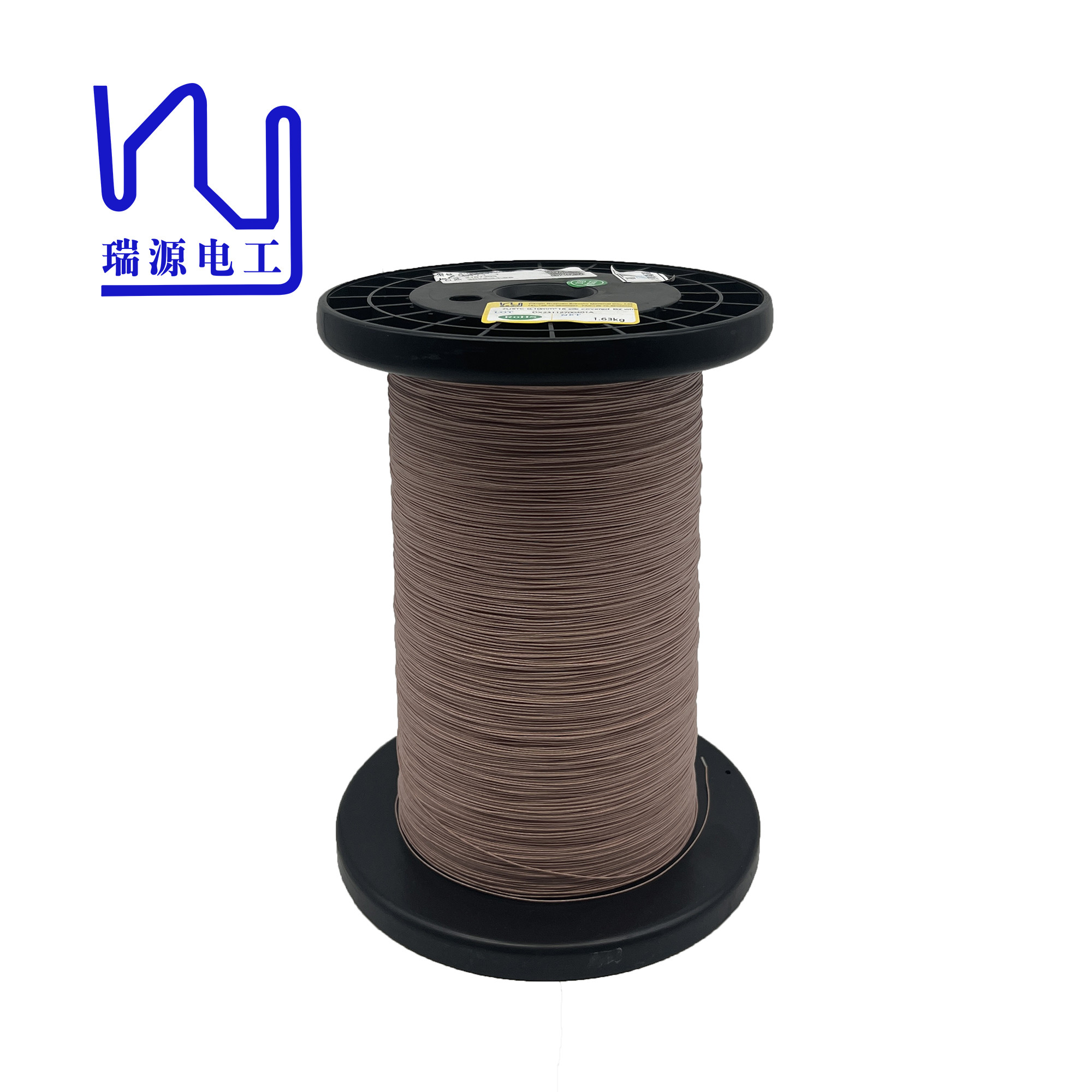

Custom USTC 0.1*16 Strands Silk Covered Litz Wire For Motor Winding 10kg
In our factory, we are committed to meeting the diverse needs of our customers, providing small batch customization of nylon litz wire, with a minimum order quantity of 20 kg. This ensures that businesses and manufacturers receive customized solutions that meet their specific requirements, promoting innovation and operational excellence.
|
Test report: USTC-F 0.1mm*16 |
||
|
Item |
Technical standard |
Test result |
|
Appearance |
Smooth, no No slags |
Good |
|
Conductor diameter (mm) |
0.100±.0003 |
0.100 |
|
Outer conductor diameter(mm) |
0.110-0.125 |
0.114 |
|
No. Of strands |
16 |
16 |
|
Stranding direction |
S |
Good |
|
Pinhole |
6m faults≤ strands*2 |
1 |
|
Conductor resistance |
≤153.28 Ω/km(20℃) |
136 |
|
Breakdown voltage |
≥ 1.1KV |
3.7 |
|
Solderability 390±5℃ |
Smooth, no pinhole, no slags |
Good |
