| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 10 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2UEW USTCH 0.1mm 0.102mm High Frequency Silk Covered Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm/38AWG | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2UEW USTCH 0.1mm 0.102mm High Frequency Silk Covered Litz Wire |
| No. Of Strands: | 16 | ||
| Highlight: | ustc litz wire 0.1 mm,2UEW ustc litz wire,copper litz wire 0.1 mm |
||

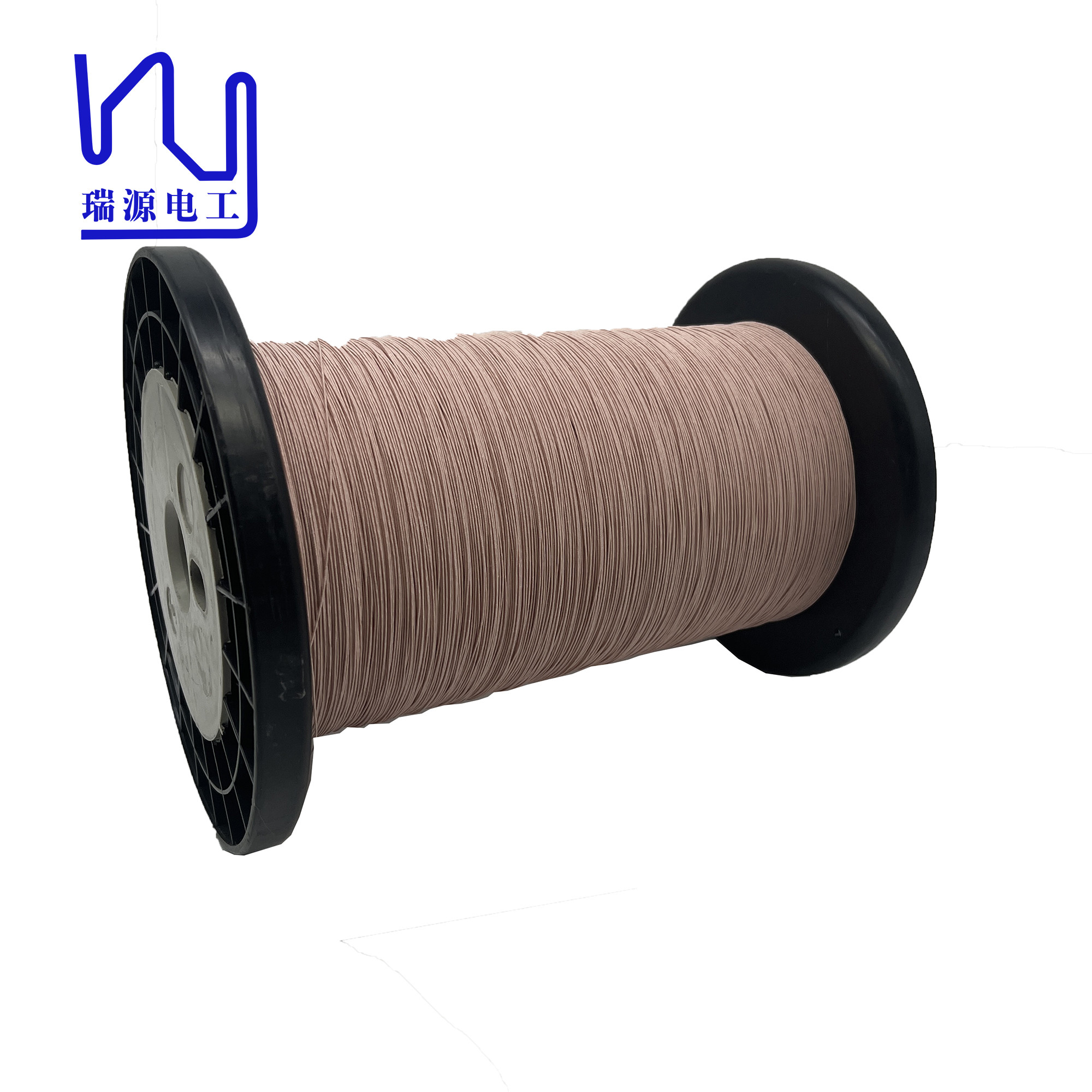

2UEW USTCH 0.1mm 0.102mm High Frequency Silk Covered Litz Wire
In the automotive sector, nylon litz wire has proven to improve the efficiency and reliability of various electrical systems within vehicles. Its unique composition enables it to significantly reduce electromagnetic interference (EMI) and radio frequency interference (RFI), making it ideal for critical applications in modern vehicles. Whether integrated into wiring harnesses, electronic control units or sensor systems, its ability to maintain signal integrity and minimize power loss helps improve overall vehicle performance and safety.
|
Test report: USTC-F 0.1mm*16 |
||
|
Item |
Technical standard |
Test result |
|
Appearance |
Smooth, no No slags |
Good |
|
Conductor diameter (mm) |
0.100±.0003 |
0.100 |
|
Outer conductor diameter(mm) |
0.110-0.125 |
0.114 |
|
No. Of strands |
16 |
16 |
|
Stranding direction |
S |
Good |
|
Pinhole |
6m faults≤ strands*2 |
1 |
|
Conductor resistance |
≤153.28 Ω/km(20℃) |
136 |
|
Breakdown voltage |
≥ 1.1KV |
3.7 |
|
Solderability 390±5℃ |
Smooth, no pinhole, no slags |
Good |
