| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 10 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.1mm*16 Solderable USTC-F Silk Covered Litz Wire Copper Conductor Solid | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm/38AWG | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.1mm*16 Solderable USTC-F Silk Covered Litz Wire Copper Conductor Solid |
| No. Of Strands: | 16 | ||
| Highlight: | solderable litz wire awg,ustc-f litz wire awg,copper conductor ustc litz wire |
||

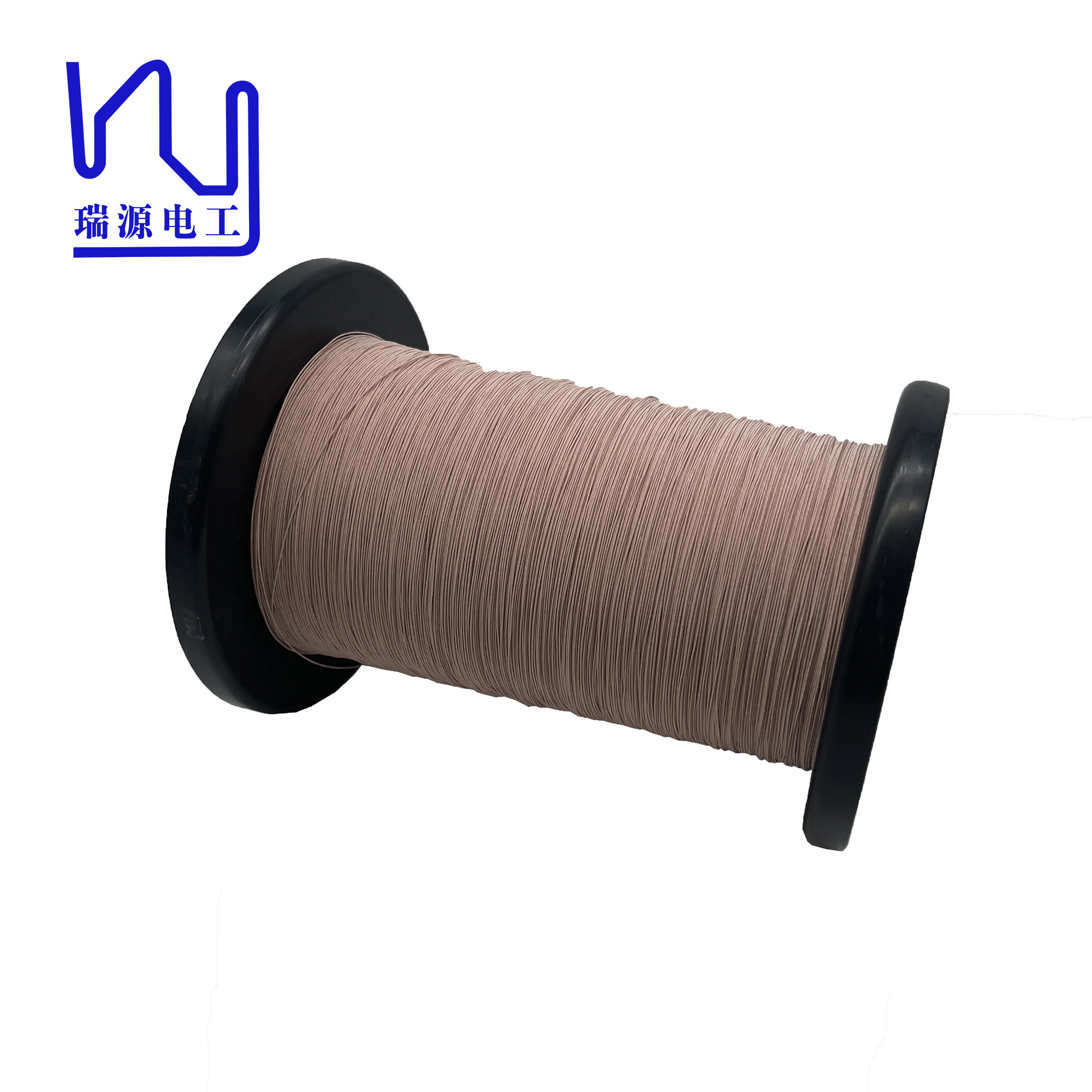

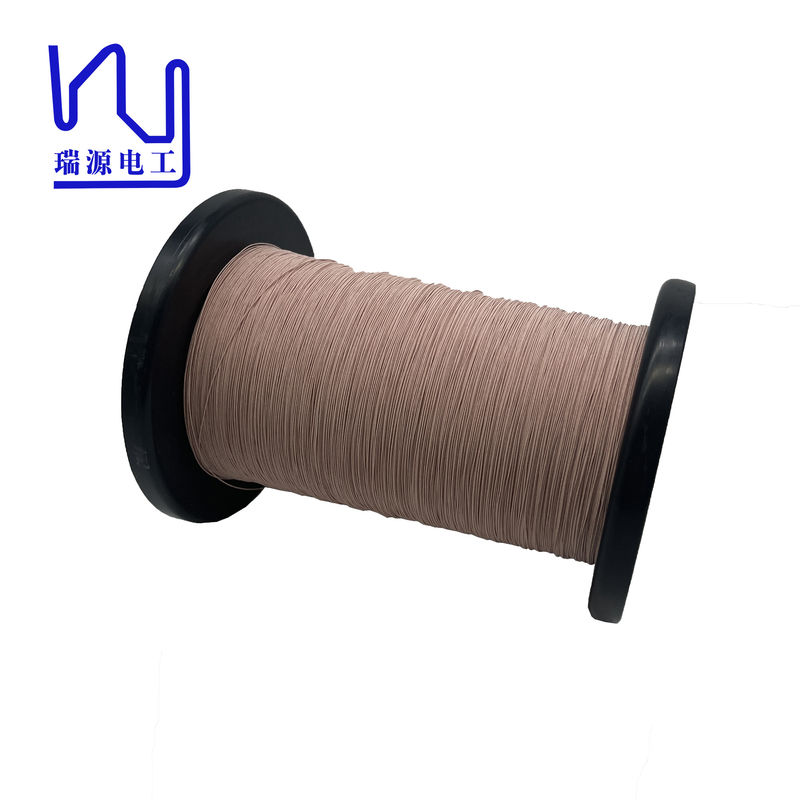

0.1mm*16 Solderable USTC-F Silk Covered Litz Wire Copper Conductor Solid
The nylon serving litz wire is precisely wound from 16 strands of 38 AWG enameled copper wire and wrapped in a protective layer of nylon yarn, custom made to meet specific requirements and deliver superior performance.
In the automotive sector, nylon litz wire has proven to improve the efficiency and reliability of various electrical systems within vehicles. Its unique composition enables it to significantly reduce electromagnetic interference (EMI) and radio frequency interference (RFI), making it ideal for critical applications in modern vehicles.
| Test report: USTC-F 0.1mm*16 | ||
| Item | Technical standard | Test result |
| Appearance | Smooth, no No slags | Good |
| Conductor diameter (mm) | 0.100±.0003 | 0.100 |
| Outer conductor diameter(mm) | 0.110-0.125 | 0.114 |
| No. Of strands | 16 | 16 |
| Stranding direction | S | Good |
| Pinhole | 6m faults≤ strands*2 | 1 |
| Conductor resistance | ≤153.28 Ω/km(20℃) | 136 |
| Breakdown voltage | ≥ 1.1KV | 3.7 |
| Solderability 390±5℃ | Smooth, no pinhole, no slags | Good |
