| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.071mm Magnet Wire Silk Covered Insulated Solid USTC Litz Copper Wire For Transformer | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.071mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.071mm Magnet Wire Silk Covered Insulated Solid USTC Litz Copper Wire For Transformer |
| No. Of Strands: | 84 | ||
| Highlight: | 0.071mm litz wire winding,litz wire winding transformer,0.071mm ustc litz wire |
||

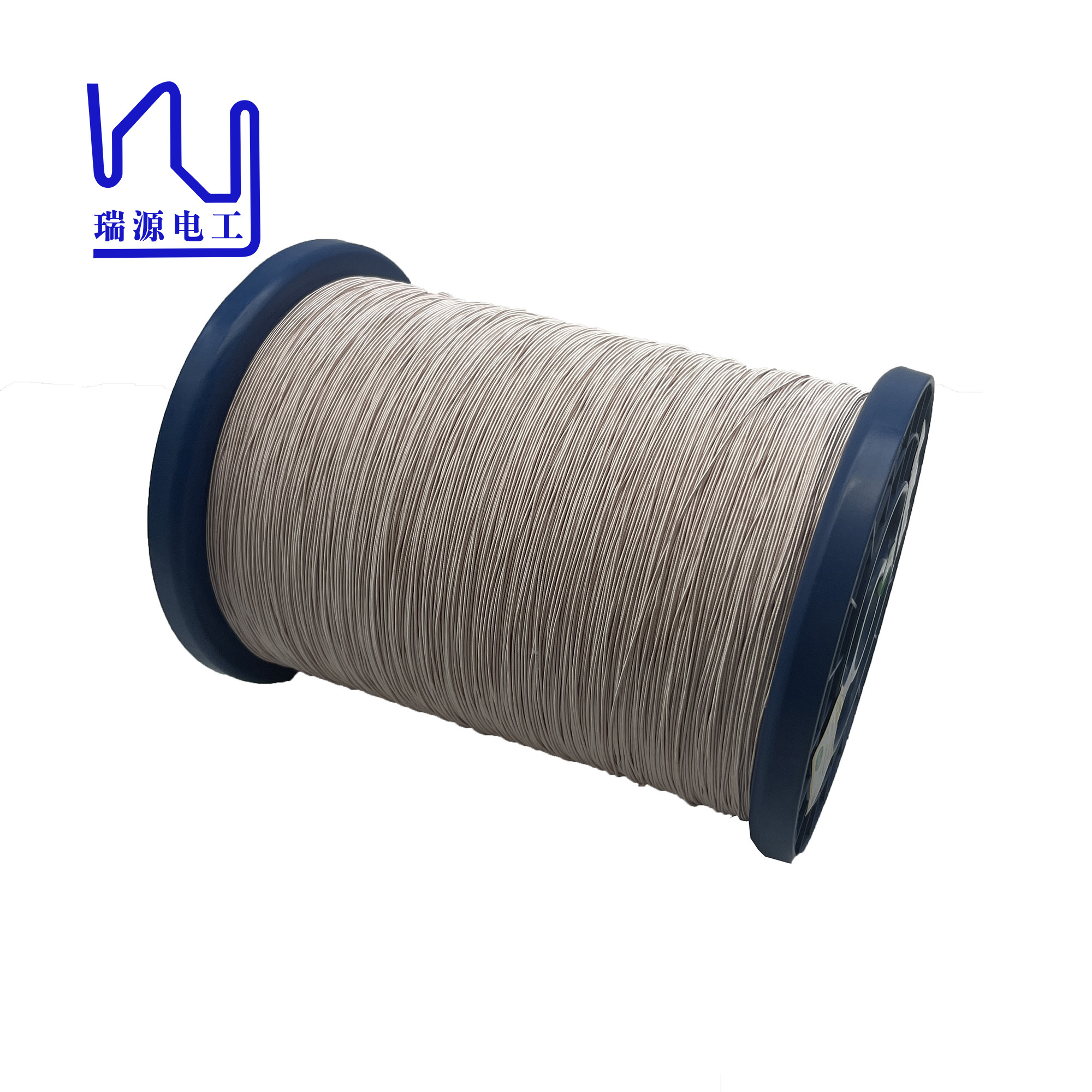

0.071mm Magnet Wire Silk Covered Insulated Solid USTC Litz Copper Wire For Transformer
Due to the special structure of nylon copper litz wire, it is ideal for applications that are subject to bending, twisting or other forms of mechanical stress. The unique design of nylon copper litz wire helps reduce skin effect and proximity effect, allowing the wire to maintain stable and efficient performance even at high frequencies.
|
|
Single wire diameter mm |
Conductor diameter mm |
O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Pitch (mm) |
Pinhole(6m) |
Solder Ability 390± 5℃ 9s |
| Ttech requirement |
0.077-0.084 |
0.071 |
1.04 |
0.05940 |
950 |
29 |
40 |
Smooth, no shed |
| ± | 0.003 | Max | Max. | Min | 5 | Max | ||
| 1 | 0.078 | 0.068 | 0.85 | 0.0541 | 3400 | √ | 7 | √ |
| 2 | 0.081 | 0.070 | 0.90 | 0.0540 | 3000 | √ | 8 | √ |
