| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | HF 0.071mm*84 Mult Strands Litz Wire Nylon Serving Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.071mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | HF 0.071mm*84 Mult Strands Litz Wire Nylon Serving Copper Litz Wire |
| No. Of Strands: | 84 | ||
| Highlight: | 84 stranded ustc litz wire,nylon serving ustc litz wire,84 stranded copper litz wire |
||

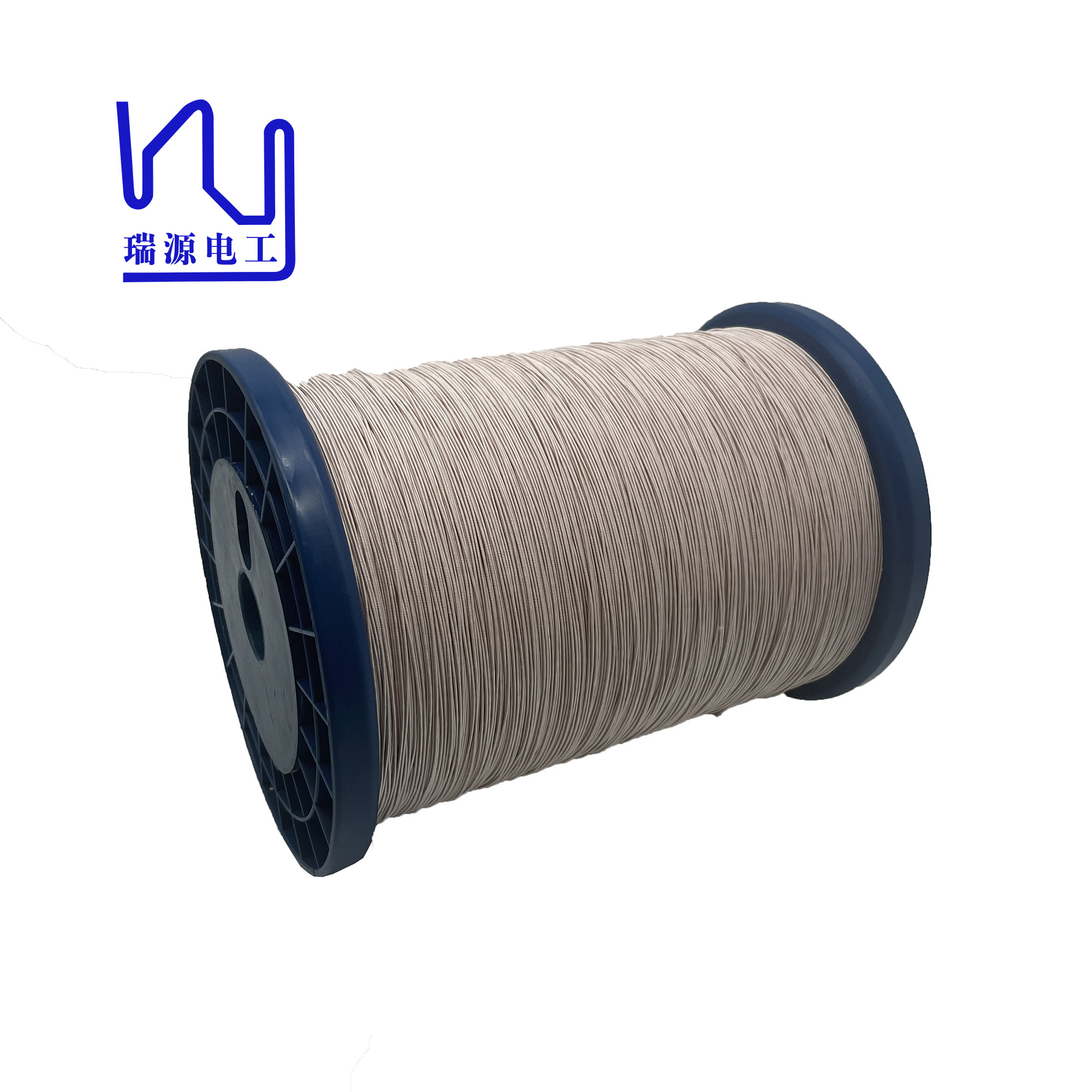

HF 0.071mm*84 Mult Strands Litz Wire Nylon Serving Copper Litz Wire
In addition to nylon yarn, we can also choose polyester yarn and natural silk according to the design and requirements of your product.
This nylon copper litz wire is a customized product, an enameled copper wire with a single wire diameter of 0.071mm, which is made of 84 strands of enameled copper wires tightly twisted.
|
|
Single wire diameter mm |
Conductor diameter mm |
O.D.mm |
Resistance Ω/m(20℃) |
Dielectric strength v |
Pitch (mm) |
Pinhole(6m) |
Solder Ability 390± 5℃ 9s |
| Ttech requirement |
0.077-0.084 |
0.071 |
1.04 |
0.05940 |
950 |
29 |
40 |
Smooth, no shed |
| ± | 0.003 | Max | Max. | Min | 5 | Max | ||
| 1 | 0.078 | 0.068 | 0.85 | 0.0541 | 3400 | √ | 7 | √ |
| 2 | 0.081 | 0.070 | 0.90 | 0.0540 | 3000 | √ | 8 | √ |
