| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | UL High-quality 0.08*270 2USTC-H Nylon Served Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | UL High-quality 0.08*270 2USTC-H Nylon Served Litz Wire |
| No. Of Strands: | 270 | ||
| Highlight: | ustc litz wire nylon served,ul copper litz wire,copper litz wire nylon served |
||

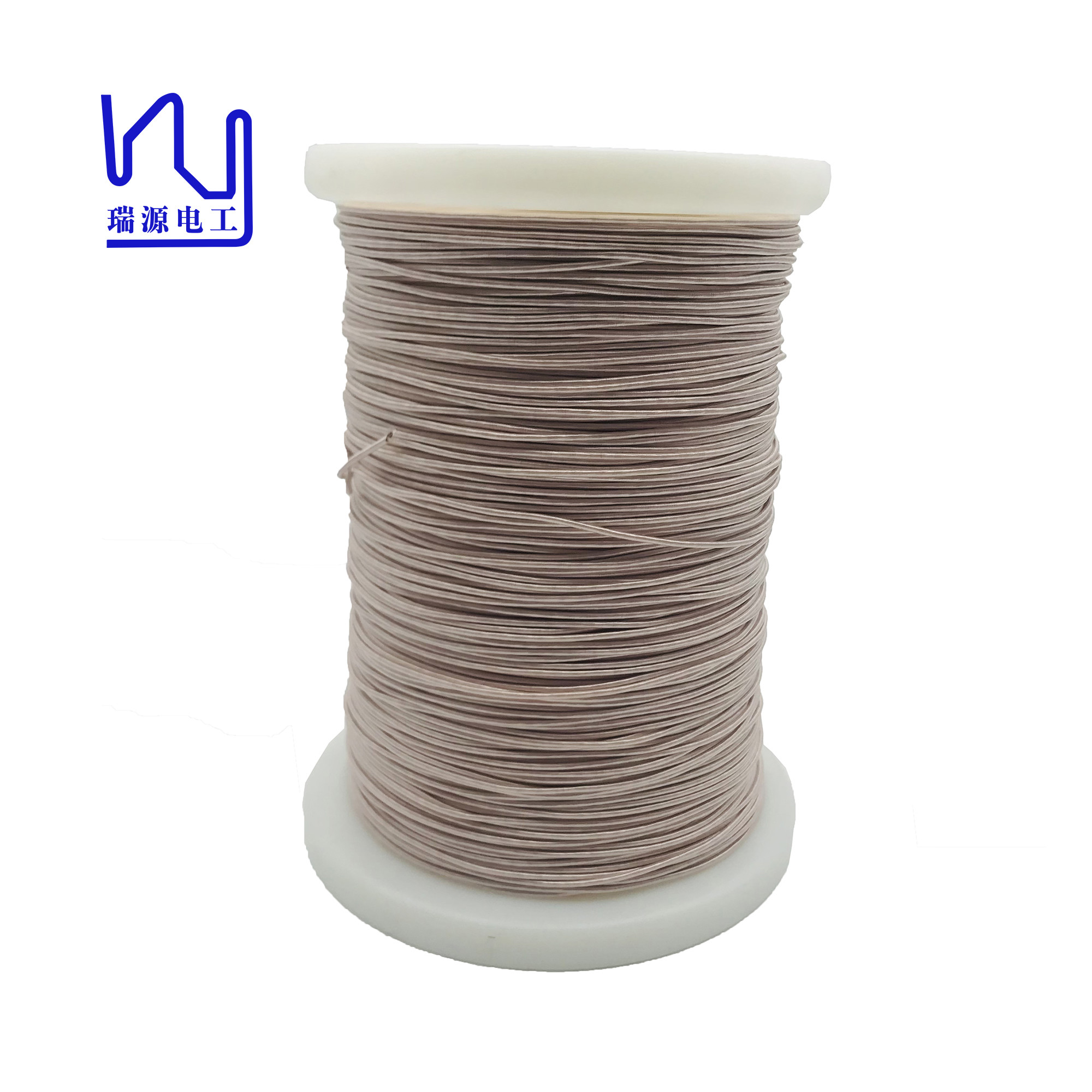

UL High-quality 0.08*270 2USTC-H Nylon Served Litz Wire
Effective Insulation: Nylon or silk coatings provide an additional layer of insulation to protect wires from external factors such as moisture, heat, and mechanical stress. This helps extend the service life of the transformer and ensures safe and reliable operation.
Whether you require a polyester coating or a natural silk coating, we can meet your specific needs and provide a high-quality solution for your transformer application.
|
Characteristics |
Technical requests |
Test Results |
|
Conductor diameter(mm) |
0.08±0.003 |
0.038-0.080 |
|
Overall conductor diameter(mm) |
0.087-0.103 |
0.090-0.093 |
|
No. Of strands |
270 |
√ |
|
Maximum outer diameter(mm) |
2.30 |
1.75-1.81 |
|
Pitch(mm) |
27±3 |
√ |
|
Maximum Resistance(Ω/m 20℃) |
0.01398 |
0.01296 |
|
Minimum Breakdown Voltage(V) |
1100 |
2700 |
|
Solderability |
380±5℃, 9s |
√ |
|
Pinhole(faults/6m) |
Max. 66 |
10 |
|
Key word:UL High-quality 0.08*270 2USTC-H Nylon Served Litz Wire |
