| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.08mm*270 Stranded Enameled Copper Magnet Wire Nylon Serving Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.08mm*270 Stranded Enameled Copper Magnet Wire Nylon Serving Litz Wire |
| No. Of Strands: | 270 | ||
| Highlight: | litz enameled copper magnet wire,nylon serving enameled copper magnet wire,0.08mm*270 stranded enamelled wire |
||

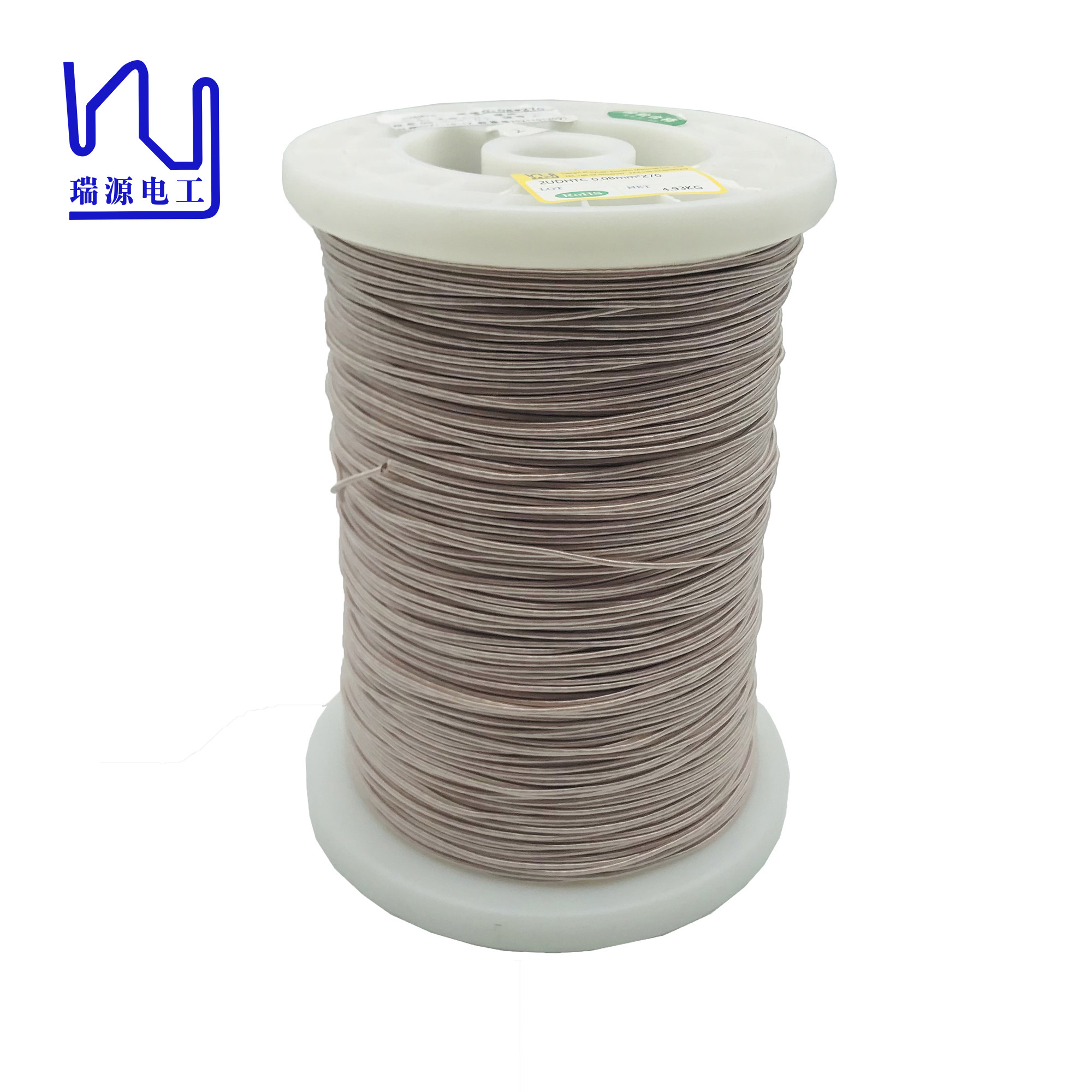

0.08mm*270 Stranded Enameled Copper Magnet Wire Nylon Serving Litz Wire
Enhanced Flexibility: Compared to traditional solid wire or cable, Nylon served Litz Wire's use of multiple strands provides greater flexibility, making it easier to wrap around the transformer core. This flexibility not only simplifies the manufacturing process but also improves the overall performance of the transformer.
|
Characteristics |
Technical requests |
Test Results |
|
Conductor diameter(mm) |
0.08±0.003 |
0.038-0.080 |
|
Overall conductor diameter(mm) |
0.087-0.103 |
0.090-0.093 |
|
No. Of strands |
270 |
√ |
|
Maximum outer diameter(mm) |
2.30 |
1.75-1.81 |
|
Pitch(mm) |
27±3 |
√ |
|
Maximum Resistance(Ω/m 20℃) |
0.01398 |
0.01296 |
|
Minimum Breakdown Voltage(V) |
1100 |
2700 |
|
Solderability |
380±5℃, 9s |
√ |
|
Pinhole(faults/6m) |
Max. 66 |
10 |
|
Key word:0.08mm*270 Stranded Enameled Copper Magnet Wire Nylon Serving Litz Wire |
