| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom-Made 0.08mm Silk Covered Litz Wire For High Frequency Transformer | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom-Made 0.08mm Silk Covered Litz Wire For High Frequency Transformer |
| No. Of Strands: | 270 | ||
| Highlight: | custom made ustc litz wire,ustc litz wire silk covered,high frequency transformer enamelled wire |
||

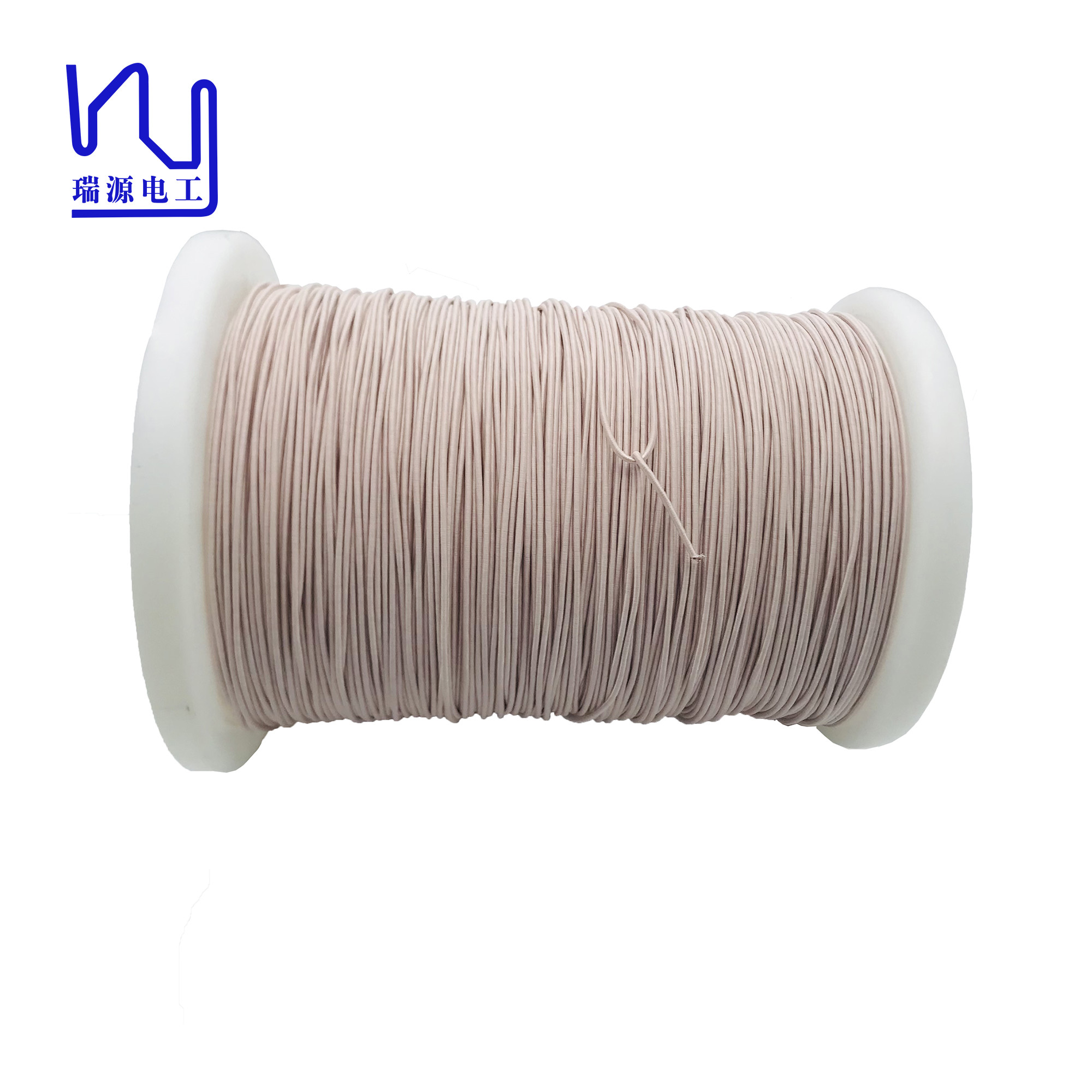

Custom-Made 0.08mm Silk Covered Litz Wire For High Frequency Transformer
The main advantages of using nylon Litz wire in transformer windings are its unique construction and properties. The combination of numerous fine wires and protective coating ensures enhanced performance and durability.
Improved efficiency: The twisted structure of the conductors reduces the formation of eddy currents, thereby increasing the efficiency of the transformer. Thin wire also helps reduce the skin effect, the tendency of alternating current to concentrate on the surface of a conductor.
|
Characteristics |
Technical requests |
Test Results |
|
Conductor diameter(mm) |
0.08±0.003 |
0.038-0.080 |
|
Overall conductor diameter(mm) |
0.087-0.103 |
0.090-0.093 |
|
No. Of strands |
270 |
√ |
|
Maximum outer diameter(mm) |
2.30 |
1.75-1.81 |
|
Pitch(mm) |
27±3 |
√ |
|
Maximum Resistance(Ω/m 20℃) |
0.01398 |
0.01296 |
|
Minimum Breakdown Voltage(V) |
1100 |
2700 |
|
Solderability |
380±5℃, 9s |
√ |
|
Pinhole(faults/6m) |
Max. 66 |
10 |
|
Key word:Custom-Made 0.08mm Silk Covered Litz Wire For High Frequency Transformer |
