| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom 0.08mm X 270 HF Nylon Serving Copper Litz Wire For Motor Winding | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom 0.08mm X 270 HF Nylon Serving Copper Litz Wire For Motor Winding |
| No. Of Strands: | 270 | ||
| Highlight: | custom copper litz wire,motor winding copper litz wire,nylon serving enamel coated wire |
||

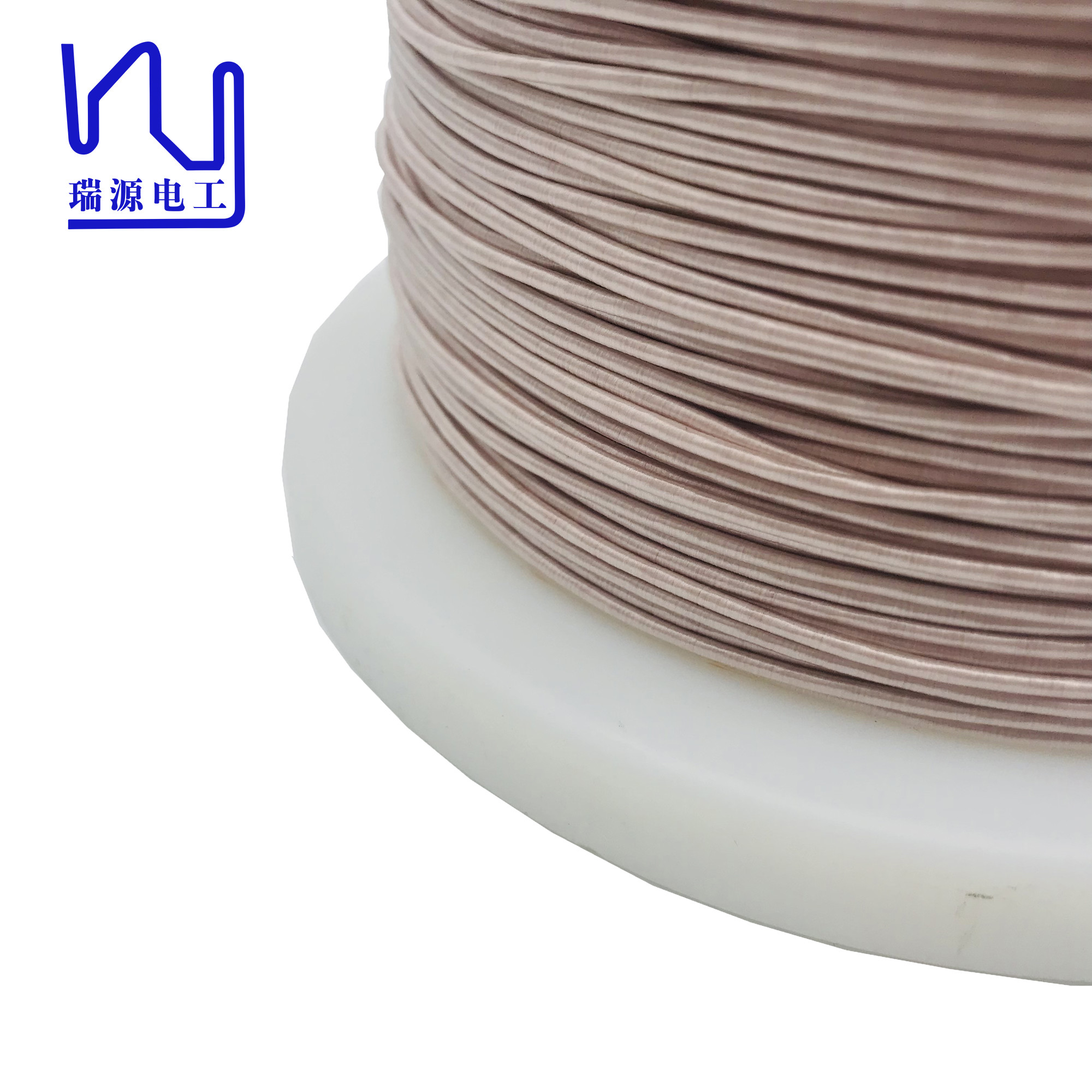

Custom 0.08mm x 270 HF Nylon Serving Copper Litz Wire For Motor Winding
The main advantages of using nylon Litz wire in transformer windings are its unique construction and properties. The combination of numerous fine wires and protective coating ensures enhanced performance and durability.
Reduce power loss: Nylon severed Litz wire exhibits excellent electrical conductivity due to its high-quality copper conductor. This feature minimizes power losses during energy transfer within the transformer, thereby increasing overall efficiency.
.
|
Characteristics |
Technical requests |
Test Results |
|
Conductor diameter(mm) |
0.08±0.003 |
0.038-0.080 |
|
Overall conductor diameter(mm) |
0.087-0.103 |
0.090-0.093 |
|
No. Of strands |
270 |
√ |
|
Maximum outer diameter(mm) |
2.30 |
1.75-1.81 |
|
Pitch(mm) |
27±3 |
√ |
|
Maximum Resistance(Ω/m 20℃) |
0.01398 |
0.01296 |
|
Minimum Breakdown Voltage(V) |
1100 |
2700 |
|
Solderability |
380±5℃, 9s |
√ |
|
Pinhole(faults/6m) |
Max. 66 |
10 |
|
Key word:Custom 0.08mm x 270 HF Nylon Serving Copper Litz Wire For Motor Winding |
