| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTC 0.04mm Strands Silk Covered Litz Wire Twisted Enameled Copper Wire Used For Motor | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC 0.04mm Strands Silk Covered Litz Wire Twisted Enameled Copper Wire Used For Motor |
| No. Of Strands: | 145 | ||
| Highlight: | 0.04mm ustc litz wire,motor ustc litz wire,0.04mm enamel coated magnet wire |
||

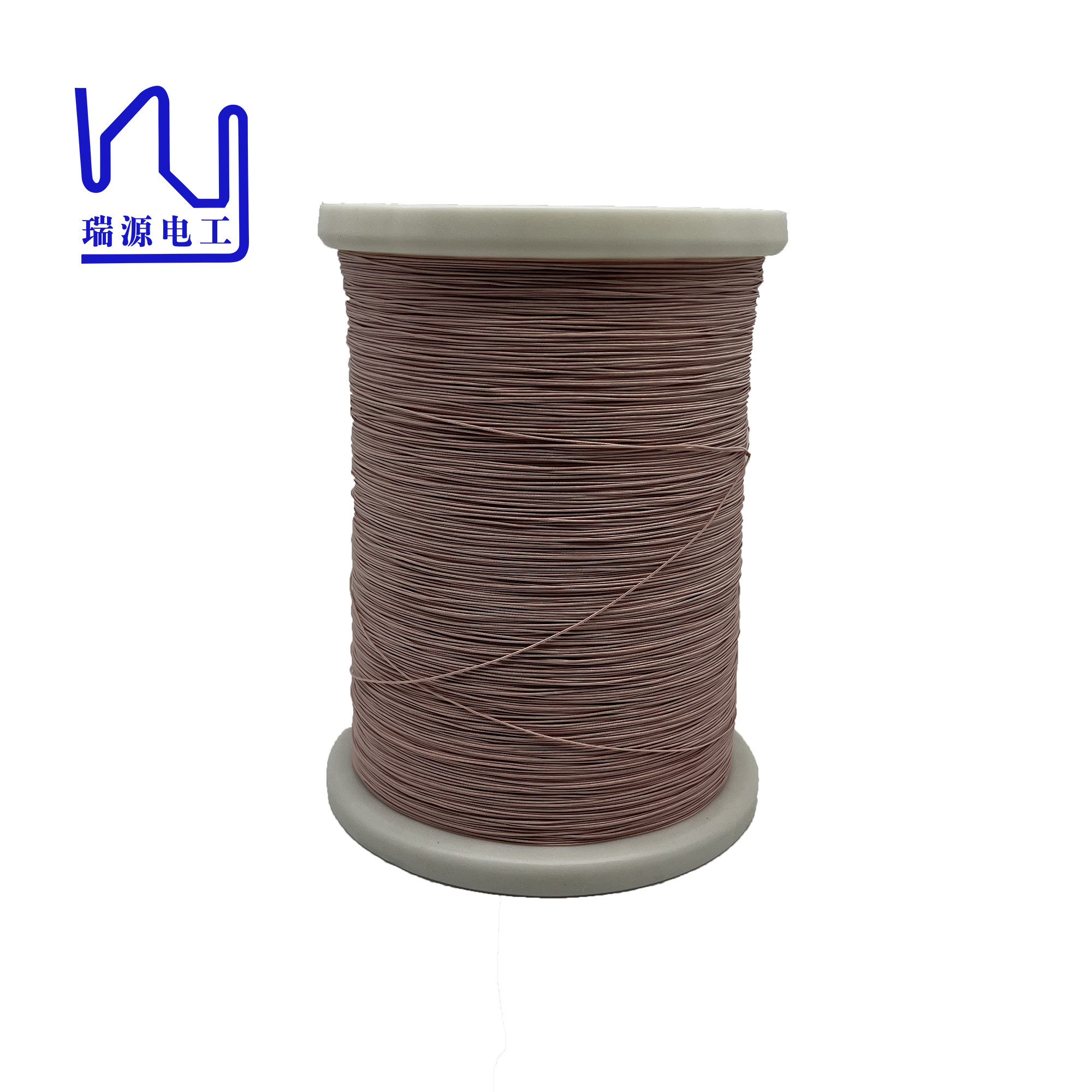

USTC 0.04mm Strands Silk Covered Litz Wire Twisted Enameled Copper Wire Used For Motor
Nylon served Litz Wire is the first choice for motor manufacturers looking for superior quality and performance.
Thanks to its precise manufacturing process, excellent temperature resistance and excellent electrical conductivity, this wire guarantees optimal functionality and durability in the most demanding environments. Trust Nylon Copper Litz Wire to provide your motor with superior performance levels.
| Description Conductor diameter*Strand number |
2USTC-F 0.04*150 | Test result(mm) | ||
Single wire |
Conductor diameter(mm) | 0.04±0.002 | 0.038 | 0.040 |
| Outer conductor diameter(mm) | 0.044-0.056 | 0.047 | 0.049 | |
| Maximal overall diameter (mm) | 0.83 | 0.60 | 0.66 | |
| Pitch(mm) | 29±5 | √ | √ | |
| Max resistance (Ω/Km at20℃) | Max. 0.1081 | 0.0980 | 0.0981 | |
| Mini breakdown voltage (V ) | 500 | 2500 | 2600 | |
|
Key word:USTC 0.04mm Strands Silk Covered Litz Wire Twisted Enameled Copper Wire Used For Motor |
