| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.04X 145 Silk Covered Insulated Solid Nylon Uew/polyester USTC Litz Copper Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.04X 145 Silk Covered Insulated Solid Nylon Uew/polyester USTC Litz Copper Wire |
| No. Of Strands: | 145 | ||
| Highlight: | polyester ustc litz wire,self bonding ustc litz wire,polyester self bonding magnet wire |
||

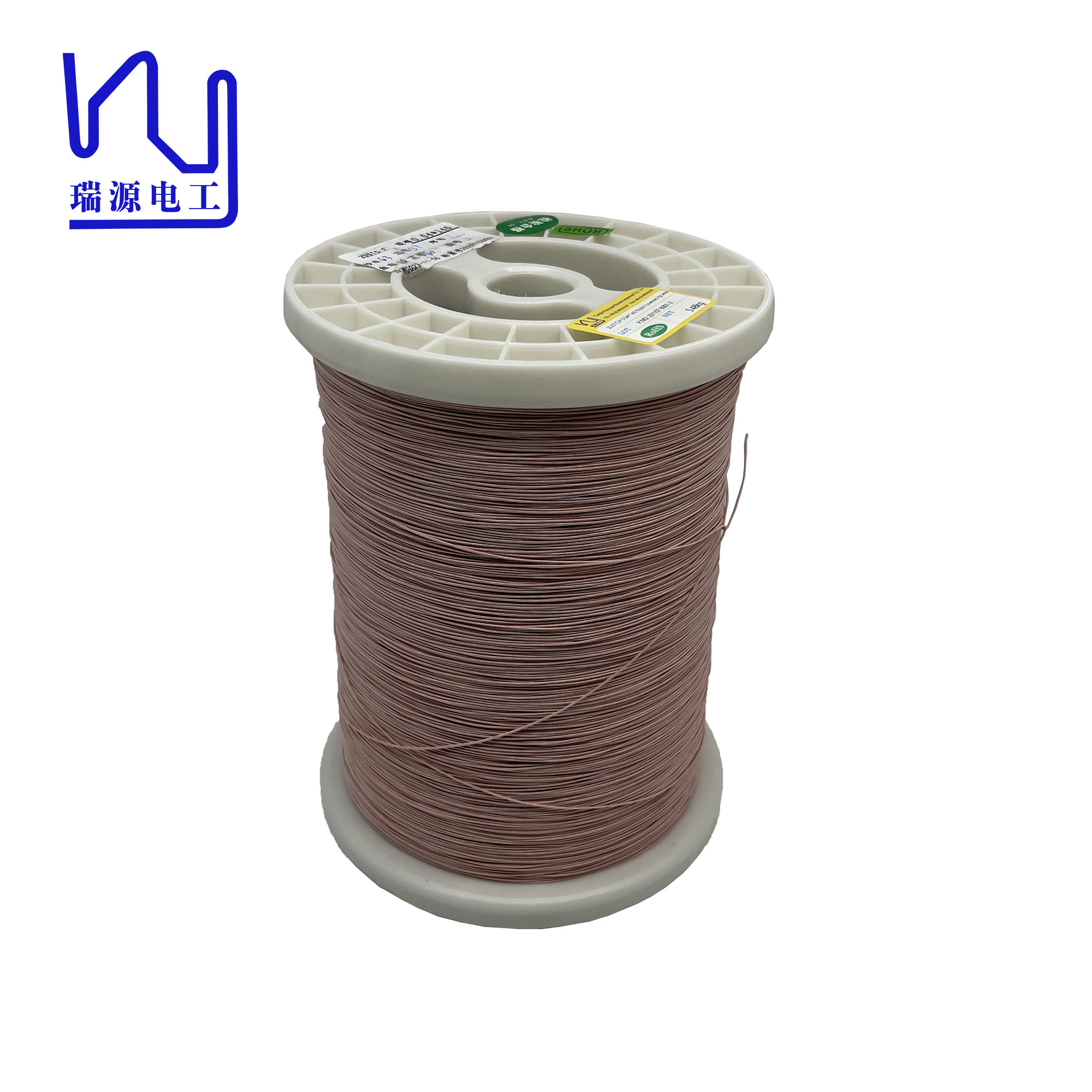

0.04X 145 Silk Covered Insulated Solid Nylon Uew/polyester USTC Litz Copper Wire
In terms of applications, nylon copper litz wire shines in the field of motor manufacturing. Its superior electrical conductivity reduces power losses and increases energy efficiency, allowing motors to operate more efficiently and reliably.
Additionally, its flexibility allows complex winding configurations, allowing electrical engineers to create compact, lightweight designs without compromising performance.
| Description Conductor diameter*Strand number |
2USTC-F 0.04*150 | Test result(mm) | ||
Single wire |
Conductor diameter(mm) | 0.04±0.002 | 0.038 | 0.040 |
| Outer conductor diameter(mm) | 0.044-0.056 | 0.047 | 0.049 | |
| Maximal overall diameter (mm) | 0.83 | 0.60 | 0.66 | |
| Pitch(mm) | 29±5 | √ | √ | |
| Max resistance (Ω/Km at20℃) | Max. 0.1081 | 0.0980 | 0.0981 | |
| Mini breakdown voltage (V ) | 500 | 2500 | 2600 | |
|
Key word:0.04X 145 Silk Covered Insulated Solid Nylon Uew/polyester USTC Litz Copper Wire |
