| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 5 X 0.06mm High Frequency Stranded Silk Covered Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.06mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 5 X 0.06mm High Frequency Stranded Silk Covered Litz Wire |
| No. Of Strands: | 5 | ||
| Highlight: | 5 x 0.06mm high frequency litz wire,enamelled copper high frequency litz wire,ustc enamelled copper wire |
||

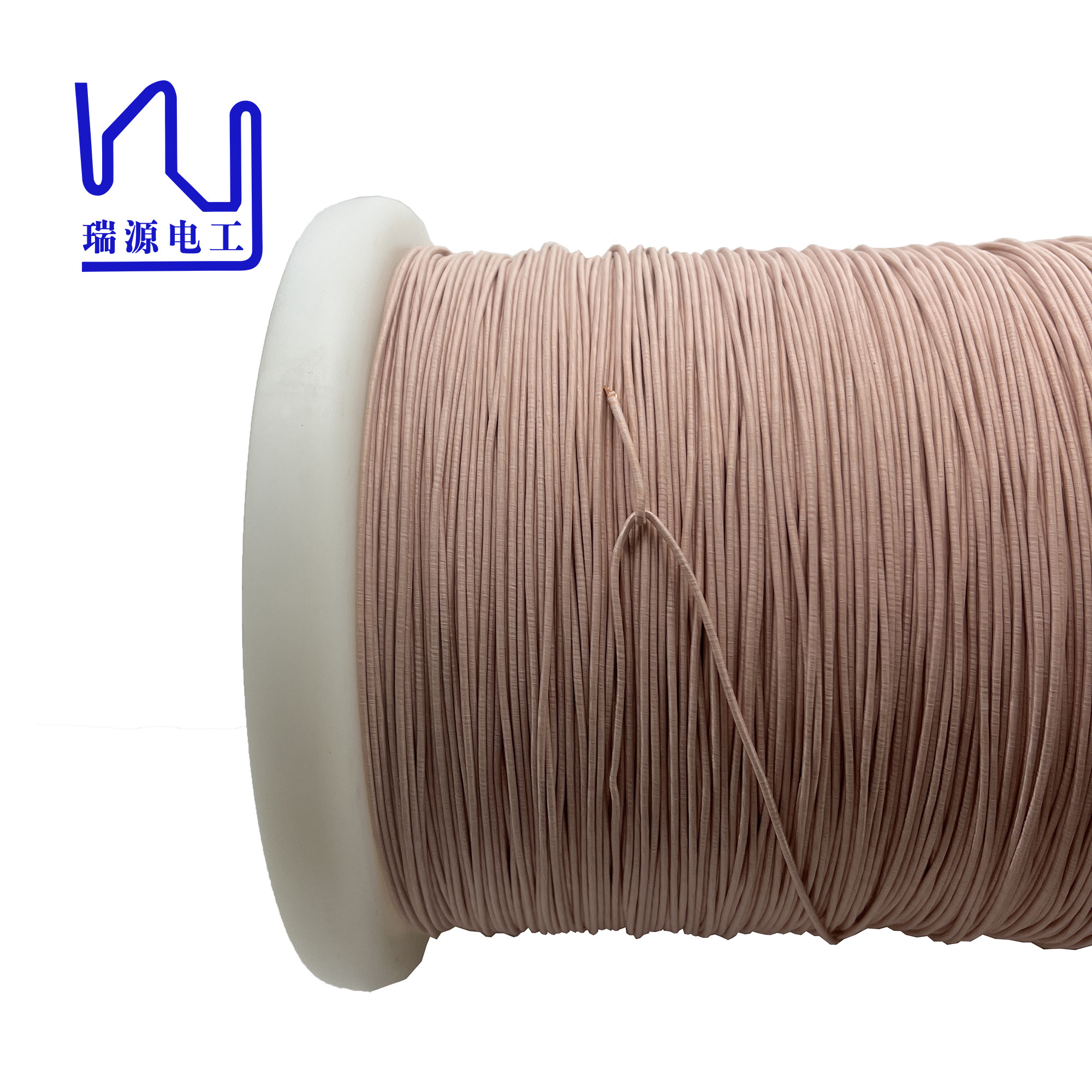

5 x 0.06mm high frequency stranded silk covered litz wire
Silk-covered litz wire has brought revolutionary changes to various industries with its incomparable advantages. The ultra-fine design combined with wire insulation provides flexibility, durability and electrical insulation properties beyond traditional wires.
|
Description Conductor diameter*Strand number |
1 USTC- F 0.06*5 |
|
|
Single wire |
Conductor diameter( mm) | 0.060 |
| Conductor diameter tolerance ( mm) | ±0.003 | |
| Minimal insulation thickness( mm) | 0.006 | |
| Maximal overall diameter ( mm) | 0.098 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 5 |
| Pitch(mm) | 16±2 | |
| Stranding direction | Z | |
|
Insulation layer |
Category | Polyester yarn |
| UL | / | |
| Material specs( mm*mm or D) | 250 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness( mm), mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D ( mm) | 0.28 |
| Max pin holes faults/6m | 5 | |
| Max resistance ( Ω/ Km at20℃) | 139.3 | |
| Mini breakdown voltage (V ) | 1600 | |
| Package | spool | PT-4 |
| Meter per kilogram | 7610 | |
|
Key word:0.06mm / 5 USTC Silk Covered Litz Wire Nylon Wrapped Stranded Copper Wire |
