| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.06mm / 5 USTC Silk Covered Litz Wire Nylon Wrapped Stranded Copper Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.06mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.06mm / 5 USTC Silk Covered Litz Wire Nylon Wrapped Stranded Copper Wire |
| No. Of Strands: | 5 | ||
| Highlight: | 0.06 mm ustc litz wire,5 stranded ustc litz wire,ustc enamelled wire |
||

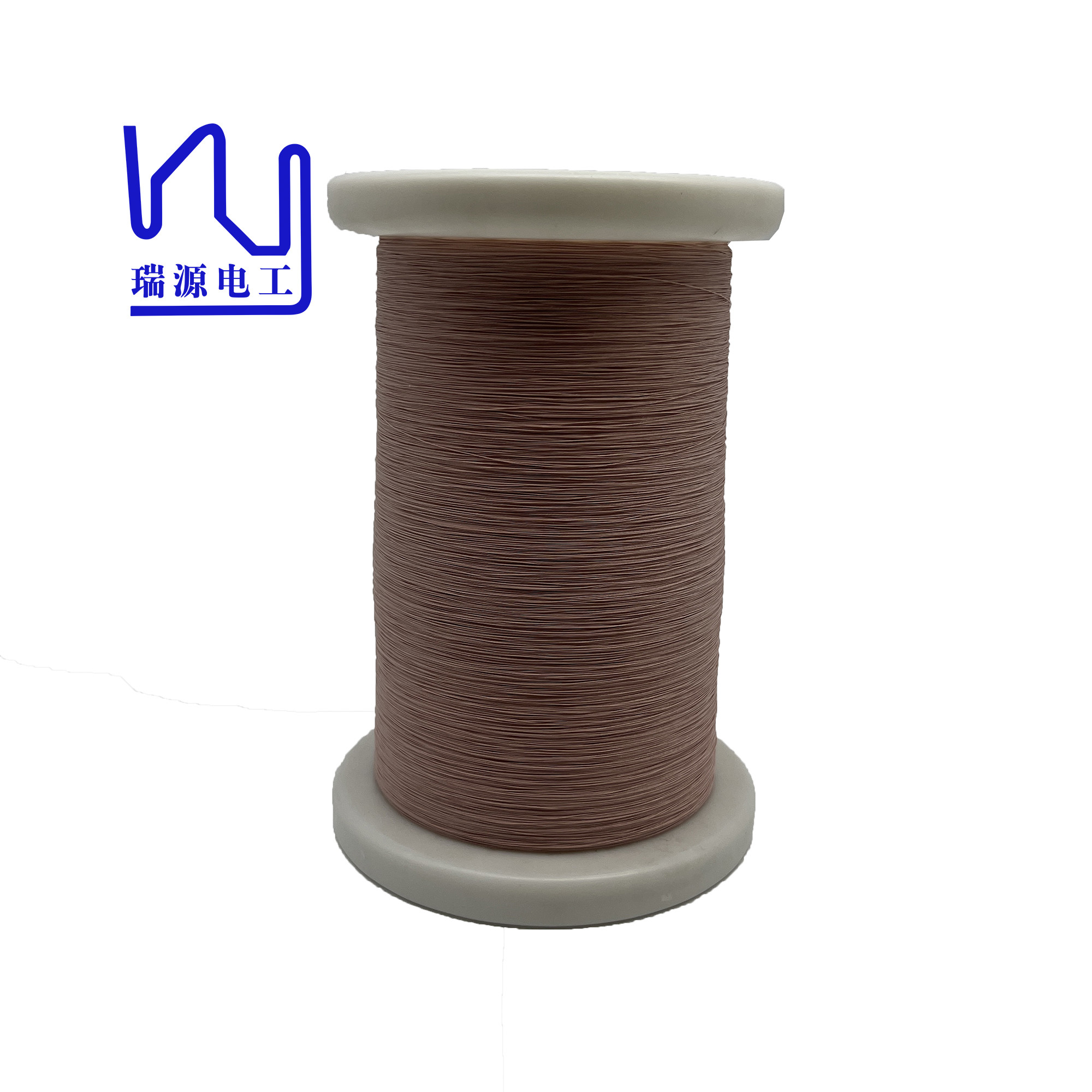

0.06mm / 5 USTC Silk Covered Litz Wire Nylon Wrapped Stranded Copper Wire
Our commitment to catering to the diverse needs of our clients is reflected in the self-adhesive variants of Silk Covered Litz Wire offered by us.
This feature simplifies the installation process, saves valuable time and ensures precise wiring. It is particularly valuable in complex electronic assemblies where precision and convenience are critical.
|
Description Conductor diameter*Strand number |
1 USTC- F 0.06*5 |
|
|
Single wire |
Conductor diameter( mm) | 0.060 |
| Conductor diameter tolerance ( mm) | ±0.003 | |
| Minimal insulation thickness( mm) | 0.006 | |
| Maximal overall diameter ( mm) | 0.098 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 5 |
| Pitch(mm) | 16±2 | |
| Stranding direction | Z | |
|
Insulation layer |
Category | Polyester yarn |
| UL | / | |
| Material specs( mm*mm or D) | 250 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness( mm), mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D ( mm) | 0.28 |
| Max pin holes faults/6m | 5 | |
| Max resistance ( Ω/ Km at20℃) | 139.3 | |
| Mini breakdown voltage (V ) | 1600 | |
| Package | spool | PT-4 |
| Meter per kilogram | 7610 | |
|
Key word:0.06mm / 5 USTC Silk Covered Litz Wire Nylon Wrapped Stranded Copper Wire |
