| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.06 X 5 Silk Covered Insulated Solid Nylon/ployester USTC Litz Copper WireUSTC 0.06mm Silk Covered Litz Wire Twisted Enameled Copper Wire Used For Transformers | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.06mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.06 X 5 Silk Covered Insulated Solid Nylon/ployester USTC Litz Copper WireUSTC 0.06mm Silk Covered Litz Wire Twisted Enameled Copper Wire Used For Transformers |
| No. Of Strands: | 5 | ||
| Highlight: | ustc enamel coated wire,enamel coated wire 0.06 mm,ustc super enamelled copper wire |
||

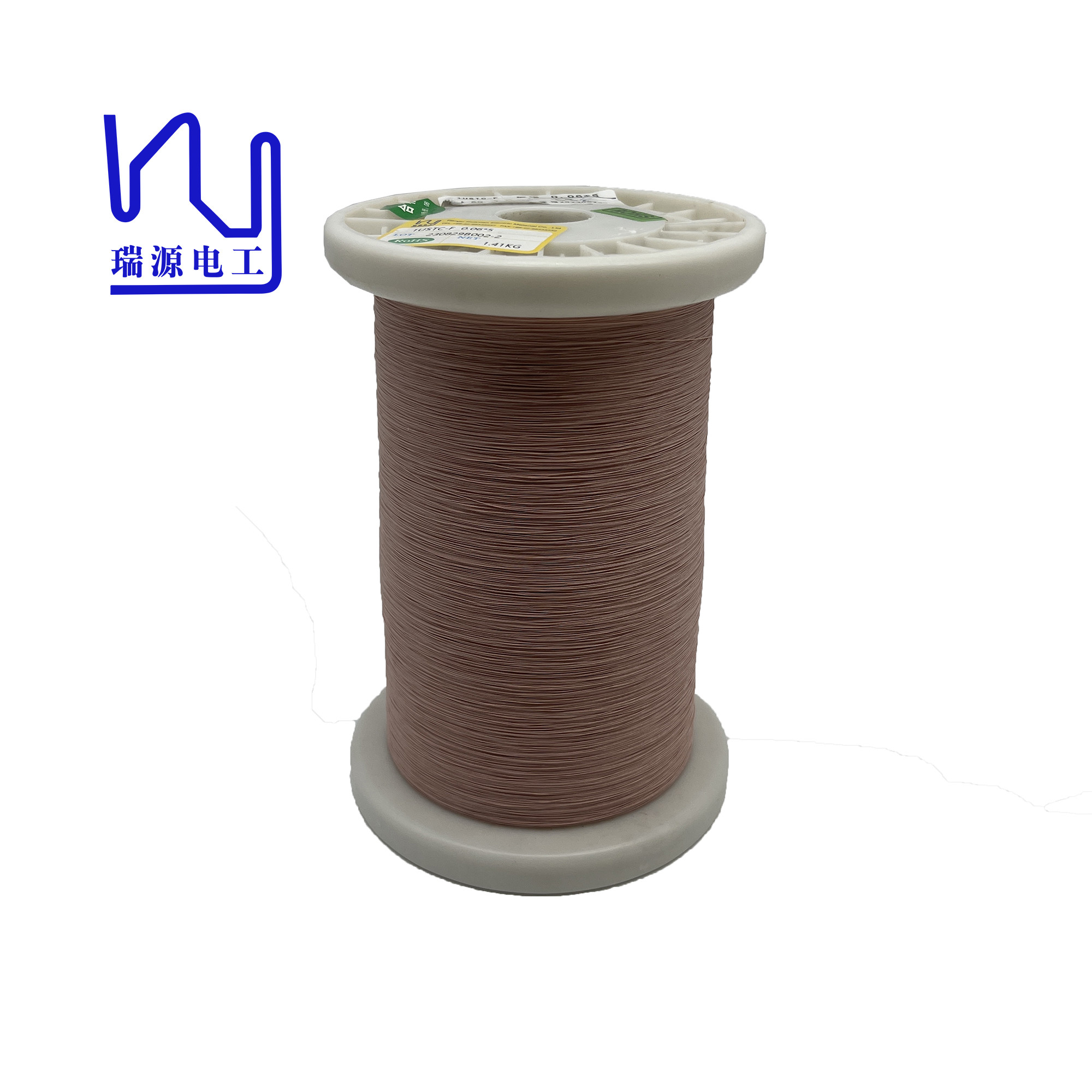

USTC 0.06mm Silk Covered Litz Wire Twisted Enameled Copper Wire Used For Transformers
Automotive manufacturers also recognize the superior qualities of the silk covered litz wire. As the trend toward vehicle electrification continues, the need for robust, efficient wiring solutions is growing exponentially.
The wire's ability to withstand high temperatures, combined with its compact design, makes it ideal for electric vehicle components. It operates reliably in the motor, controller and battery management system, enabling efficient power distribution throughout the vehicle.
Superior conductivity and reduced power loss help improve performance and save energy.
|
Description Conductor diameter*Strand number |
1 USTC- F 0.06*5 |
|
|
Single wire |
Conductor diameter( mm) | 0.060 |
| Conductor diameter tolerance ( mm) | ±0.003 | |
| Minimal insulation thickness( mm) | 0.006 | |
| Maximal overall diameter ( mm) | 0.098 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 5 |
| Pitch(mm) | 16±2 | |
| Stranding direction | Z | |
|
Insulation layer |
Category | Polyester yarn |
| UL | / | |
| Material specs( mm*mm or D) | 250 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness( mm), mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D ( mm) | 0.28 |
| Max pin holes faults/6m | 5 | |
| Max resistance ( Ω/ Km at20℃) | 139.3 | |
| Mini breakdown voltage (V ) | 1600 | |
| Package | spool | PT-4 |
| Meter per kilogram | 7610 | |
|
Key word:USTC 0.06mm Silk Covered Litz Wire Twisted Enameled Copper Wire Used For Transformers |
