| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.06 X 5 Silk Covered Insulated Solid Nylon/ployester USTC Litz Copper Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.06mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.06 X 5 Silk Covered Insulated Solid Nylon/ployester USTC Litz Copper Wire |
| No. Of Strands: | 5 | ||
| Highlight: | nylon ustc litz wire,magnet ustc litz wire,ustc enamel coated copper wire |
||

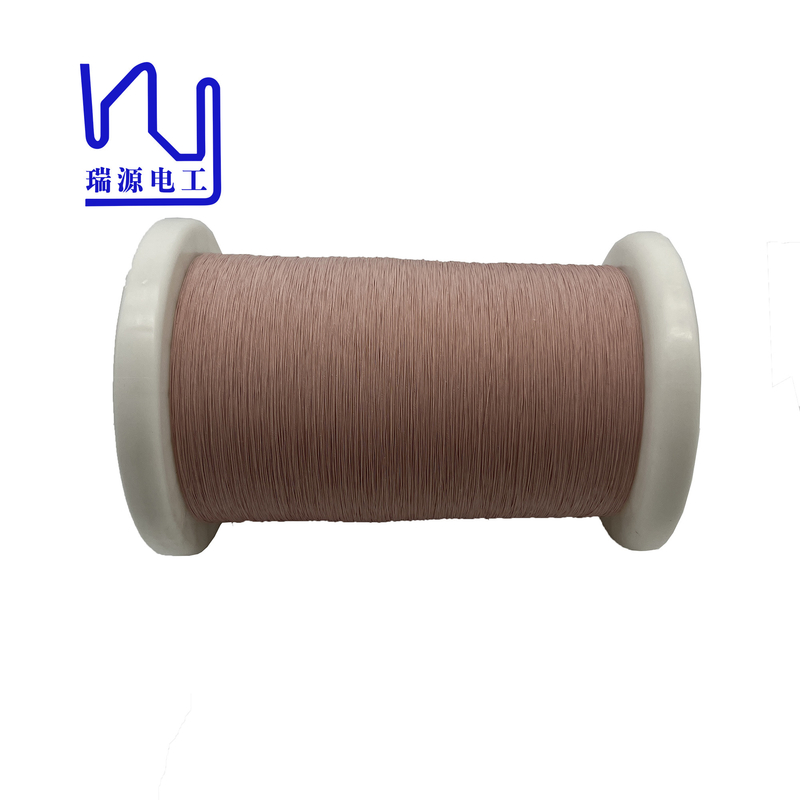

0.06 X 5 Silk Covered Insulated Solid Nylon/ployester USTC Litz Copper Wire
The field of information transmission has greatly benefited from silk-covered litz wires. As the demand for high-quality signal transmission continues to increase, this wire excels in high-frequency applications. Its construction minimizes electromagnetic interference and signal loss, providing reliable data transmission and enhancing the overall performance of communications equipment, audio equipment, and data transmission systems. Reduced skin effect and enhanced current ensure efficient, uninterrupted signal transmission.
|
Description Conductor diameter*Strand number |
1 USTC- F 0 06*5 |
|
|
Single wire |
Conductor diameter( mm) | 0.060 |
| Conductor diameter tolerance ( mm) | ±0.003 | |
| Minimal insulation thickness( mm) | 0.006 | |
| Maximal overall diameter ( mm) | 0.098 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 5 |
| Pitch(mm) | 16±2 | |
| Stranding direction | Z | |
|
Insulation layer |
Category | Polyester yarn |
| UL | / | |
| Material specs( mm*mm or D) | 250 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness( mm), mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D ( mm) | 0.28 |
| Max pin holes faults/6m | 5 | |
| Max resistance ( Ω/ Km at20℃) | 139.3 | |
| Mini breakdown voltage (V ) | 1600 | |
| Package | spool | PT-4 |
| Meter per kilogram | 7610 | |
|
Key word0.06 X 5 Silk Covered Insulated Solid Nylon/ployester USTC Litz Copper Wire |
