| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTCF 0.06mm High Frequency Copper Litz Wire For Transformer Winding | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.06mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 1USTCF 0.06mm High Frequency Copper Litz Wire For Transformer Winding |
| No. Of Strands: | 5 | ||
| Highlight: | 1ustcf copper litz wire,transformer winding copper litz wire,ustc enamel coated magnet wire |
||

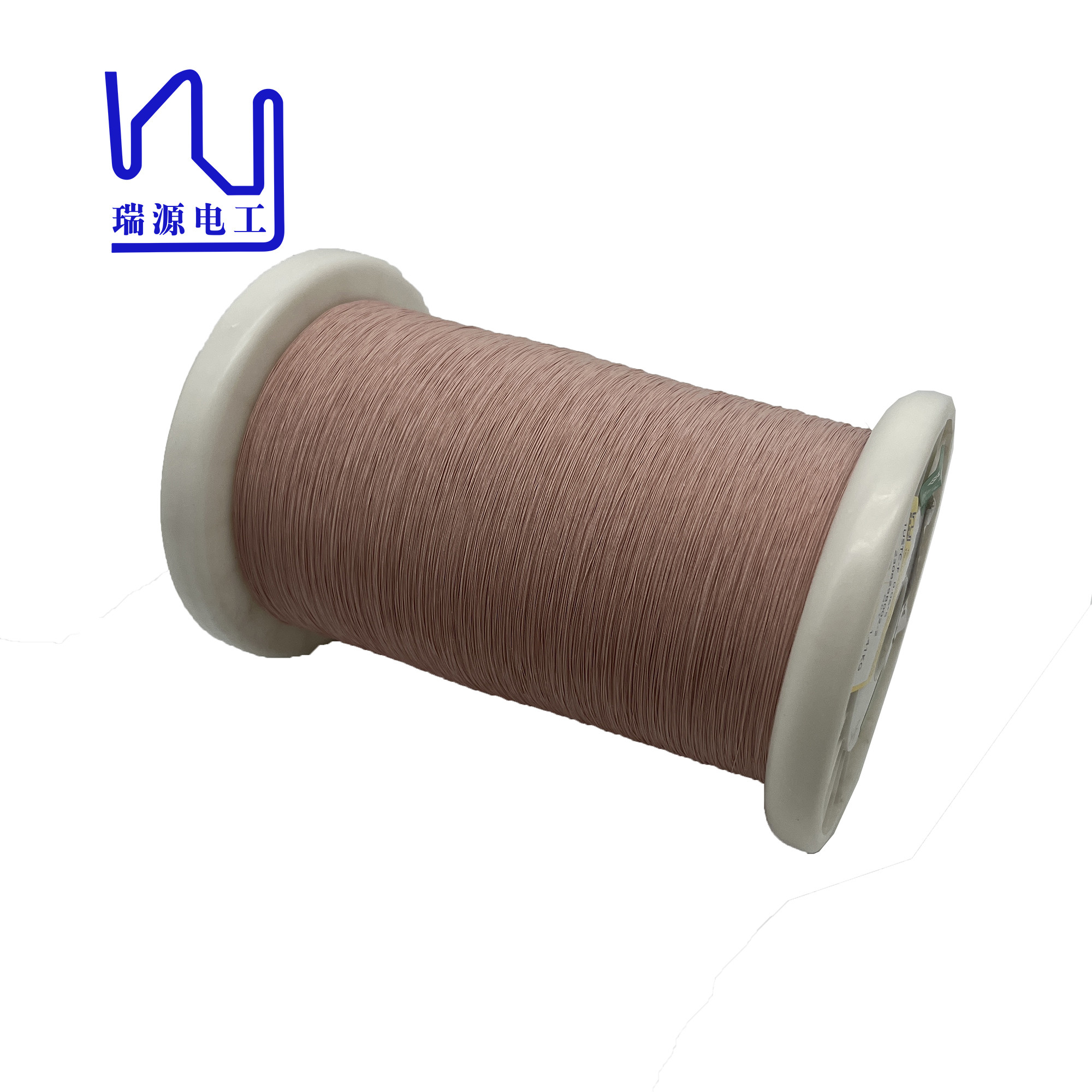

1USTCF 0.06mm High frequency copper litz wire for transformer winding
The advantages of silk-covered litz wire are numerous and impressive. Its unique design sets it apart from traditional wires, offering high flexibility and durability. Silk insulation not only enhances its abrasion resistance, it also provides superior electrical insulation properties, ensuring optimal performance in demanding applications.
The silk covered litz wire ability to maintain its integrity in high-temperature environments and withstand extreme conditions makes it a reliable choice across a variety of industries.
|
Description Conductor diameter*Strand number |
1 USTC- F 0 06*5 |
|
|
Single wire |
Conductor diameter( mm) | 0.060 |
| Conductor diameter tolerance ( mm) | ±0.003 | |
| Minimal insulation thickness( mm) | 0.006 | |
| Maximal overall diameter ( mm) | 0.098 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 5 |
| Pitch(mm) | 16±2 | |
| Stranding direction | Z | |
|
Insulation layer |
Category | Polyester yarn |
| UL | / | |
| Material specs( mm*mm or D) | 250 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness( mm), mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D ( mm) | 0.28 |
| Max pin holes faults/6m | 5 | |
| Max resistance ( Ω/ Km at20℃) | 139.3 | |
| Mini breakdown voltage (V ) | 1600 | |
| Package | spool | PT-4 |
| Meter per kilogram | 7610 | |
|
Key word |
1USTCF 0.06mm High frequency copper litz wire for transformer winding |
||
