| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom USTC White Silk Covered Round Enameled Copper Litz WireUSTC Class155/180 0.06mm*5 HF Copper Stranded Wire Silk Covered Litz | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.06mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC Class155/180 0.06mm*5 HF Copper Stranded Wire Silk Covered Litz |
| No. Of Strands: | 5 | ||
| Highlight: | class 155 ustc litz wire,soldering ustc litz wire,ustc soldering magnet wire |
||

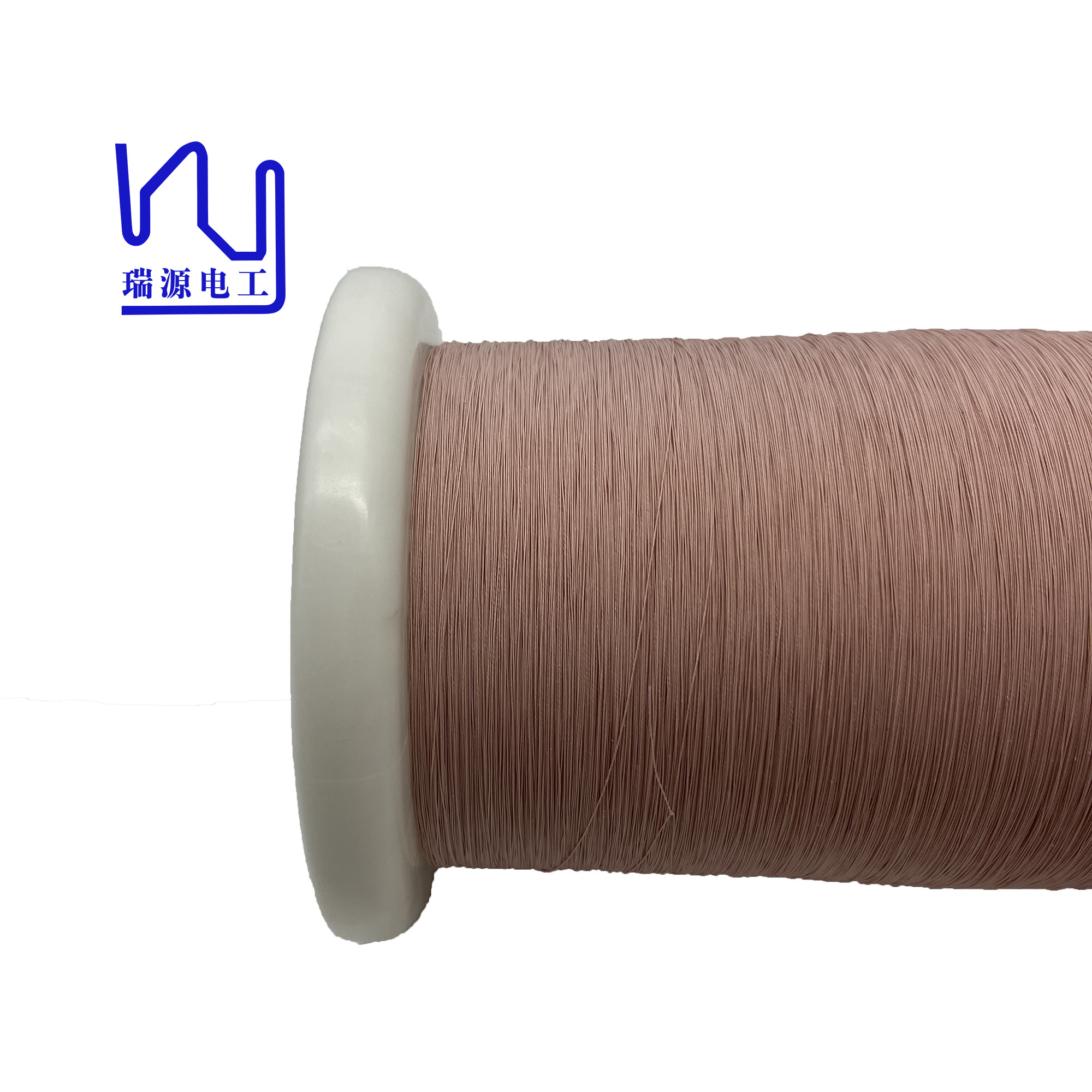

USTC Class155/180 0.06mm*5 HF Copper Stranded Wire Silk Covered Litz
Featuring solderable copper conductors, this custom silk covered litz wire consists of five strand of 0.06mm superthin enamel copper wire. It's rated for temperatures up to 155 degrees and 180 degrees, providing superior performance in challenging environments.
Additionally, we offer self-adhesive variations of silk-covered litz wire for added convenience.
|
Description Conductor diameter*Strand number |
1 USTC- F 0 06*5 |
|
|
Single wire |
Conductor diameter( mm) | 0.060 |
| Conductor diameter tolerance ( mm) | ±0.003 | |
| Minimal insulation thickness( mm) | 0.006 | |
| Maximal overall diameter ( mm) | 0.098 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 5 |
| Pitch(mm) | 16±2 | |
| Stranding direction | Z | |
|
Insulation layer |
Category | Polyester yarn |
| UL | / | |
| Material specs( mm*mm or D) | 250 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness( mm), mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D ( mm) | 0.28 |
| Max pin holes faults/6m | 5 | |
| Max resistance ( Ω/ Km at20℃) | 139.3 | |
| Mini breakdown voltage (V ) | 1600 | |
| Package | spool | PT-4 |
| Meter per kilogram | 7610 | |
|
Key word |
USTC Class155/180 0.06mm*5 HF Copper Stranded Wire Silk Covered Litz |
||
