| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom USTC White Silk Covered Round Enameled Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom USTC White Silk Covered Round Enameled Copper Litz Wire |
| No. Of Strands: | 330 | ||
| Highlight: | 0.05mm self bonding copper wire,self bonding varnished copper wire,ustc self bonding copper wire |
||

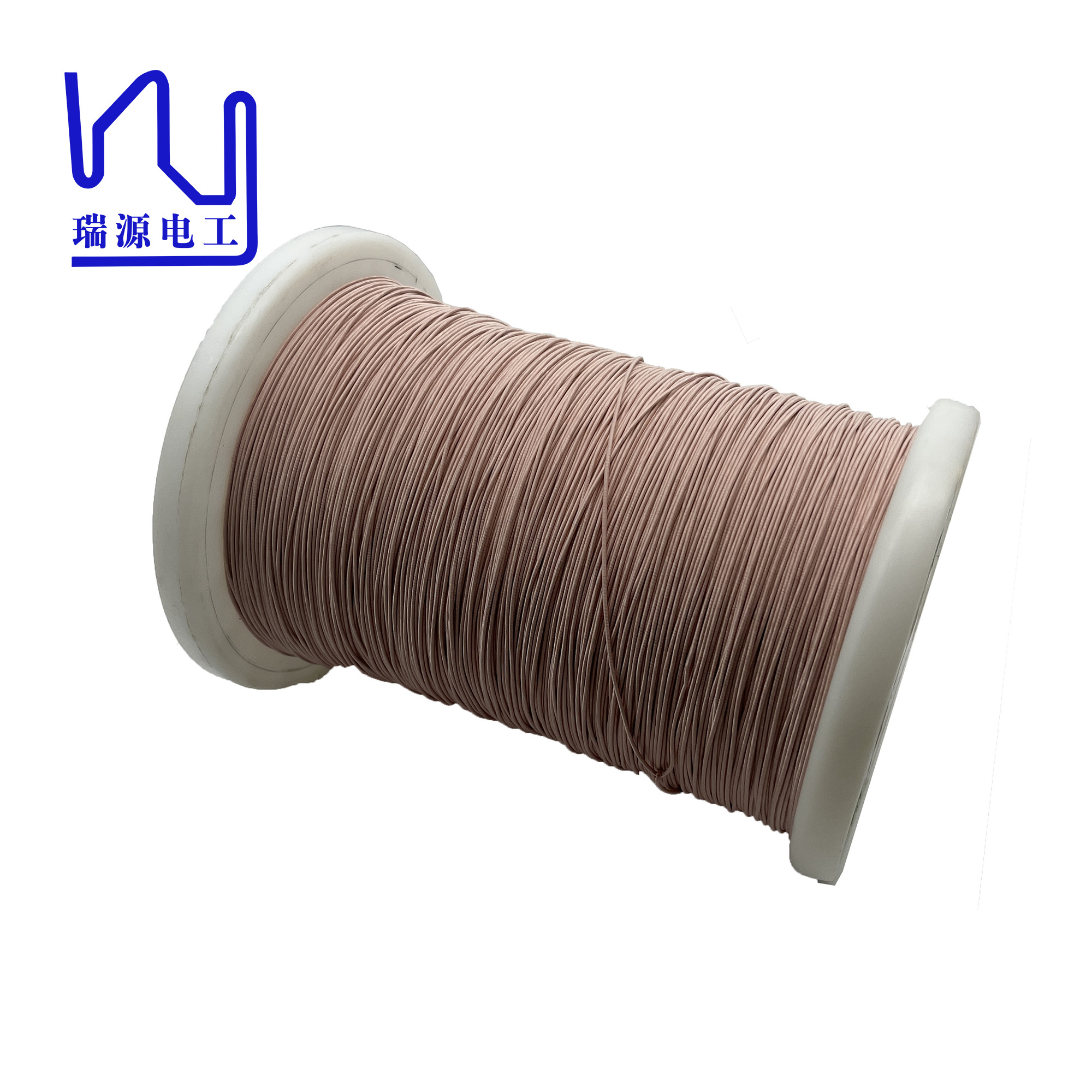

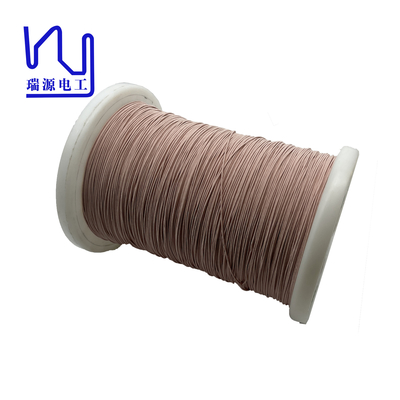

Custom USTC White Silk Covered Round Enameled Copper Litz Wire
Silk covered Litz wire is a high-quality wire with reliable quality, superior performance and wide range of uses. It adopts the design of ultra-fine enameled copper wire, stranding process and covering layer, making it highly flexible and tensile strength, and can provide reliable current conduction and external protection in harsh environments.
This wire is widely used in electronic equipment manufacturing, communication equipment, automobile manufacturing, aerospace and other industries, and has become an indispensable part of the industrial field.
Whether you are a novice or a professional, wire-covered copper litz wire can meet your needs and provide excellent performance.
|
Description Conductor diameter*Strand number |
1USTC-F 0.05*330 |
|
|
Single wire |
Conductor diameter(mm) | 0.050 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.005 | |
| Maximal overall diameter (mm) | 0.086 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 66*5 |
| Pitch(mm) | 29±5 | |
| Stranding direction | Z | |
|
Insulation layer |
Category | Polyester yarn |
| UL | / | |
| Material specs(mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D (mm) | 1.55 |
| Max pin holes faults/6m | 36 | |
| Max resistance (Ω/Km at20℃) | 31.03 | |
| Mini breakdown voltage (V ) | 1300 | |
| Meter per kilogram | 166 | |
|
Key word |
Custom USTC White Silk Covered Round Enameled Copper Litz Wire |
||
