| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | UL Certification 44AWG/0.05mm USTC Wire HF Silk Covered Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | UL Certification 44AWG/0.05mm USTC Wire HF Silk Covered Litz Wire |
| No. Of Strands: | 330 | ||
| Highlight: | insulated ustc litz wire,44 awg ustc litz wire,ustc enamel insulated wire |
||

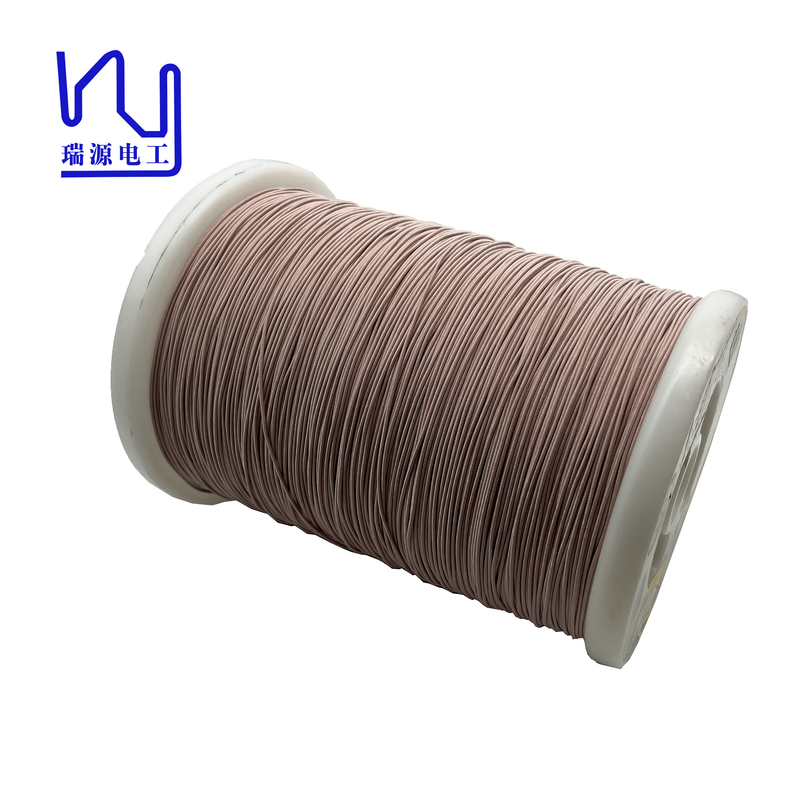

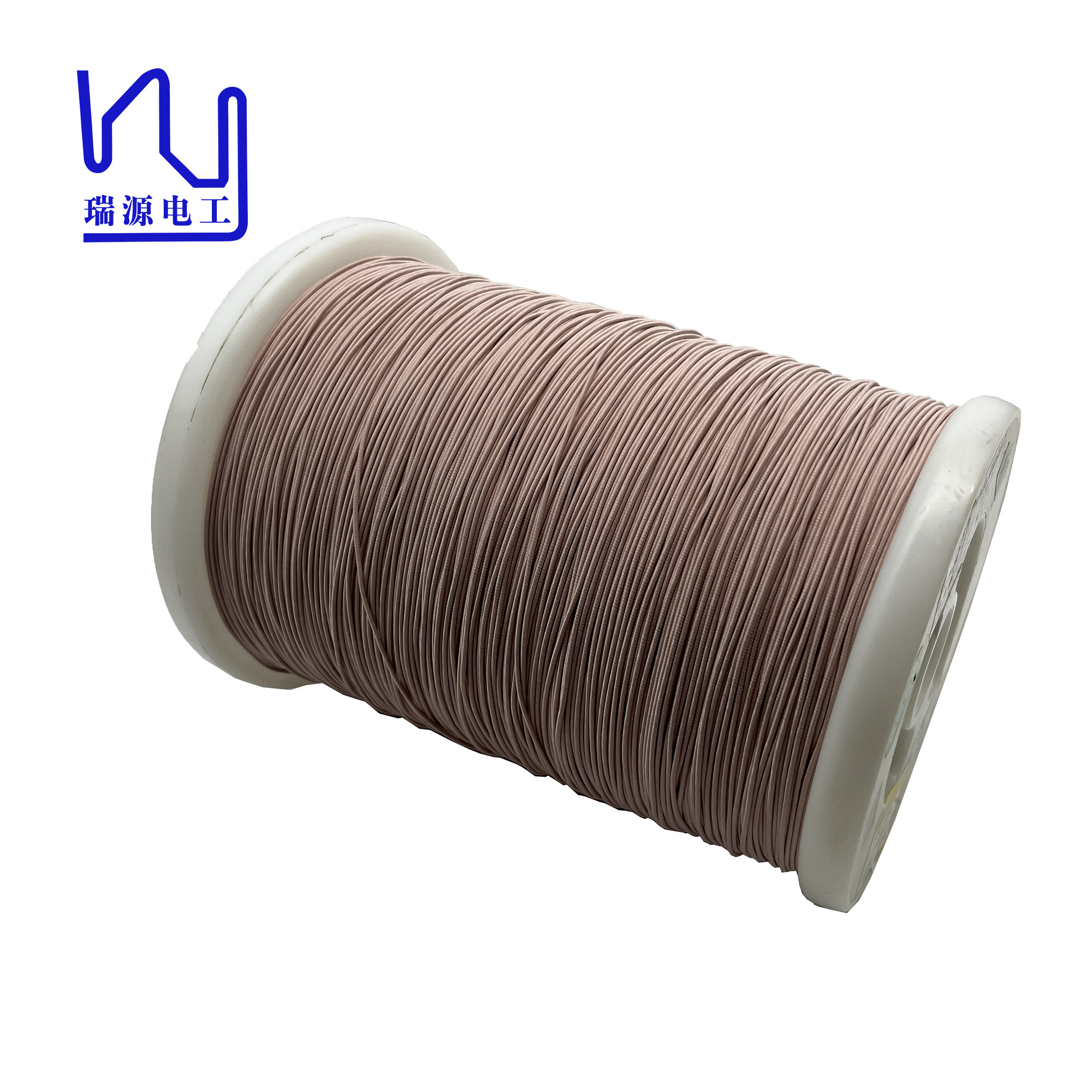

UL Certification 44AWG/0.05mm USTC Wire HF Silk Covered Litz Wire
Due to its characteristics of ultra-fine enameled copper wire, the litz wire is widely used in the internal wiring and circuit connections of precision instruments.
The high flexibility and tensile strength of the litz wire allows it to easily adapt to different environments and wiring requirements.
The wear-resistant and cut-resistant performance of the covering layer protects the safety and reliability of the wires and ensures the normal operation of the equipment.
|
Description Conductor diameter*Strand number |
1USTC-F 0.05*330 |
|
|
Single wire |
Conductor diameter(mm) | 0.050 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.005 | |
| Maximal overall diameter (mm) | 0.086 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 66*5 |
| Pitch(mm) | 29±5 | |
| Stranding direction | Z | |
|
Insulation layer |
Category | Polyester yarn |
| UL | / | |
| Material specs(mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D (mm) | 1.55 |
| Max pin holes faults/6m | 36 | |
| Max resistance (Ω/Km at20℃) | 31.03 | |
| Mini breakdown voltage (V ) | 1300 | |
| Meter per kilogram | 166 | |
|
Key word |
UL Certification 44AWG/0.05mm USTC Wire HF Silk Covered Litz Wire |
||
