| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom 44AWG Insulated Copper Enameled Stranded Wire HF Silk Covered Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom 44AWG Insulated Copper Enameled Stranded Wire HF Silk Covered Litz Wire |
| No. Of Strands: | 330 | ||
| Highlight: | 44awg magnet wire coating,44awg enameled copper round wire,ustc enameled copper round wire |
||

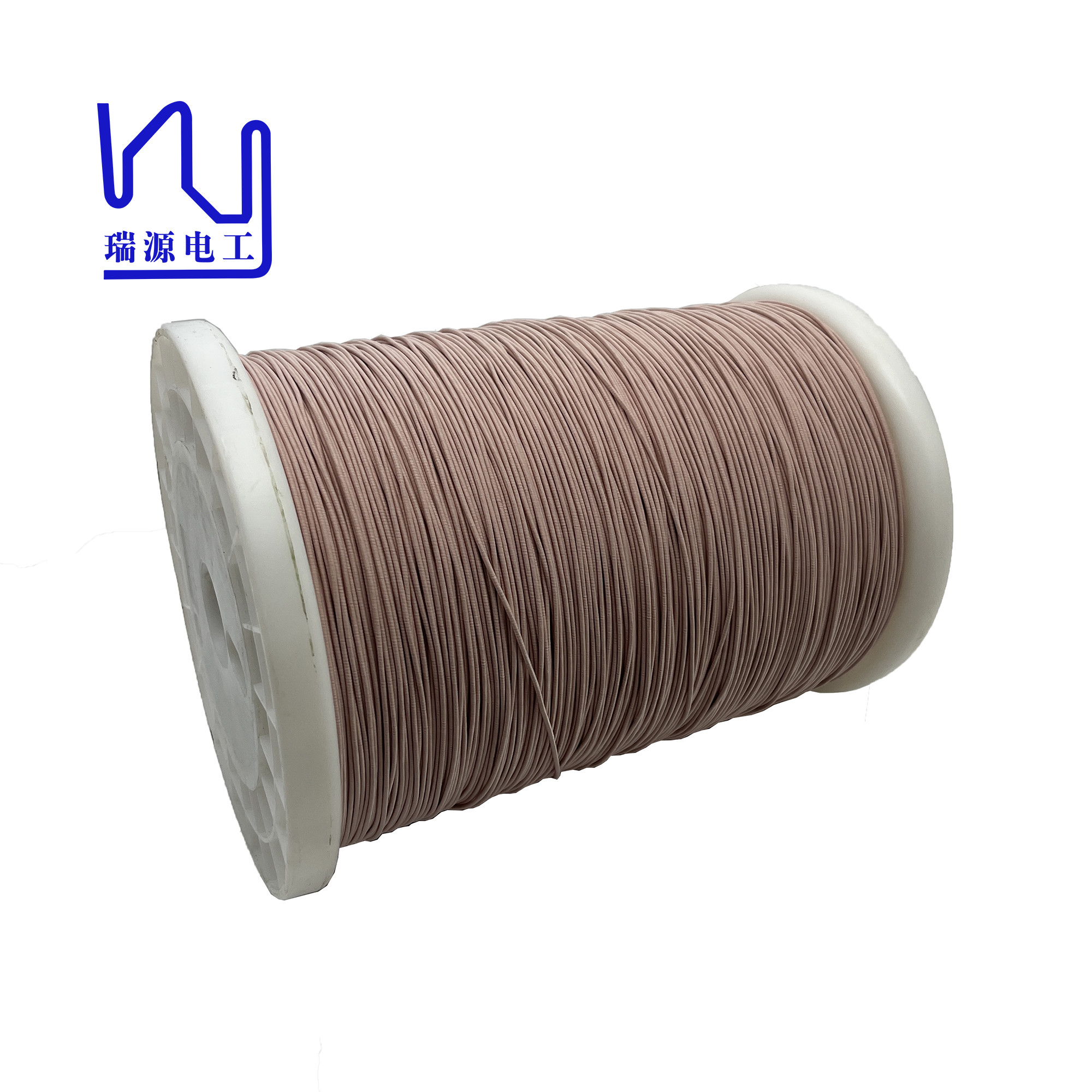

Custom 44AWG Insulated Copper Enameled Stranded Wire HF Silk Covered Litz Wire
Silk covered litz wire has a wide range of uses in industry. It plays a key role in electronic equipment manufacturing, communication equipment, automobile manufacturing, aerospace and other fields.
Due to its characteristics of ultra-fine enameled copper wire, the litz wire is widely used in the internal wiring and circuit connections of precision instruments. The high flexibility and tensile strength of the litz wire allows it to easily adapt to different environments and wiring requirements.
|
Description Conductor diameter*Strand number |
1USTC-F 0.05*330 |
|
|
Single wire |
Conductor diameter(mm) | 0.050 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.005 | |
| Maximal overall diameter (mm) | 0.086 | |
| Thermal Class (℃) | 155 | |
|
Strand Composition |
Strand number | 66*5 |
| Pitch(mm) | 29±5 | |
| Stranding direction | Z | |
|
Insulation layer |
Category | Polyester yarn |
| UL | / | |
| Material specs(mm*mm or D) | 300 | |
| Times of Wrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0.02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D (mm) | 1.55 |
| Max pin holes faults/6m | 36 | |
| Max resistance (Ω/Km at20℃) | 31.03 | |
| Mini breakdown voltage (V ) | 1300 | |
| Meter per kilogram | 166 | |
|
Key word |
Custom 44AWG Insulated Copper Enameled Stranded Wire HF Silk Covered Litz Wire |
||
